Splice box - FOC-FDX20-FR19-STD12-OM2-PT9
1145398

Splice box, type: 19" rack patch module, degree of protection: IP20, material: Sheet steel, connection method: Splicing, housing size: 1, color: light grey RAL 7035

This product needs further products for operation. Mandatory Accessories

Product Details

FDX 20 series 19" splice boxes, 1 RU, with removable drawer, for 12x ST duplex OM2, metal, completely ready to splice (correctly pre-mounted: 12 ST duplex couplings, 12 filler plugs, 24 pigtails, 2 cassettes, 2 combs, 1 cassette cover).
4 cable entries (rear) incl. 2 Pg16 cable glands, 2 sealing caps, and 19" mounting set.

Type 19" rack patch module
Product type Network distributor box
Connection profile ST-Duplex
No. of cable outlets 4
No. of conductors 24
Number of module slots 12
Number of slots 24
Type of the screw connection 2x Pg16
Protective cover yes
Attenuation ≤ 0.3 dB
Connection technology
Connection method Splicing
Width 480 mm
Height 44.45 mm
Depth 280 mm
Mechanical characteristics
Ferrule diameter 2.50 mm
Color light grey RAL 7035
Flammability rating according to UL 94 V0
Ferrule material Zirconia ceramics
Housing surface material Powder-coated, gray
Housing material Sheet steel
Insertion/withdrawal cycles ≥ 500
Cable structure
Cable type Fiberglass
Cable type Loose Tube
Cable structure semi-loose compact wires (STB)
External cable diameter 7 mm ... 12 mm
Individual wire diameter 900 µm
Single wire, color Color coded
Whip length
Whip length 750 mm
Ambient conditions
Halogen-free yes
Flame resistance yes
FO cable
Number of fibers 24
Fiber GOF
Fiber type Multi-mode 50/125 µm fiberglass
Attenuation ≤ 0.3 dB (at 850 nm / 1300 nm)
Return Loss ≥ 35 dB (at 850 nm / 1300 nm)
Transmission medium FO
Mechanical data
Type of the screw connection 2x Pg16
Attenuation ≤ 0.3 dB
Ambient conditions
Degree of protection IP20
Ambient temperature (operation) -40 °C ... 85 °C
Ambient temperature (storage/transport) -40 °C ... 85 °C
Ambient temperature (assembly) 0 °C ... 50 °C
Resistance to UV radiation yes
Resistance to UV radiation yes
Flame resistance yes
Mounting type Screw mounting: M6 x 4
Item number 1145398
Packing unit 1 pc
Minimum order quantity 1 pc
Sales Key A08
Product Key ABNAIB
GTIN 4063151131791
Weight per Piece (including packing) 3,111.7 g
Weight per Piece (excluding packing) 3,111.7 g
Customs tariff number 85367000
Country of origin DE

ECLASS

ECLASS-9.0 27440210
ECLASS-10.0.1 19170113
ECLASS-11.0 19170113

ETIM

ETIM 8.0 EC002699

UNSPSC

UNSPSC 21.0 43223300
China RoHS Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Compatible Products

  1. Shrink splice protection FOC-SHRINKSPLICE-PROTECT - 1019676

  2. Crimp splice protection FOC-CRIMPSPLICE-PROTECT - 1019678

  1. FO patch cable FOC-ST:PA-ST:PA-OM2:D01/1 - 1115560

  2. FO patch cable FOC-ST:PA-SC:PA-OM2:D01/1 - 1115574

  3. Fiber optic cable FOC-LC:PA-ST:PA-OM2:D01/1 - 1115588

  4. FO patch cable FOC-ST:PA-ST:PA-OM2:D01/2 - 1115557

  5. FO patch cable FOC-ST:PA-SC:PA-OM2:D01/2 - 1115573

  6. Fiber optic cable FOC-LC:PA-ST:PA-OM2:D01/2 - 1115587

  7. FO patch cable FOC-ST:PA-ST:PA-OM2:D01/5 - 1115554

  8. FO patch cable FOC-ST:PA-SC:PA-OM2:D01/5 - 1115570

  9. FO patch cable FOC-LC:PA-ST:PA-OM2:D01/5 - 1115584

  10. Fiber optic cable FOC-PT9:SC-OM2/2.5 - 1208109

  11. Fiber optic cable FOC-PT9:ST-OM2/2.5 - 1208118

  12. FO cable FOC-OE-OE-GL-U-OM2-12/... - 1286222

  13. FO cable FOC-OE-OE-GL-U-OM2-24/... - 1286215

  14. Fiber optic coupling FOC-ADAPTER:STD/SCD-MM - 1208096

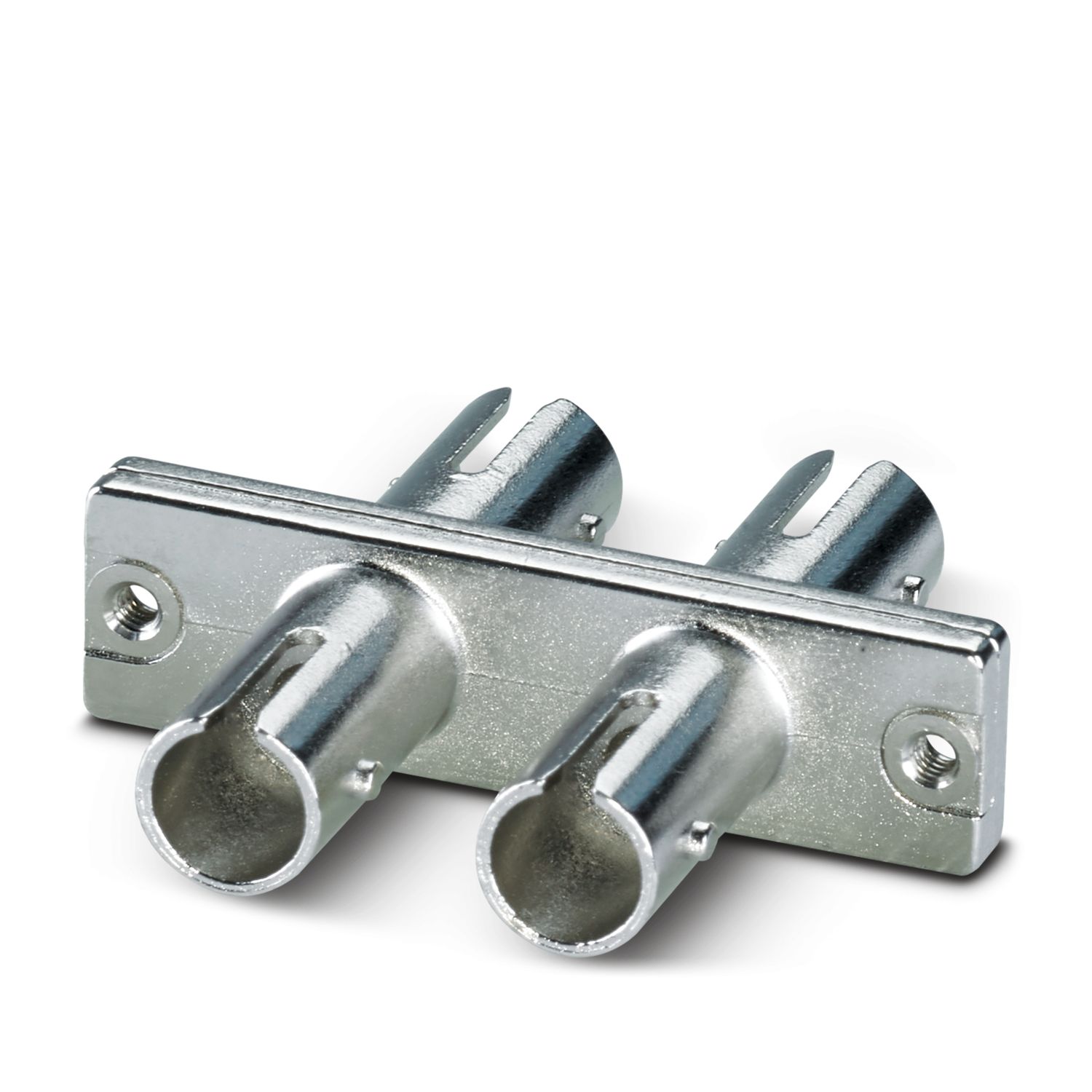

  15. Fiber optic coupling FOC-ADAPTER:STD/STD-MM - 1208094

Your advantages

removable drawer with quick release
easy to remove drawer
High-quality individual components
100% control
fully prepared ready to splice
4 cable entries including 2 cable glands
Subsequent extension to 24x ST duplex possible
including 19" mounting set
Easy to install
