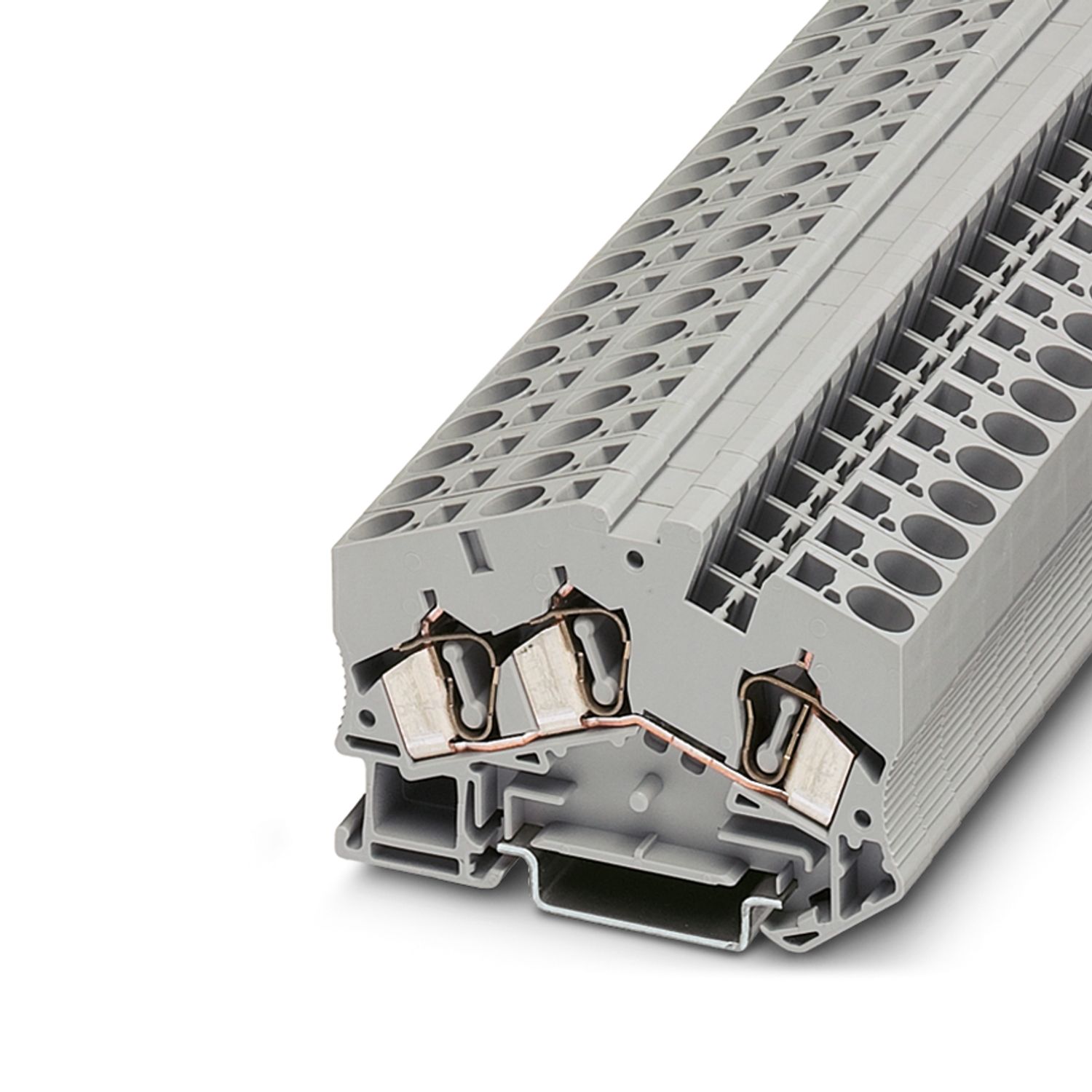

STS 6-TWIN - Feed-through terminal block

3038150

Feed-through terminal block, nom. voltage: 800 V, nominal current: 41 A, number of connections: 3, connection method: Spring-cage connection, Rated cross section: 6 mm², 1 level, cross section: 0.2 mm² - 10 mm², mounting type: NS 35/7,5, NS 35/15, color: gray

Product details

Product type	Multi-conductor terminal block
Product family	STS
Number of connections	3
Number of rows	1
Potentials	1
Insulation characteristics
Overvoltage category	III
Degree of pollution	3

Rated surge voltage	8 kV
Maximum power dissipation for nominal condition	1.31 W

Number of connections per level	3
Nominal cross section	6 mm²
1 level
Stripping length	12 mm
Internal cylindrical gage	A5
Connection in acc. with standard	IEC 60947-7-1
Conductor cross section rigid	0.2 mm² ... 10 mm²
Cross section AWG	24 ... 8 (converted acc. to IEC)
Conductor cross section flexible	0.2 mm² ... 6 mm²
Conductor cross section, flexible [AWG]	24 ... 10 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)	0.25 mm² ... 6 mm²
Flexible conductor cross section (ferrule with plastic sleeve)	0.25 mm² ... 6 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve	0.5 mm² ... 1.5 mm²
Nominal current	41 A
Maximum load current	57 A (with 10 mm² conductor cross section)
Nominal voltage	800 V
Nominal cross section	6 mm²

Width	8.2 mm
End cover width	2.2 mm
Height	70 mm
Depth on NS 35/7,5	50 mm
Depth on NS 35/15	57.5 mm

Color	gray (RAL 7042)
Flammability rating according to UL 94	V0
Insulating material group	I
Insulating material	PA
Static insulating material application in cold	-60 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))	125 °C
Relative insulation material temperature index (Elec., UL 746 B)	130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26	HL 1 - HL 3
Calorimetric heat release NFPA 130 (ASTM E 1354)	27,5 MJ/kg
Surface flammability NFPA 130 (ASTM E 162)	passed
Specific optical density of smoke NFPA 130 (ASTM E 662)	passed
Smoke gas toxicity NFPA 130 (SMP 800C)	passed

Surge voltage test
Test voltage setpoint	9.8 kV
Result	Test passed
Temperature-rise test
Requirement temperature-rise test	Increase in temperature ≤ 45 K
Result	Test passed
Short-time withstand current 6 mm²	0.72 kA
Short-time withstand current 10 mm²	1.2 kA
Result	Test passed
Power-frequency withstand voltage
Test voltage setpoint	2.2 kV
Result	Test passed

Mechanical data
Open side panel	Yes

Mechanical strength
Result	Test passed
Attachment on the carrier
DIN rail/fixing support	NS 35
Test force setpoint	5 N
Result	Test passed
Test for conductor damage and slackening
Rotation speed	10 rpm
Revolutions	135
Conductor cross section/weight	0.2 mm² / 0.3 kg
	6 mm² / 1.4 kg
	10 mm² / 2 kg
Result	Test passed

Aging
Temperature cycles	192
Result	Test passed
Needle-flame test
Time of exposure	30 s
Result	Test passed
Oscillation/broadband noise
Specification	DIN EN 50155 (VDE 0115-200):2008-03
Spectrum	Long life test category 2, bogie-mounted
Frequency	f₁ = 5 Hz to f₂ = 250 Hz
ASD level	6.12 (m/s²)²/Hz
Acceleration	3.12g
Test duration per axis	5 h
Test directions	X-, Y- and Z-axis
Result	Test passed
Shocks
Specification	DIN EN 50155 (VDE 0115-200):2008-03
Pulse shape	Half-sine
Acceleration	30g
Shock duration	18 ms
Number of shocks per direction	3
Test directions	X-, Y- and Z-axis (pos. and neg.)
Result	Test passed
Ambient conditions
Ambient temperature (operation)	-60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.)
Ambient temperature (storage/transport)	-25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly)	-5 °C ... 70 °C
Ambient temperature (actuation)	-5 °C ... 70 °C
Permissible humidity (operation)	20 % ... 90 %
Permissible humidity (storage/transport)	30 % ... 70 %

Connection in acc. with standard	IEC 60947-7-1

Mounting type	NS 35/7,5
	NS 35/15

Commercial data

Item number	3038150
Packing unit	50 pc
Minimum order quantity	50 pc
Sales key	BE02
Product key	BE2112
GTIN	4017918928971
Weight per piece (including packing)	20.318 g
Weight per piece (excluding packing)	20.318 g
Customs tariff number	85369010
Country of origin	PL

Classifications

Approvals

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG
Use group B
	600 V	50 A	24 - 8
Use group C
	600 V	50 A	24 - 8

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG
Use group B
	600 V	50 A	24 - 8
Use group C
	600 V	50 A	24 - 8

Environmental product compliance

Compatible products

Accessories

Your advantages

Cross connection to adjacent feed-through terminal blocks with the consistent FBS ... plug-in bridge system

Same shape and pitch as the feed-through terminal blocks

EU RoHS
Fulfills EU RoHS substance requirements	Yes (No exemptions)
China RoHS
Environment friendly use period (EFUP)	EFUP-E No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%

Automate

Connect

Mark, assemble, and install

Supply, charge, and protect

Switch, Measure and Monitor

STS 6-TWIN - Feed-through terminal block

3038150

Product details

ECLASS

ETIM

UNSPSC

CSA

IECEE CB Scheme

EAC

LR

NK

ABS

cULus Recognized

DNV

EAC

Compatible products

Your advantages

Automate

Connect

Mark, assemble, and install

Supply, charge, and protect

Switch, Measure and Monitor

STS 6-TWIN - Feed-through terminal block 3038150

Product details

ECLASS

ETIM

UNSPSC

Compatible products

FBS 2-8 - Plug-in bridge 3030284

FBS 3-8 - Plug-in bridge 3030297

FBS 4-8 - Plug-in bridge 3030307

FBS 5-8 - Plug-in bridge 3030310

FBS 10-8 - Plug-in bridge 3030323

FBS 6-8 - Plug-in bridge 3032470

FBS 2-8 CT - Plug-in bridge 3033830

FBS 3-8 CT - Plug-in bridge 3033831

FBS 4-8 CT - Plug-in bridge 3033832

FBS 10-8 CT - Plug-in bridge 3033833

FBS 2-8 BU - Plug-in bridge 3032567

FBS 3-8 BU - Plug-in bridge 3032570

FBS 4-8 BU - Plug-in bridge 3032583

FBS 5-8 BU - Plug-in bridge 3032596

FBS 6-8 BU - Plug-in bridge 3032677

FBS 10-8 BU - Plug-in bridge 3032606

FBS 2-8 GY - Plug-in bridge 3032621

FBS 3-8 GY - Plug-in bridge 3032622

FBS 4-8 GY - Plug-in bridge 3032635

FBS 5-8 GY - Plug-in bridge 3032648

FBS 6-8 GY - Plug-in bridge 3032664

FBS 10-8 GY - Plug-in bridge 3032651

FBSRH 2-8 - Short-circuit connector 3033802

FBSRH 3-8 - Short-circuit connector 3033803

FBSRH 4-8 - Short-circuit connector 3033804

FBSR 2-8 - Plug-in bridge 3033808

FBSR 3-8 - Plug-in bridge 3001597

FBSR 4-8 - Plug-in bridge 3000585

FBSR 5-8 - Plug-in bridge 3033809

FBSR 10-8 - Plug-in bridge 3001599

SB-MER 2-8 - Bridge bar 3000587

SB-MER 3-8 - Bridge bar 3000588

SB-MER 4-8 - Bridge bar 3000589

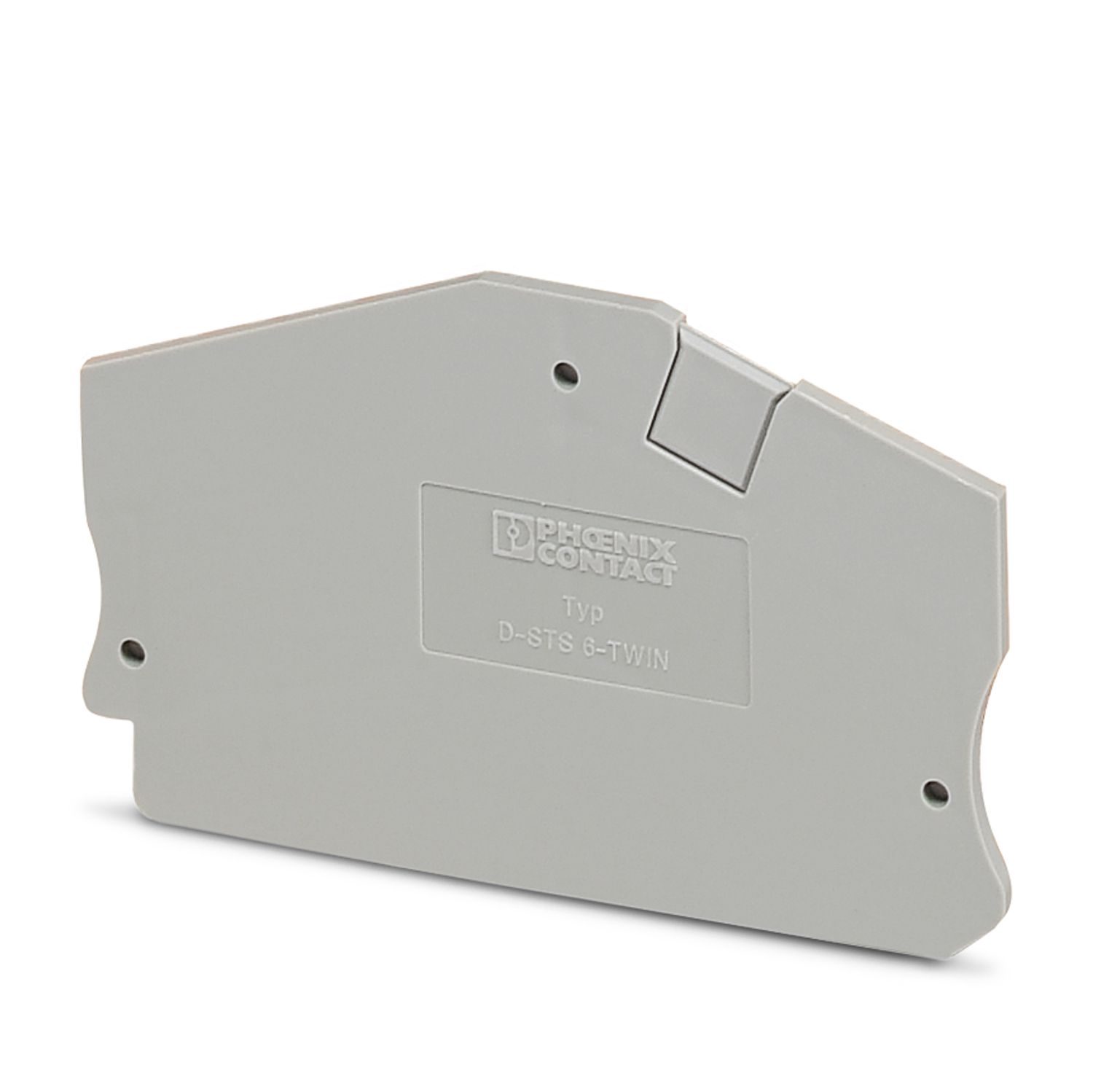

D-STS 6-TWIN - End cover 3038202
