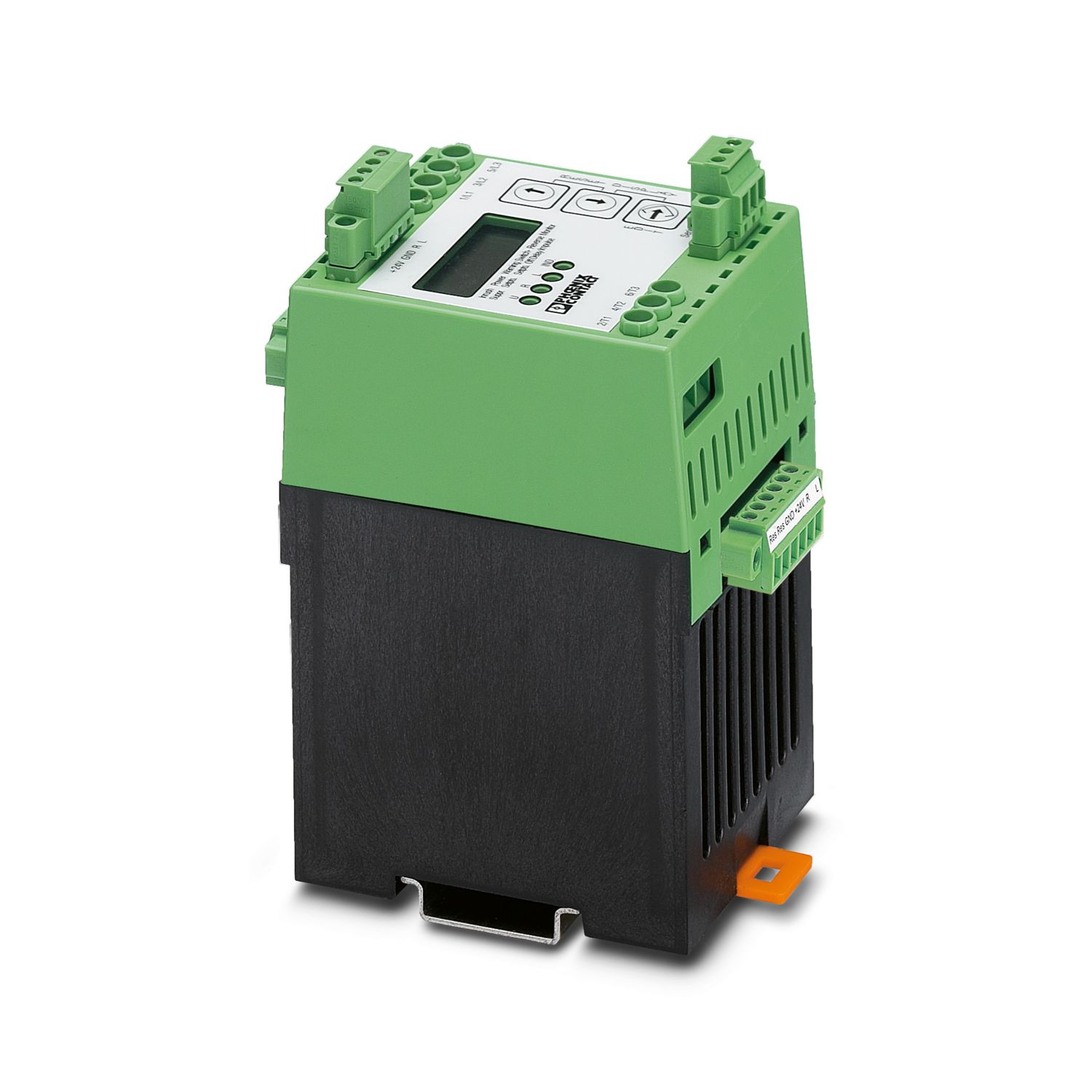

EMM W3/ 5-500 - Motor management - 2963556

Product properties

Product type	Electronic motor manager
Operating mode	100% operating factor

Electrical properties

Number of phases	3
Mains type	3-phase
Test voltage input/output	2.5 kV
Supply
Input name	Device supply
Nominal supply voltage	24 V DC
Supply voltage range with reference to U_VN	0.8 ... 1.2
Quiescent current	80 mA AC
Current consumption	80 mA
Protective circuit	Reverse polarity protection; Series polarity protection diode
Protective circuit		Surge protection
Operating voltage display	Green LED
Error indication	Red LED
Status display	LED (yellow)
Supply
Input name	Supply voltage for 2 A digital outputs
Nominal supply voltage	24 V DC ±20 %
Nominal input voltage U_N	24 V DC ±20 %
Typical input current at U_N	2 A

Input data

Control
Input name	Control input right/left
Nominal input voltage U_N	24 V DC
Input voltage range in reference to U_N	0.8 ... 1.2
Input voltage range in reference to U_N		0.8 ... 1.2
Typical input current at U_N	7 mA
Current consumption	7 mA
Reaction time in normal load operation	< 25 ms
Typical response time	< 25 ms
Typical turn-off time	< 25 ms
Reaction time in normal load operation	< 25 ms
Status display	LED yellow, forward running (R), LED yellow, reverse running (L)
Measurement
Input name	Voltage measuring input V1, V2, V3
Input voltage range	110 V AC ... 550 V AC (conductor voltage)
Mains frequency	50 Hz
Mains frequency		60 Hz
Typical input current at U_N	6 mA (At 550 V AC, per line)
Current consumption	6 mA (at 550 V AC)
Protective circuit	Surge protection
Protective circuit		RC element; RC element
Measurement
Input name	Current measuring input L1/T1, L2/T2, L3/T3
Mains frequency	50 Hz
Mains frequency		60 Hz
Typical input current at U_N	max. 5 A
Power measurement
Basic accuracy	± 2 % (Of input value, type < ± 1 %, cosφ 0.7, tu 20 °C, I = 5 A)
Power range	0.1 kW ... 5 kW (x transformation ratio of external current transducers)
Voltage measurement/star voltage
Basic accuracy	± 2 % (Of end value, typ. < ±0.5 %)
Voltage range	0 V ... 318 V (Toward virtual star point)
Current measurement
Basic accuracy	± 2 % (Of end value, typ. < ±1 %)
Current range	0.25 A ... 5 A (x transformation ratio of external current transducers)
Measuring via	Current transformer for any conductor current

Output data

Acknowledging contacts O1-O4
Note	The meaning of the acknowledgement outputs can be freely parameterized, see user manual
Number of outputs	4
Nominal output voltage	U_VN - 1 V
Continuous load current	50 mA
Residual voltage	< 1 V
Switching outputs 2 A
Nominal output voltage	24 V DC
Nominal output voltage range (factor)	0.8 ... 1.2
Continuous load current	2 A
Protective circuit	Reverse polarity protection
	Surge protection
	short-circuit and overload proof

Connection data

Control circuits
Connection method	Screw connection
Stripping length	8 mm
Screw thread	M3
Conductor cross section rigid	0.2 mm² ... 6 mm²
Conductor cross section flexible	0.2 mm² ... 4 mm²
Conductor cross section AWG	24 ... 10
Load circuit
Connection method	Screw connection
Stripping length	8 mm
Screw thread	M3
Conductor cross section rigid	0.2 mm² ... 6 mm²
Conductor cross section flexible	0.2 mm² ... 4 mm²
Conductor cross section AWG	24 ... 10

Interfaces

Dimensions

Material specifications

Color	green (RAL 6021)

Environmental and real-life conditions

Ambient conditions
Degree of protection	IP20
Ambient temperature (operation)	-20 °C ... 60 °C
Ambient temperature (storage/transport)	-20 °C ... 70 °C

Standards and regulations

Air clearances and creepage distances between the power circuits
Standards/regulations	DIN EN 50178
	safe isolation
Power station requirements
Standards/regulations	DWR 1300/ZXX01/DD/7080.8d
EMC regulations
Standards/regulations	EN 61000-6-2
	EN 61000-6-4

Mounting

Assembly note	Can be aligned with > 20 mm spacing
Mounting position	Vertical (horizontal DIN rail)

Item number	2963556
Packing unit	1 pc
Note	Made to order (non-returnable)
Sales key	NULL
Product key	DK7511
Catalog page	Page 162 (IF-2011)
GTIN	4017918929183
Weight per piece (including packing)	365.6 g
Weight per piece (excluding packing)	363.5 g
Customs tariff number	85371099
Country of origin	DE

EMM W3/ 5-500 - Motor management

2963556

EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%
