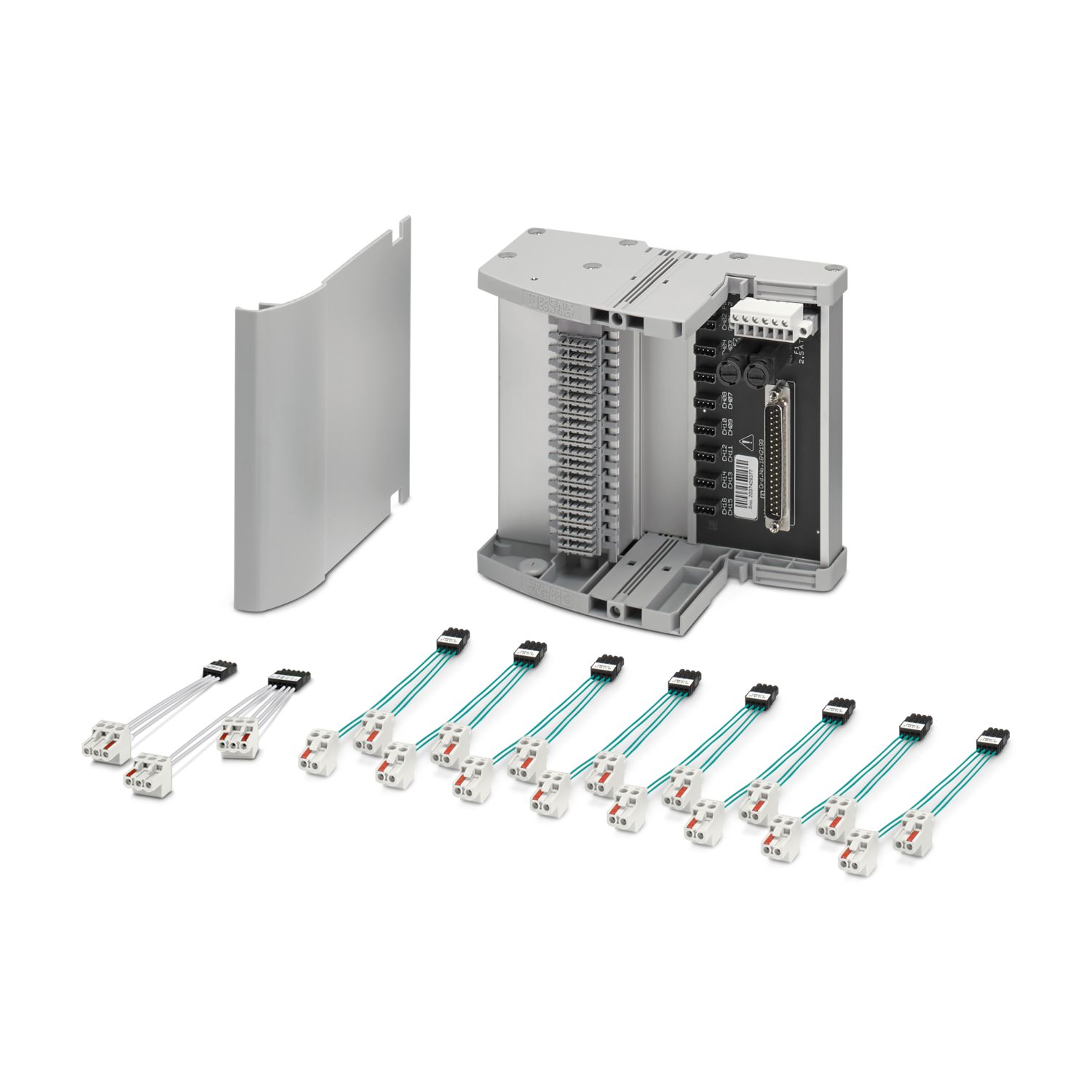

TC-D37SUB-DI16-2EX-P-ETHA - Module carrier

1642199

Termination Carrier for eight two-channel MACX Ex i NAMUR signal conditioners for connection to the Siemens SIMATIC ET 200SP HA, digital input module, DI 16X24VDC HA (6DL1131-6BH00-0PH1)

This product needs further products for operation. Mandatory accessories

Product details

Set consists of

Product type	Module carrier
Insulation characteristics: Air clearances and creepage distances
Overvoltage category	II
Pollution degree	2

Max. permissible current	± 1 A (per signal path)
Nominal voltage U_N	< 50 V DC (Per signal/channel)
Supported controller SIEMENS ET 200SP HA
Suitable I/O card	6DL1131-6BH00-0PH1
Supply
Designation	Feed-in module
Note	Power supply via 2904673 TC-MACX-MCR-PTB power supply and error signaling module.
Fuse	2x 2.5 A Slow-blow (can be exchanged)
Input voltage	24 V DC
Input voltage range	19.2 V DC ... 30 V DC
Input current	≤ 2 A
Redundant supply	yes, decoupled from diodes
Polarization and surge protection	Yes
Output name	Switching output
Contact switching type	1 N/C contact (alarm = open)
Maximum switching voltage	30 V DC (50 mA)

COMBICON connection
Connection method	Screw connection
Stripping length	7 mm
Number of positions	6
Conductor cross section rigid	0.14 mm² ... 2.5 mm²
Conductor cross section flexible	0.14 mm² ... 2.5 mm²
Conductor cross section AWG	24 ... 12
Controller level
Connection method	D-SUB pin strip
Number of positions	37
CH1 ... CH16 cable sets
Connection method	PTSM connector
Number of positions	4

Status display	2x green LEDs (PWR1 and PWR2)

Width	148 mm
Height	170 mm
Depth	160 mm

Ambient conditions
Degree of protection	IP00
Ambient temperature (operation)	-20 °C ... 60 °C (Please observe module specifications)
Ambient temperature (storage/transport)	-40 °C ... 80 °C
Altitude	≤ 2000 m
Permissible humidity (operation)	5 % ... 95 % (non-condensing)
Shock	15g, according to IEC 60068-2-27
Vibration (operation)	2g, according to IEC 60068-2-6

UL, USA/Canada
Identification	UL 61010 Listed
	Class I, Div. 2, Groups A, B, C, D T4
	Class I, Zone 2, Group IIC

Air clearances and creepage distances
Standards/regulations	IEC/EN 60664-1

Mounting type	DIN rail mounting
Assembly note	No end clamp
Mounting position	any

Commercial data

Item number	1642199
Packing unit	1 pc
Minimum order quantity	1 pc
Note	Made to order (non-returnable)
Sales key	C420
Product key	DK271B
GTIN	4067923169746
Customs tariff number	85371098
Country of origin	DE

Classifications

Approvals

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
	50 V	1 A

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
	50 V	1 A

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
	50 V	1 A

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
	50 V	1 A

Environmental product compliance

Compatible products

Mandatory accessories

Accessories

EU RoHS
Fulfills EU RoHS substance requirements	Yes
Exemption	6(c), 7(c)-I
China RoHS
Environment friendly use period (EFUP)	EFUP-50 An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
EU REACH SVHC
REACH candidate substance (CAS No.)	Lead (CAS: 7439-92-1)
