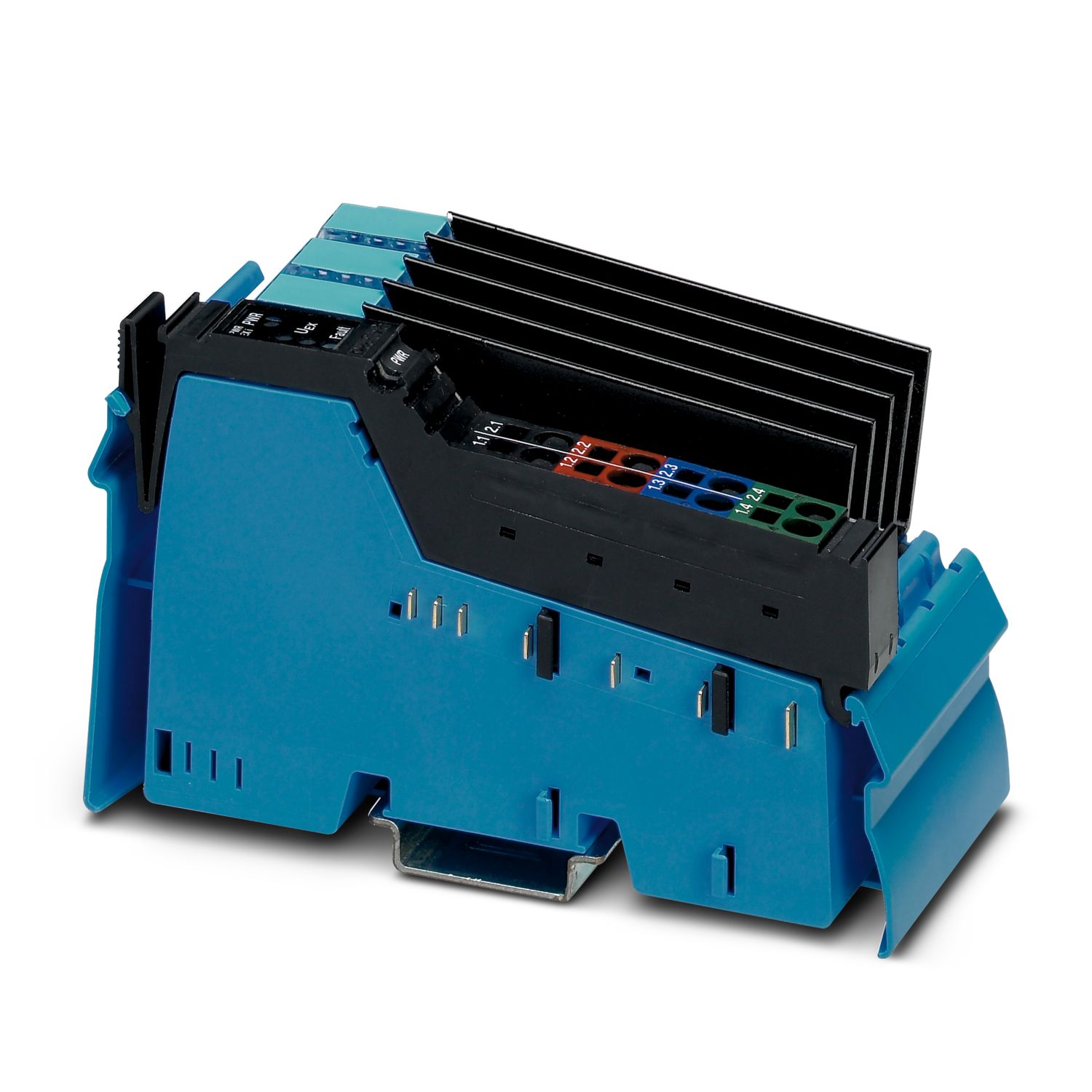

IB IL EX-IS PWR IN-PAC
-
Modular power terminal
2869910
Inline power terminal for power supply to intrinsically safe I/O terminals
Product details

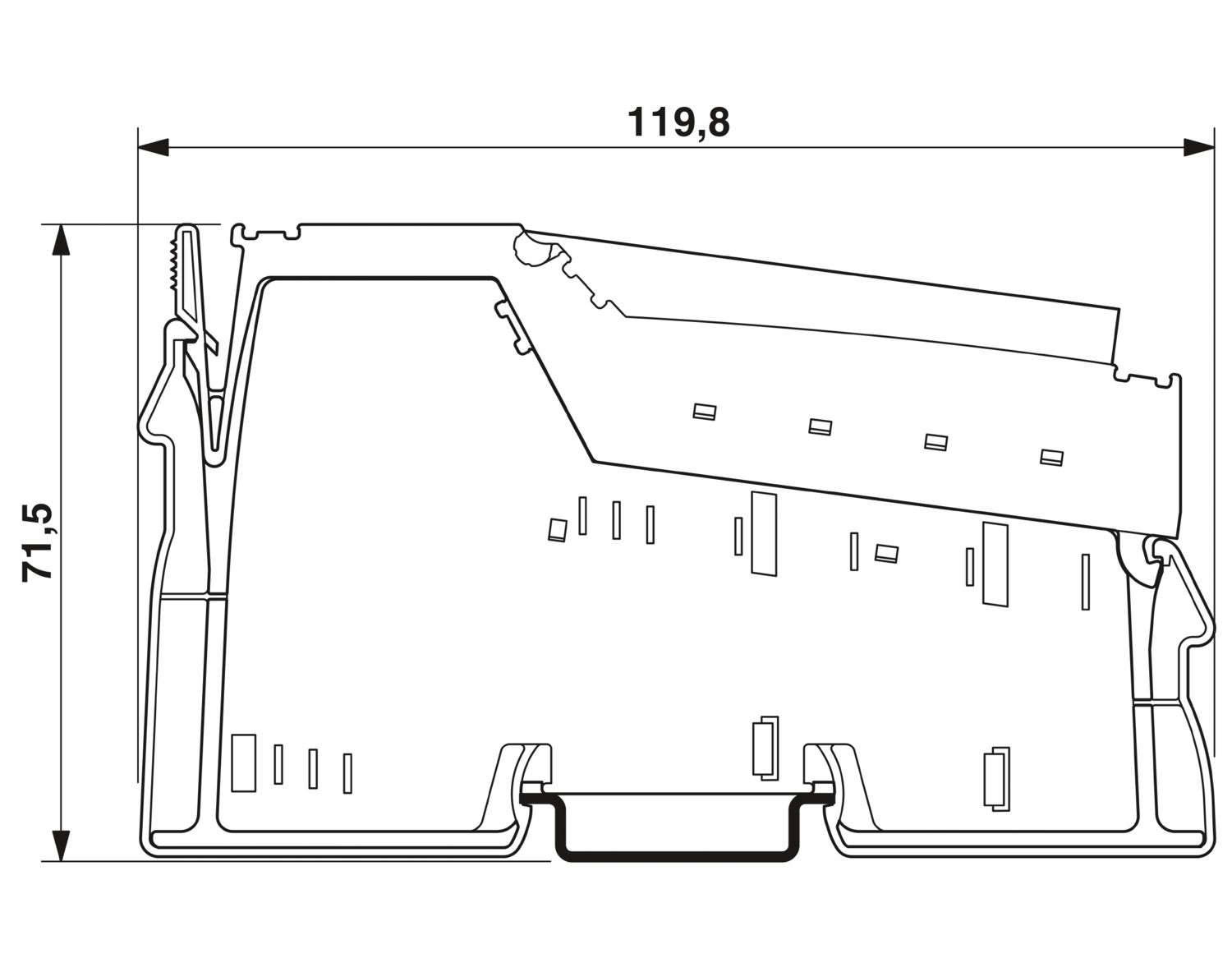

| Dimensional drawing |
|
| Width | 48.8 mm |
| Height | 119.9 mm |
| Depth | 70.4 mm |
| Utilization restriction | |
| CCCex note | Use in potentially explosive areas is not permitted in China. |
| Color | blue |
| Inline local bus | |
| Connection method | Inline data jumper |
| Transmission speed | 500 kbps |
| Product type | I/O component |
| Product family | Inline |
| Type | modular |
| Inline |
| Potentials | |
| Power consumption | max. 8 W |
| Potentials: | |
| Supply voltage | 24 V DC (via Inline connector) |
| Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
| Current draw | max. 1.5 A |
| max. 2 A | |
| Potentials: Communications power (UL) | |
| Supply voltage | 5 V DC (via voltage jumper) |
| Potentials: | |
| Supply voltage | 28 V DC ±5 % |
| Connection technology | |
| Connection name | Inline connector |
| Conductor connection | |
| Connection method | Spring-cage connection |
| Conductor cross section rigid | 0.08 mm² ... 1.5 mm² |
| Conductor cross section flexible | 0.08 mm² ... 1.5 mm² |
| Conductor cross section AWG | 28 ... 16 |
| Stripping length | 8 mm |
| Inline connector | |
| Connection method | Spring-cage connection |
| Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² |
| Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² |
| Conductor cross section AWG | 28 ... 16 |
| Stripping length | 8 mm |
| Ambient conditions | |
| Degree of protection | IP20 |
| Ambient temperature (operation) | -25 °C ... 60 °C |
| Degree of protection | IP20 |
| Ambient temperature (storage/transport) | -25 °C ... 70 °C |
| Permissible humidity (operation) | 10 % ... 95 % (according to DIN EN 61131-2) |
| Protection class | III (VDE 0106, IEC 60536) |
| Ex data | |
| ATEX | II 3G Ex ec IIC T4 Gc Sira 10ATEX2130X |
| IECEx | Ex ec IIC T4 Gc IECEx SIR 10.0085X |
| UL, USA / Canada | Class I, Div. 2, Groups A, B, C, D, T4 |
| Mounting type | DIN rail mounting |
| Safety data | |
| Safety-related maximum voltage Um | 253 V |
Your advantages
Diagnostic LEDs (standard load, high load, overload) provide direct feedback regarding the capacity
Electronic overload protection
1000 mA for logic supply circuit (UL)
1000 mA for I/O supply (UEX)
The design requires a gap of 50 mm between intrinsically safe and non-intrinsically safe connections
Electrical isolation between Inline I/O station and intrinsically safe I/O termination devices
