HC-M-25-MOD-BU
-
Contact insert module
1605005

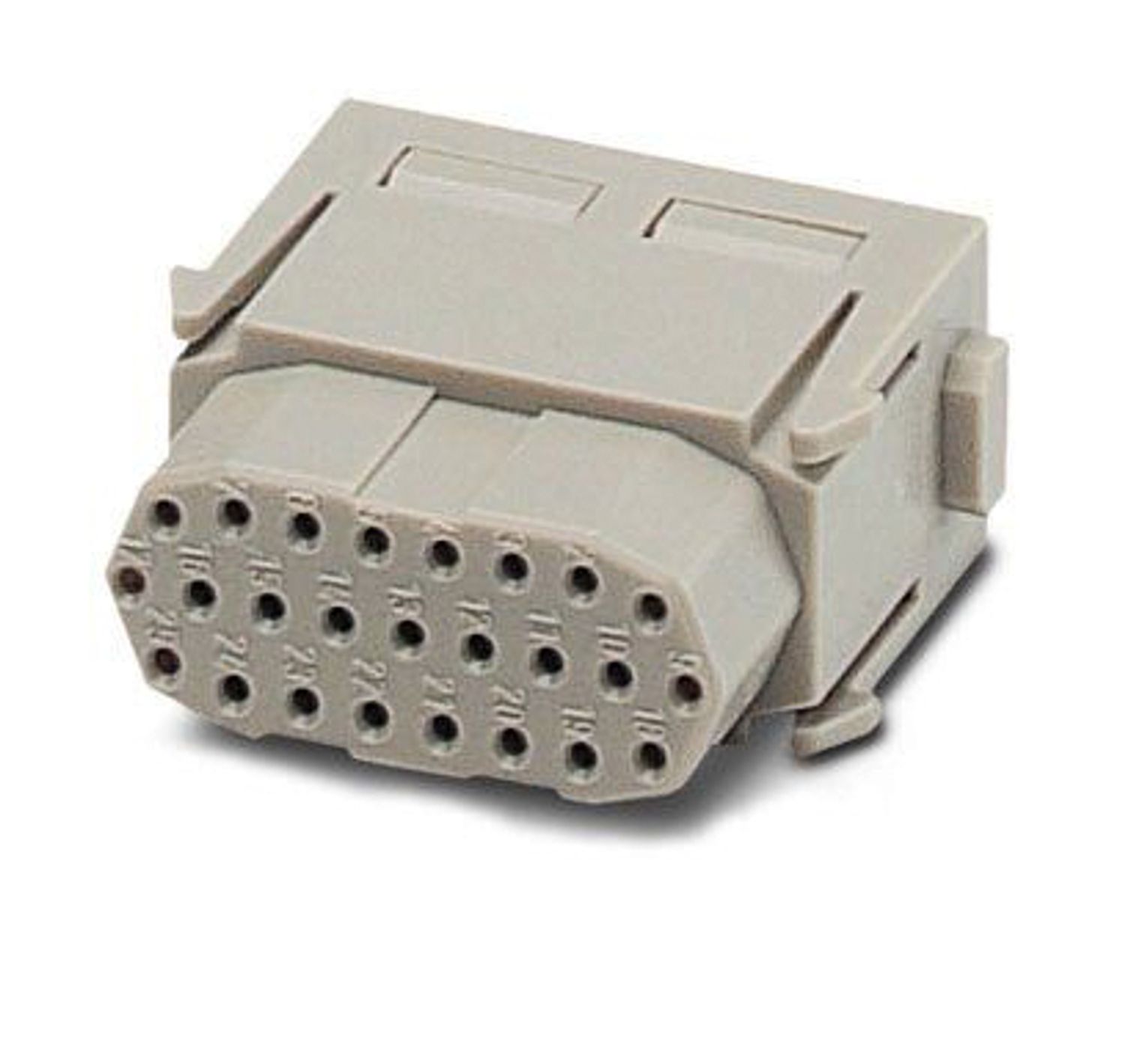

HEAVYCON contact insert module, female, 25-pos., crimp connection
Product details
| General | For HEAVYCON housing type B6 to B48, HC-M-MHR... hinged retaining frame required, VS-...CD-1,0... crimp contacts (crimp contacts not supplied as standard) |
| Assembly note | Housing height >= 52 mm. Plug-in connections may only be operated only when there is no load/voltage. Use of HC-CST (1676857) coding pins and HC-CBU (1676860) coding sockets has been prescribed. |
| Product type | Modular contact insert |
| Series | HC-M-25 |
| Application | Signal |
| Number of positions | 25 |
| Connection profile | 25 |
| Contact numbering | 1 - 25 |
| Number of module slots | 1 |
| Contact material type | turned |
| Insulation characteristics | |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Connection technology | |
| Connection technology | Crimp connection |
| Conductor connection | |
| Conductor cross section | 0.08 mm² ... 0.5 mm² |
| Connection cross section AWG | 28 ... 20 |
| Stripping length of the individual wire | 4.2 mm |

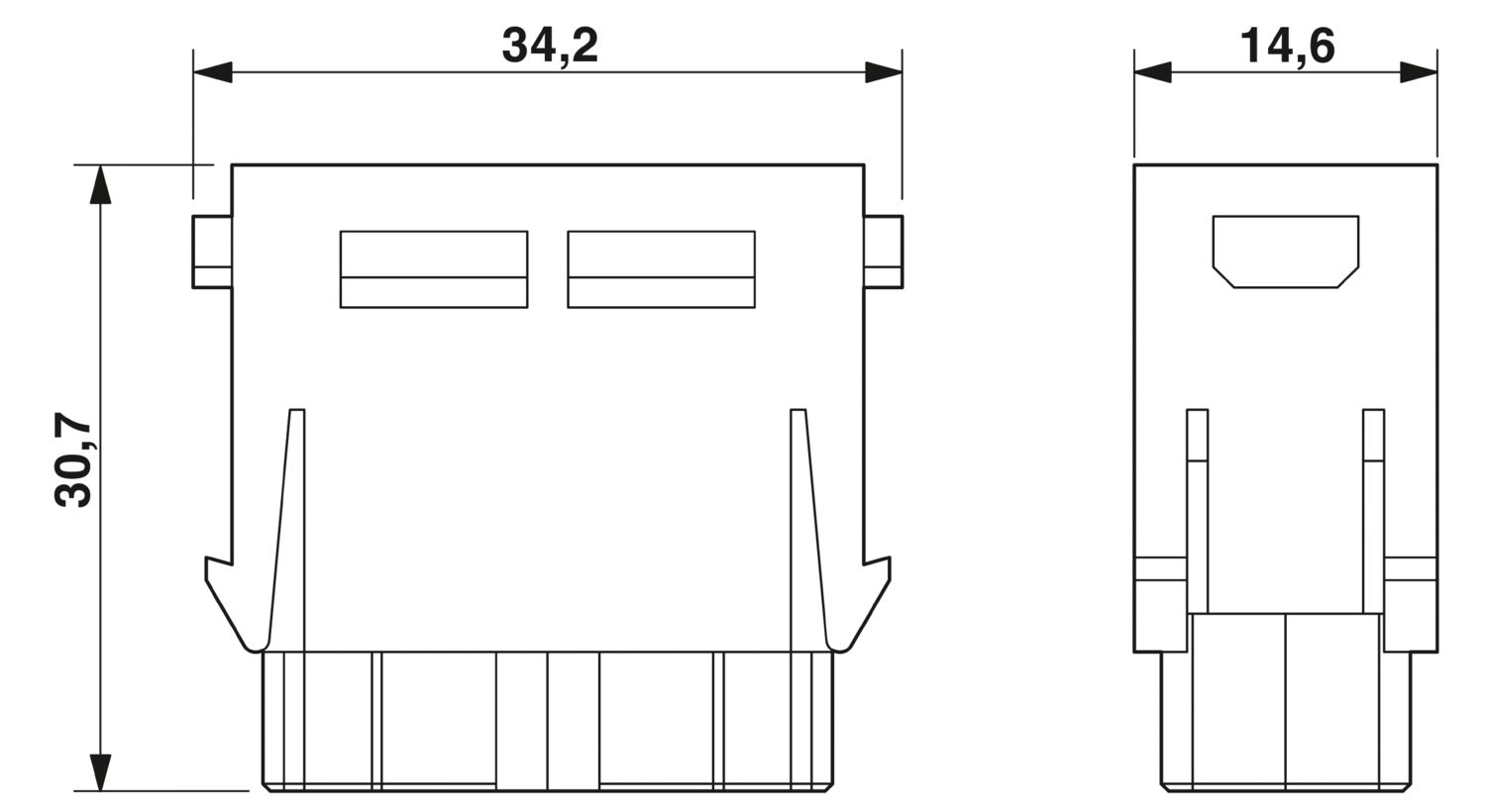

| Dimensional drawing |
|
| Width | 34.2 mm |
| Height | 30.65 mm |
| Length | 14.6 mm |
| Mechanical characteristics | |
| Minimum housing height | 52 mm |
| Contact diameter | 1 mm |
| Rated voltage (III/3) | 50 V |
| Rated surge voltage | 0.8 kV |
| Rated current | 4 A |
| Test voltage | 800 V AC |
| Mechanical data | |
| Insertion/withdrawal cycles | ≥ 500 |
| Flammability rating according to UL 94 | V0 |
| Contact material | Copper alloy |
| Contact surface material | Au |
| Contact carrier material | PC |
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 125 °C |
