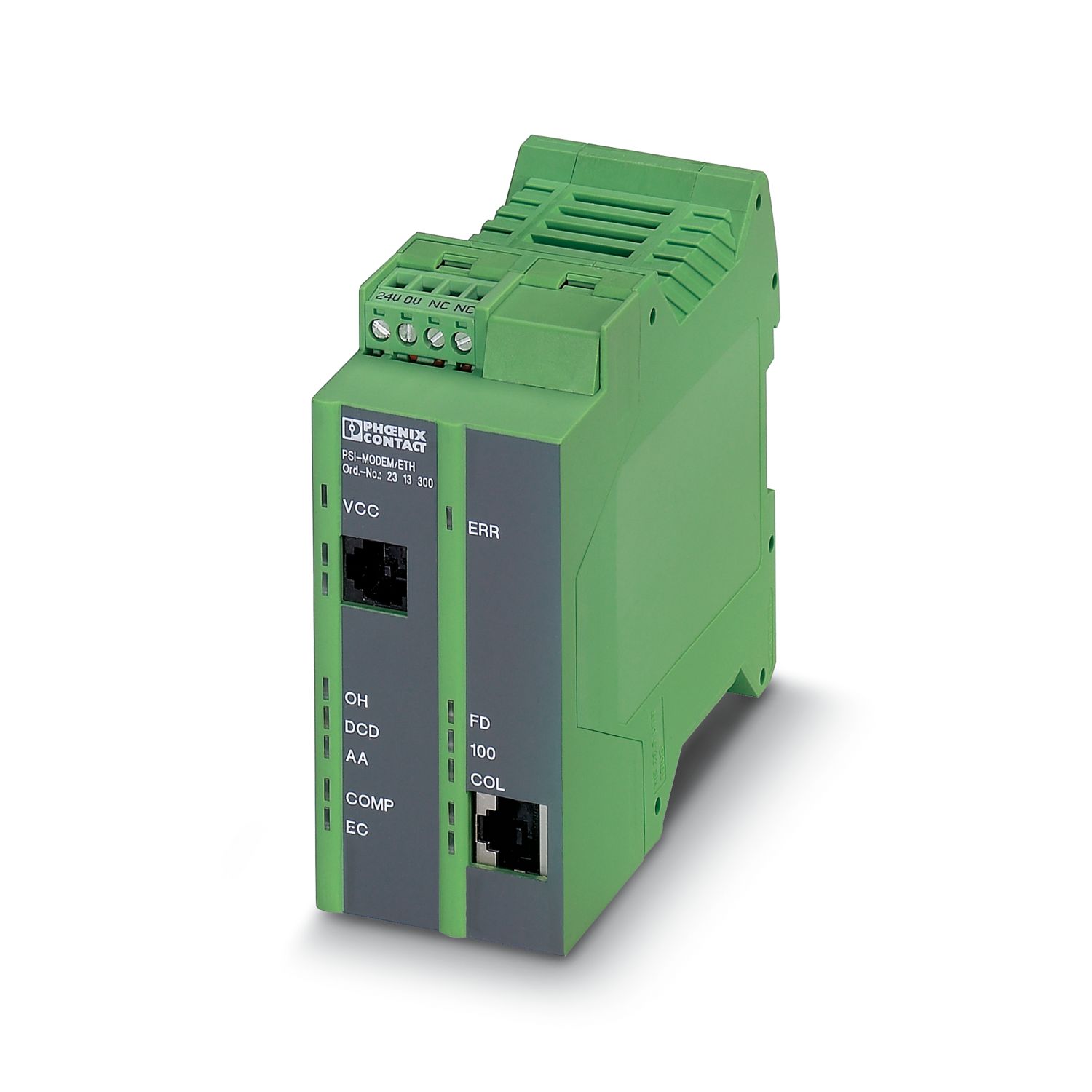

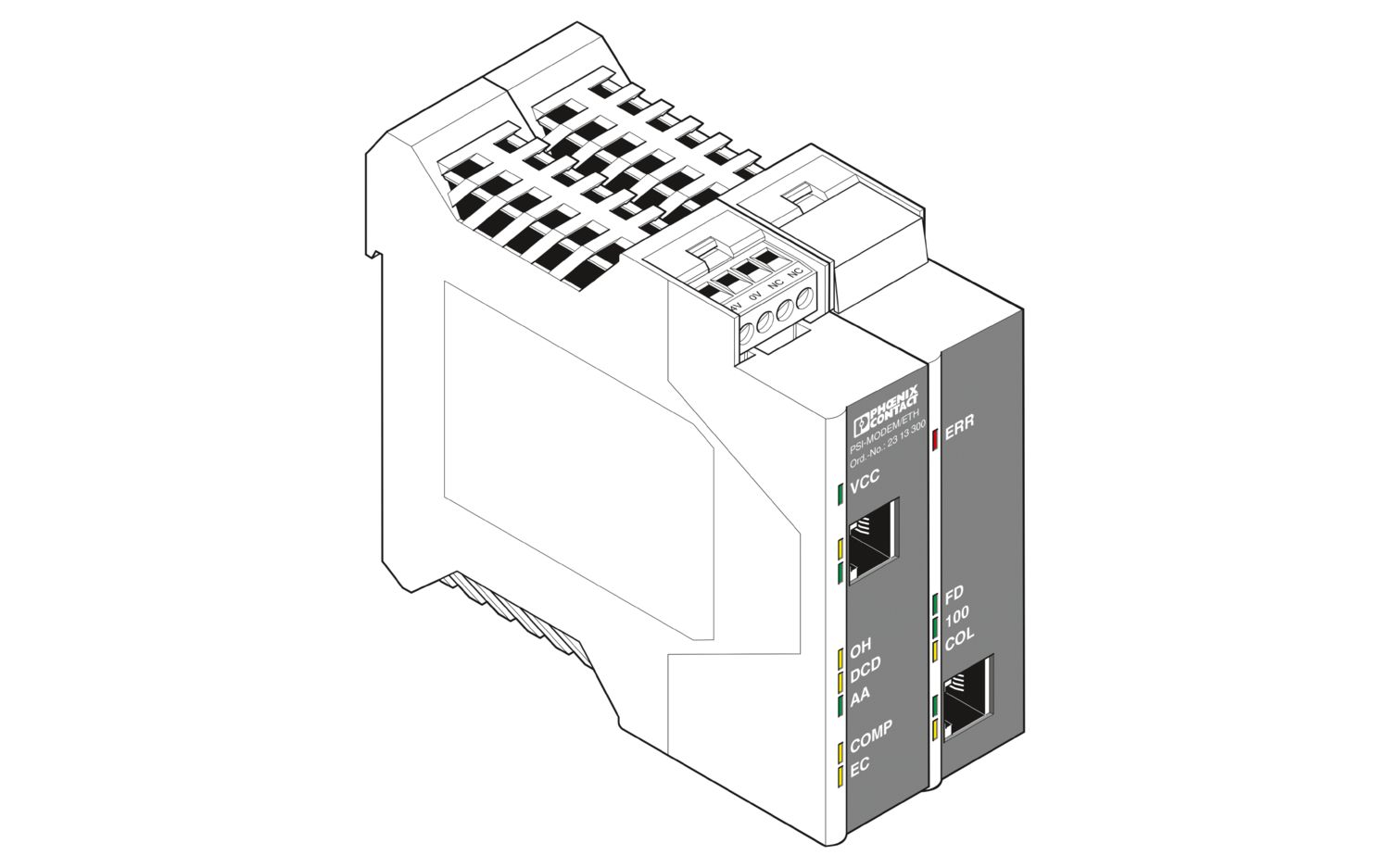

PSI-MODEM/ETH - Modem - 2313300

Notes

Utilization restriction
EMC note	EMC: class A product, see manufacturer's declaration in the download area

Product properties

Product type	Modem
Insulation characteristics
Pollution degree	2

Electrical properties

Electrical isolation	VCC // PSTN // Ethernet
Maximum power dissipation for nominal condition	2.4 W
Mains type	Fixed-line network
Test voltage data interface/power supply	1.5 kV (50 Hz, 1 min.)
Test voltage data interfaces	1500 V
Supply

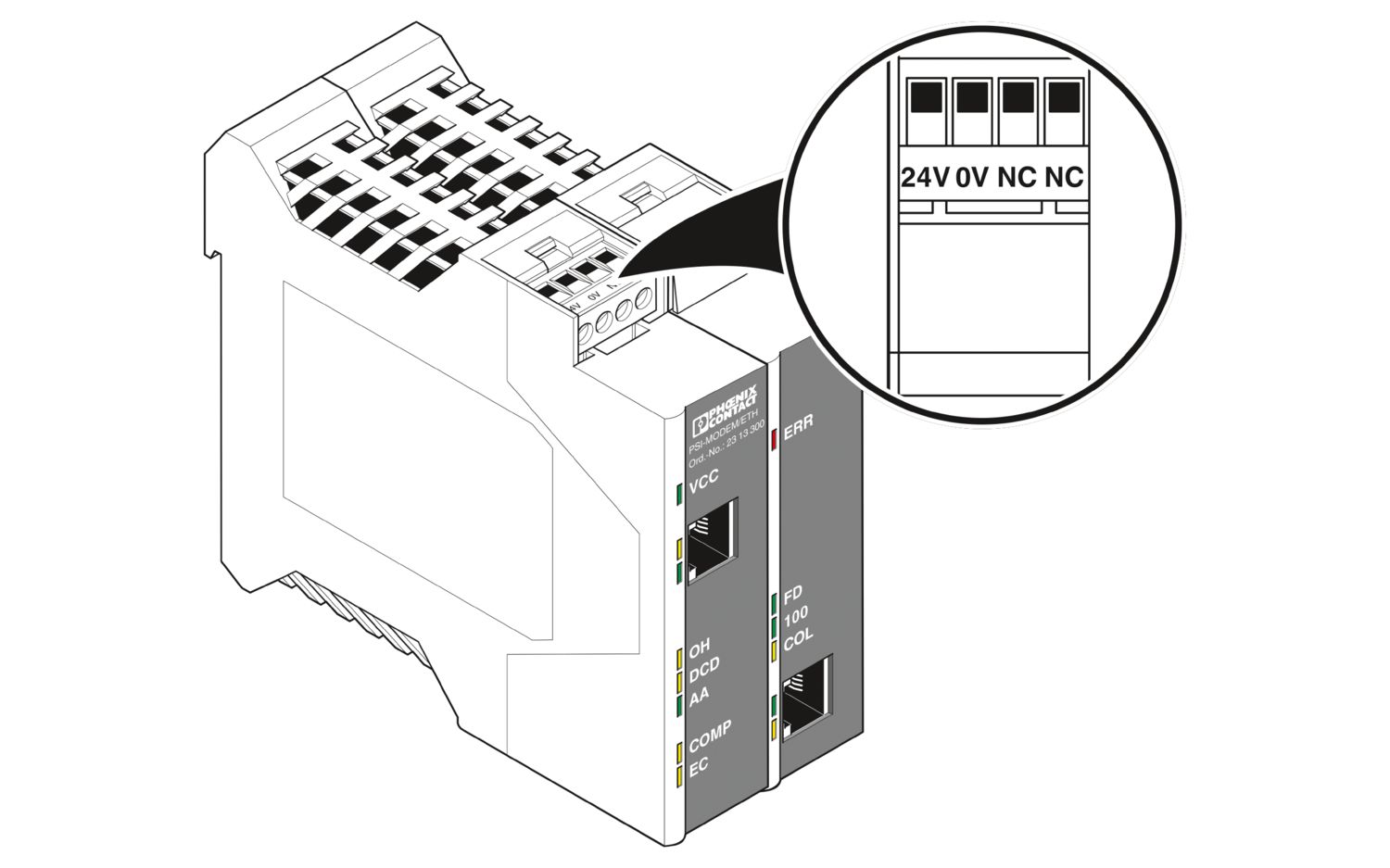

Supply voltage range	10 V DC ... 30 V DC (via pluggable COMBICON screw terminal block)
Nominal supply voltage	24 V DC ±5 % (as an alternative or redundant, via backplane bus contact and system current supply)
Typical current consumption	< 100 mA (24 V DC)
	< 70 mA (stand by)
Function
Management	Web-based management, SNMP or Factory Manager Software FL SWT

Connection data

Supply
Tightening torque	0.56 Nm ... 0.79 Nm

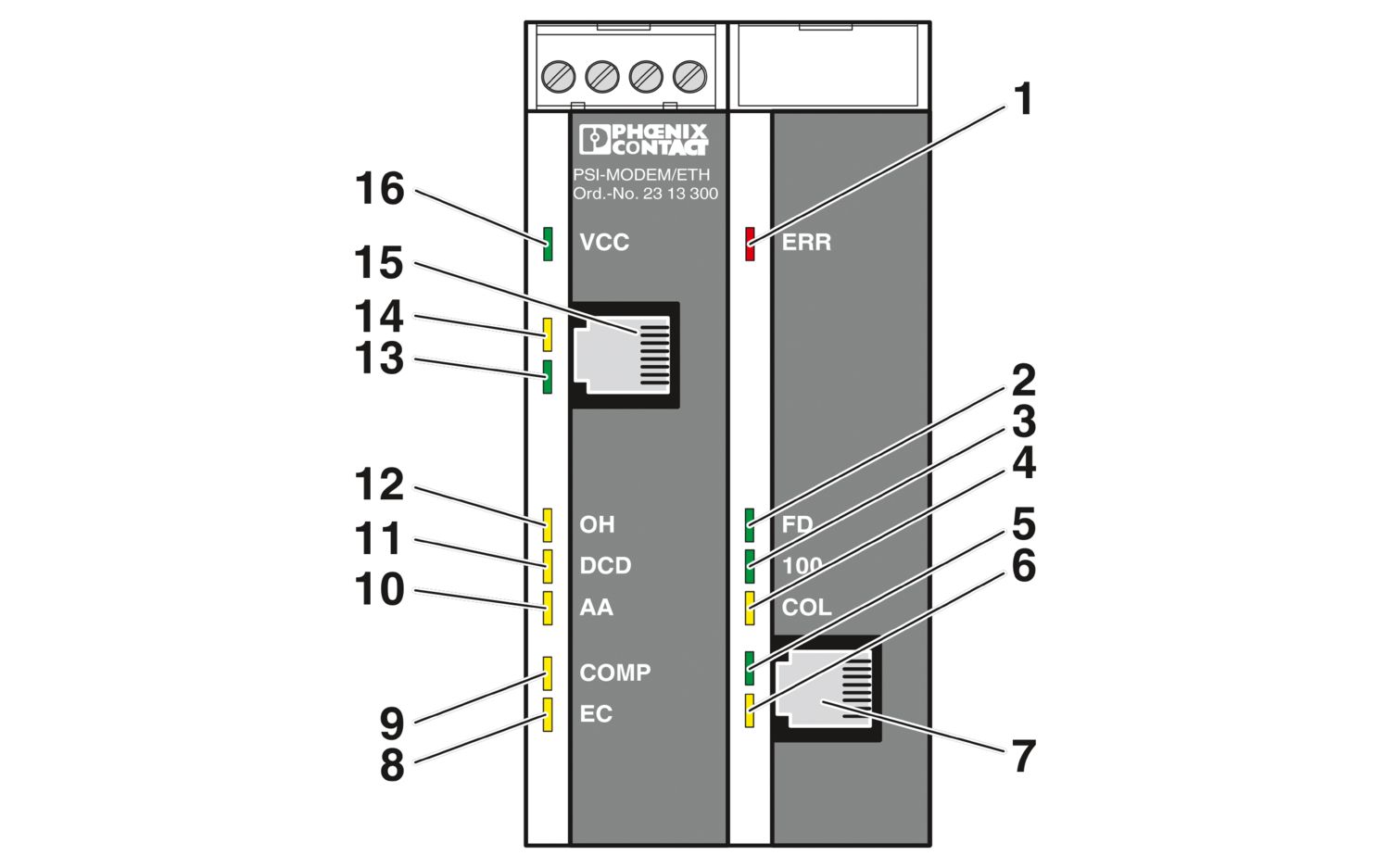

Interfaces

Signal	Ethernet
Web server	yes
Data: Ethernet interface, 10/100Base-T(X) in accordance with IEEE 802.3
Serial transmission speed	10/100 Mbps, auto negotiation
Connection method	RJ45 jack, shielded
No. of channels	1
Transmission length	100 m (shielded twisted pair)
Protocols supported	TCP/IP, UDP, TFTP, HTTP, Modbus/TCP, PPP, PROFINET, EtherNet/IP™, CHAP
Auxiliary protocols	ARP, DHCP, BOOTP, SNMP, RIP, RARP, HTTP, TFTP, ICMP
Data flow control/protocols	TCP/IP, UDP, TFTP, HTTP, Modbus/TCP, PPP, PROFINET, EtherNet IP, CHAP
Data: PSTN-Port (a/b-Line)
Serial transmission speed	300 Bd ... 56 kBd
Connection method	RJ12, 6-pos.
Dialing procedure	Multiple frequency/pulse dialing, configuration via software
Error correction	V.42 (LAP-M or MNP 2 to 4)
Data compression	V.42bis (throughput 4:1), MNP 5 (throughput 2:1)
Acoustic signaling	Integrated piezo (during the dialing process)

Dimensions

Width	45 mm
Height	99 mm
Depth	114.5 mm

Material specifications

Material (Housing)	PA V0

Mechanical tests

Free fall in accordance with IEC 60068-2-32	: 1 m
Vibration resistance in accordance with EN 60068-2-6/IEC 60068-2-6	: 5g in each space direction
Shock in accordance with EN 60068-2-27/IEC 60068-2-27	: Operation: 15g, 11 ms period, half-sine shock pulse
	: Storage: 30g, 11 ms period, half-sine shock pulse

Environmental and real-life conditions

Ambient conditions
Degree of protection	IP20
Ambient temperature (operation)	0 °C ... 55 °C
Altitude	≤ 5000 m (For restrictions, see the manufacturer's declaration for altitude operation)
	≤ 2000 m (in acc. with UL)

Approvals

CE
Certificate	CE-compliant
UL, USA/Canada
Identification	508 Listed
	Class I, Zone 2, AEx nA IIC T6
	Class I, Zone 2, Ex nA IIC T6 Gc X
Corrosive gas test
Identification	ISA-S71.04-1985 G3 Harsh Group A

EMC data

Electromagnetic compatibility	Conformance with EMC Directive 2014/30/EU
Noise immunity	EN 61000-6-2:2005
Noise emission
Standards/regulations	EN 55032
Electrostatic discharge
Standards/regulations	EN 61000-4-2
Electrostatic discharge
Contact discharge	± 6 kV (Test Level 3)
Discharge in air	± 8 kV (Test Level 3)
Comments	Criterion B
Electromagnetic HF field
Standards/regulations	EN 61000-4-3
Electromagnetic HF field
Frequency range	Test Level 3
Field intensity	10 V/m
Comments	Criterion A
Fast transients (burst)
Standards/regulations	EN 61000-4-4
Fast transients (burst)
Input	± 2 kV (Test Level 3)
Signal	± 1 kV (Test Level 3)
Comments	Criterion B
Surge current load (surge)
Standards/regulations	EN 61000-4-5
Surge current load (surge)
Input	± 2 kV
Signal	± 1 kV
Comments	Criterion B
Conducted interference
Standards/regulations	EN 61000-4-6
Conducted interference
Comments	Criterion A
Voltage	10 V
Emitted interference
Standards/regulations	EN 55032
Comments	Class A, industrial applications

Mounting

Item number	2313300
Packing unit	1 pc
Minimum order quantity	1 pc
Note	Made to order (non-returnable)
Sales key	DN24
Product key	DNC412
Catalog page	Page 357 (C-6-2017)
GTIN	4046356308083
Weight per piece (including packing)	336.8 g
Weight per piece (excluding packing)	290.4 g
Customs tariff number	85176200
Country of origin	DE

China RoHS
Environment friendly use period (EFUP)	EFUP-50 An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%
