SIM-EI- 24DC/48DC/100
-
Miniature solid-state relay
2271073

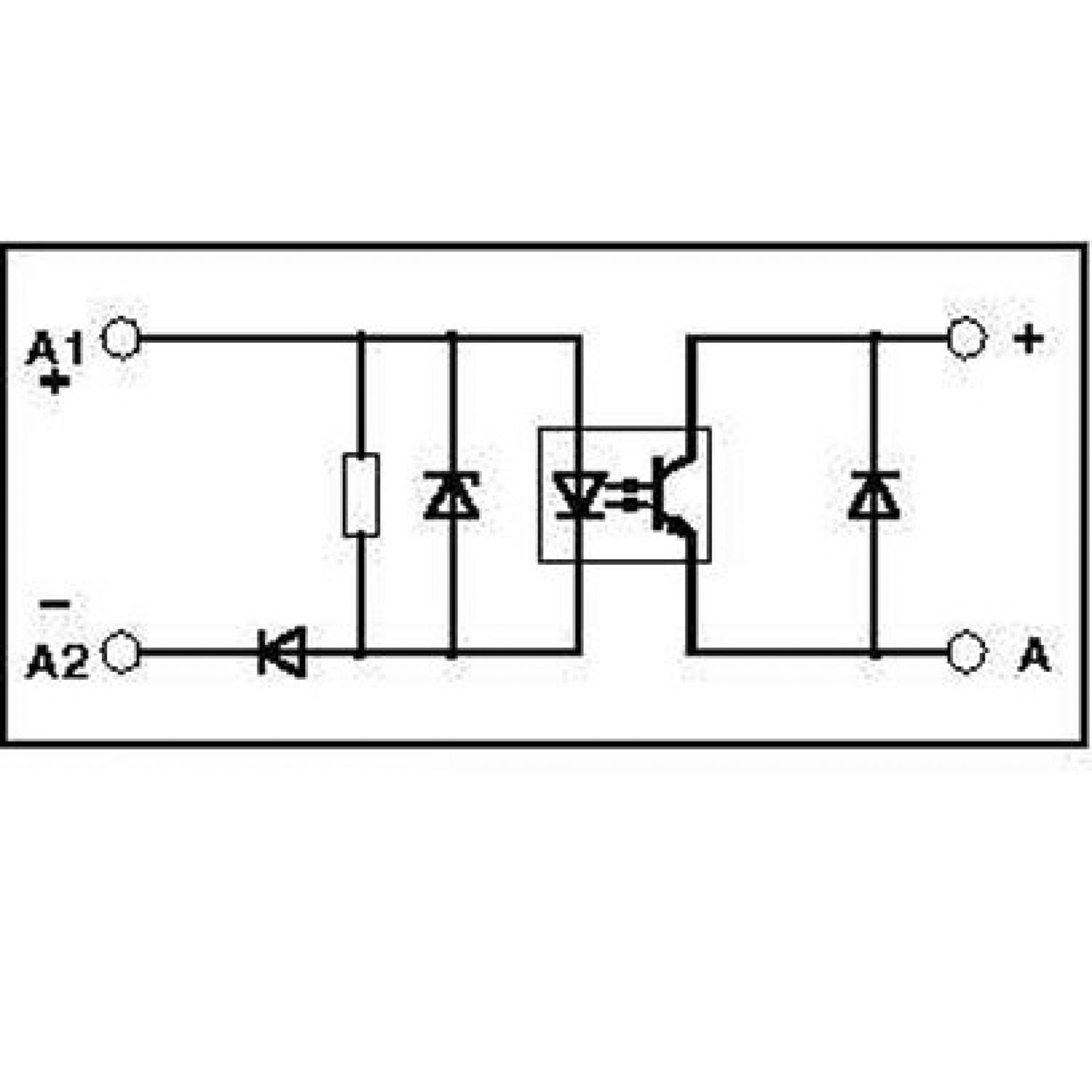

Input solid-state relay, with protective circuit in input and output circuits, input: 24 V DC, output: 8 - 48 V DC/100 mA
Product details

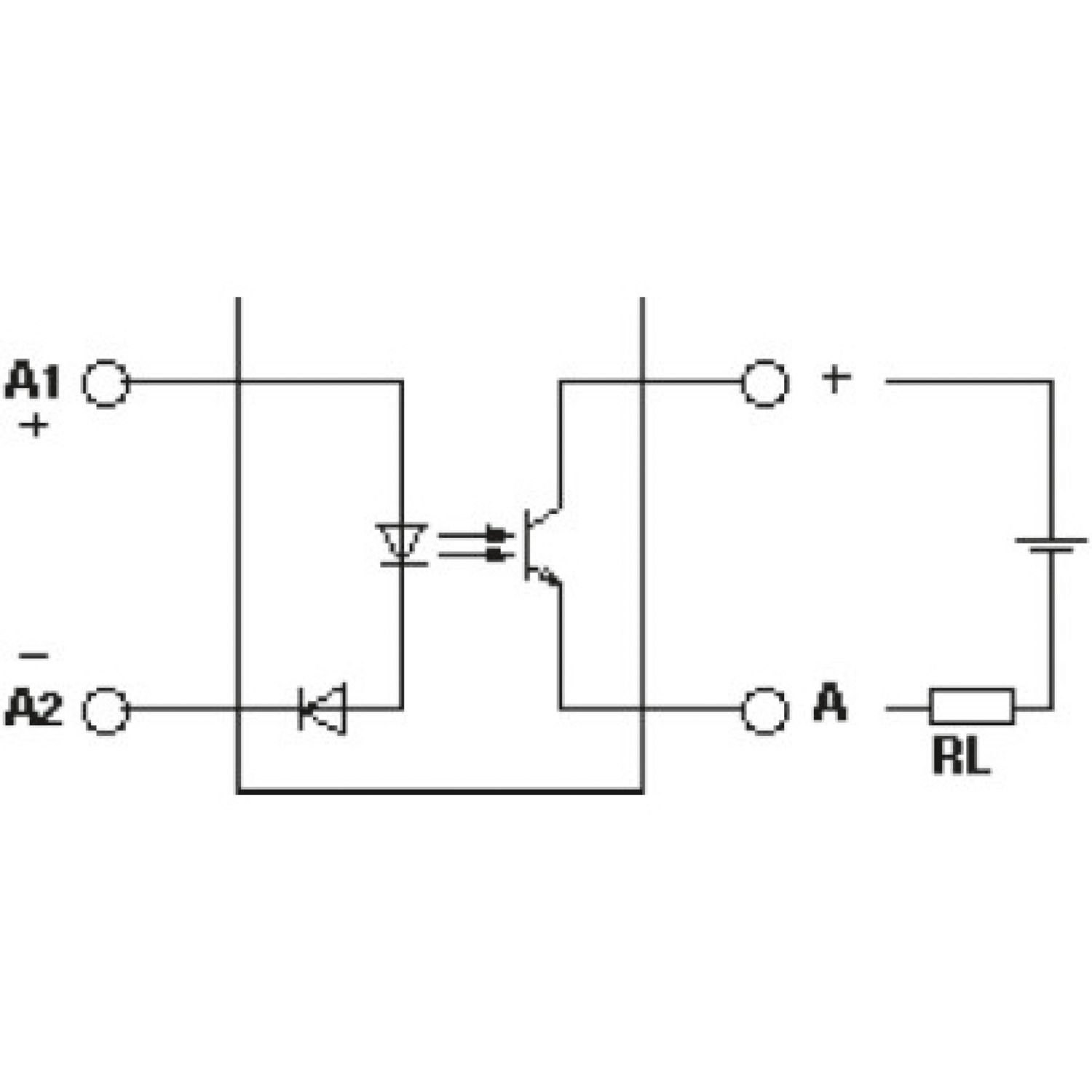

| Product type | Single solid-state relay |
| Operating mode | 100% operating factor |
| Data management status | |
| Date of last data management | 19.03.2025 |
| Test voltage (Input/output) | 2.5 kV (50 Hz, 1 min., input/output) |
| Nominal input voltage UN | 24 V DC |
| Input voltage range in reference to UN | 0.9 ... 1.1 |
| Input voltage range | 21.6 V DC ... 26.4 V DC |
| Switching threshold "0" signal in reference to UN | ≤ 0.4 |
| Switching threshold "1" signal in reference to UN | ≥ 0.8 |
| Typical input current at UN | 5.1 mA |
| Protective circuit | Reverse polarity protection; Polarity protection diode |
| Transmission frequency | 600 Hz |
| Design of digital output | electronic |
| Output voltage range | 8 V DC ... 48 V DC |
| Limiting continuous current | 100 mA |
| Voltage drop at max. limiting continuous current | 1 V |
| Output circuit | 2-conductor, floating |
| Protective circuit | Reverse polarity protection; Polarity protection diode |

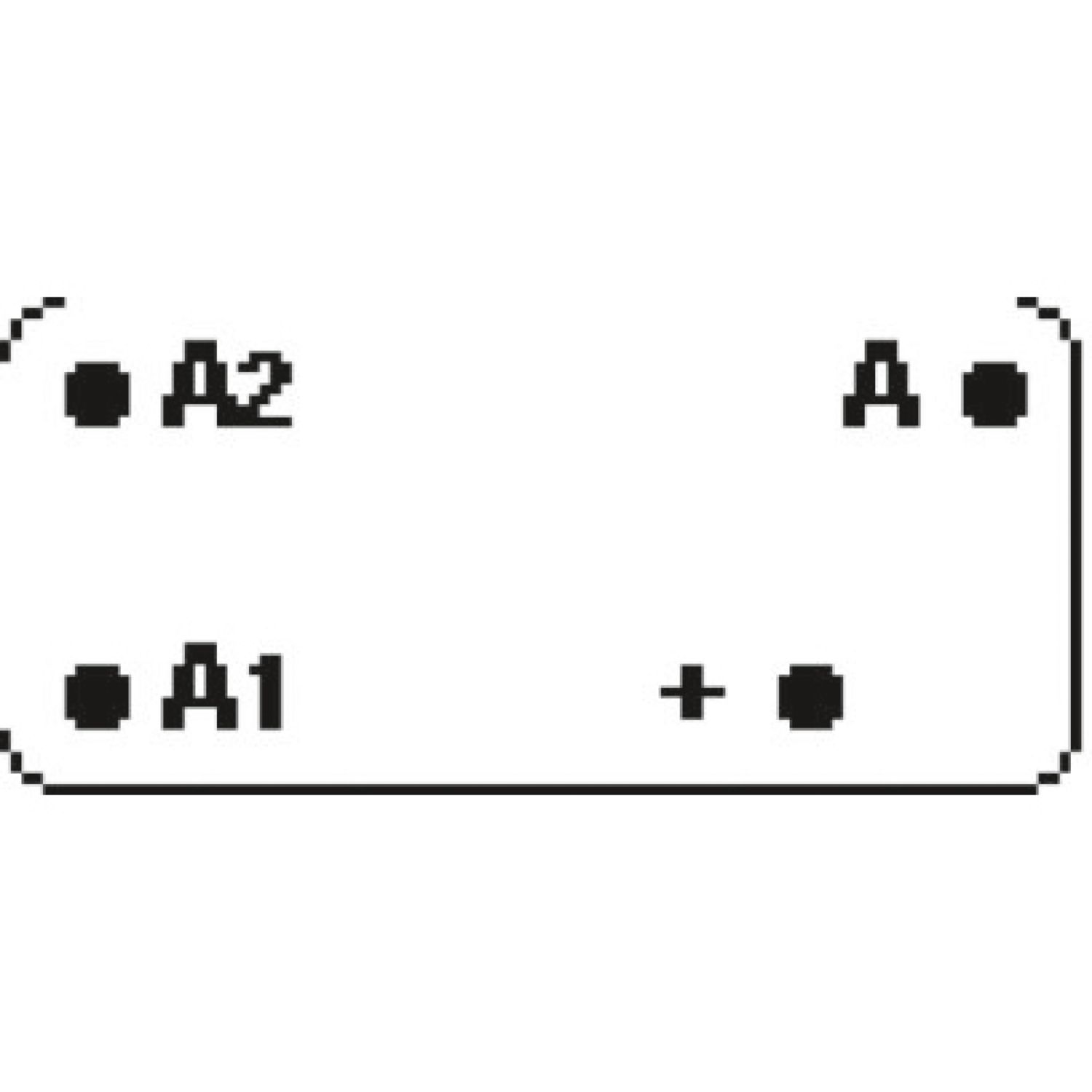

| Dimensional drawing |
|
| Width | 13 mm |
| Height | 29 mm |
| Depth | 25 mm |
| Ambient conditions | |
| Ambient temperature (operation) | -20 °C ... 50 °C |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
| Standards/regulations | DIN VDE 0110 |
| Assembly note | can be aligned with spacing ≥ 2 mm |
| Mounting position | any |
