V-RC/TWUM 13/KVD 13/LBL 16+3
-
Cable connector
1000044
Cable connector, number of positions: 19, status display: no; master cable connection: M23 screw locking, shielding: no, this item is expected to be lead-free from Q1 2026 in accordance with RoHS II without exception 6c (Pb < 0.1%), a lead-free alternative is possible on request in advance
Product details

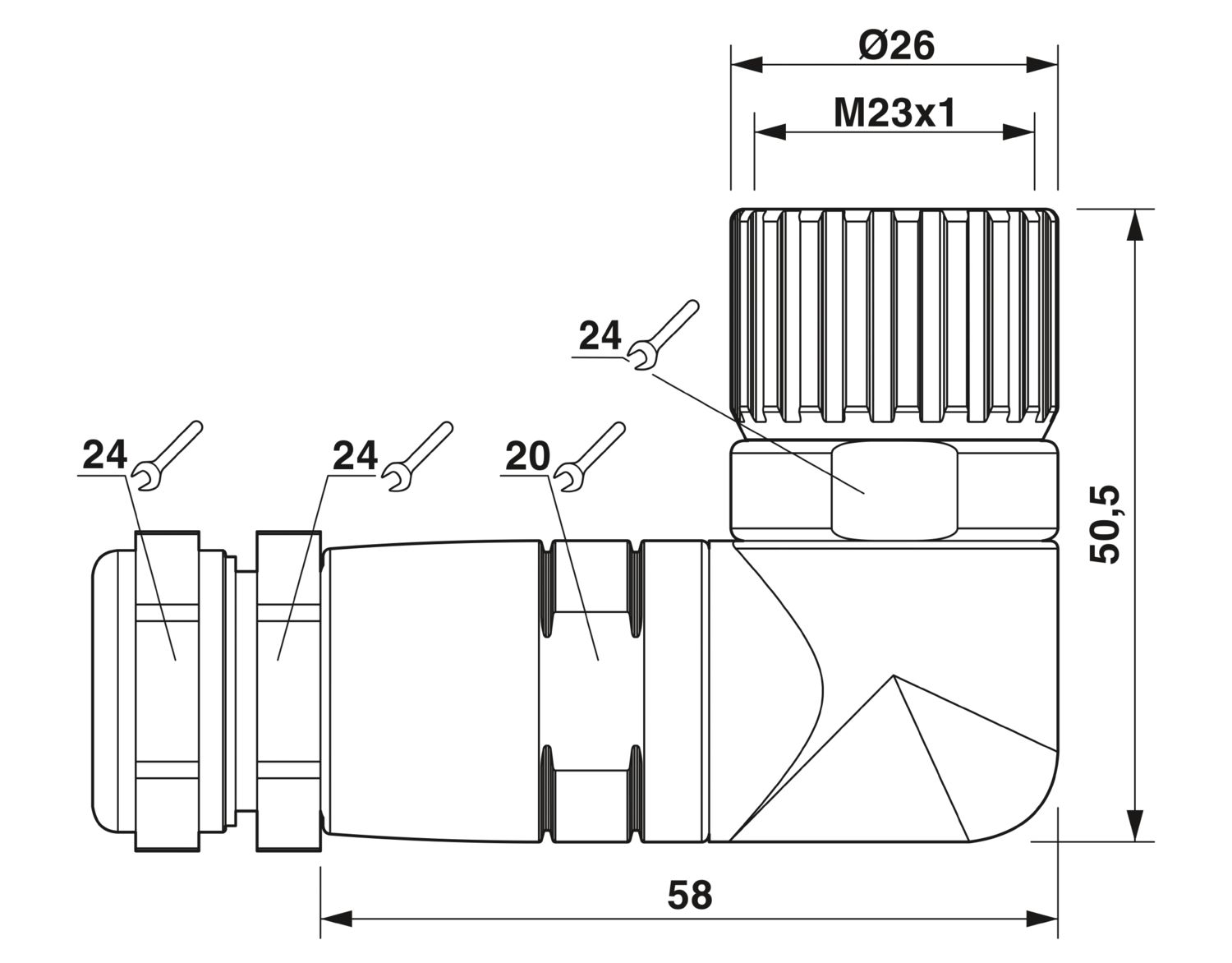

| Notes on operation | The connector is designed for use on sensor/actuator boxes with an M23 plug-in connection. |
| Product type | Circular connector (cable-side) |
| Number of positions | 19 |
| Dimensional drawing |
|
| Width | 26 mm |
| Height | 51 mm |
| Length | 78 mm |
| Material Housing | GD-Zn |
| Flammability rating according to UL 94 | V0 |
| Contact material | CuZn |
| Contact surface material | gold-plated |
| Contact carrier material | PBT |
| Conductor connection | |
| Connection method | Solder connection |
| Connection cross section | 1 mm² |
| 1.5 mm² | |
| Pin assignment | |
| Slot/position = Wire color or connection | 1 / 4 (A) = 15 = WH |
| 1 / 2 (B) = 7 = GYPK | |
| 2 / 4 (A) = 5 = GN | |
| 2 / 2 (B) = 4 = RDBU | |
| 3 / 4 (A) = 16 = YE | |
| 3 / 2 (B) = 8 = WHGN | |
| 4 / 4 (A) = 3 = GY | |
| 4 / 2 (B) = 14 = BNGN | |
| 5 / 4 (A) = 17 = PK | |
| 5 / 2 (B) = 9 = WHYE | |
| 6 / 4 (A) = 2 = RD | |
| 6 / 2 (B) = 13 = YEBN | |
| 7 / 4 (A) = 11 = BK | |
| 7 / 2 (B) = 10 = WHGY | |
| 8 / 4 (A) = 1 = VT | |
| 8 / 2 (B) = 18 = GYBN | |
| 1-8 / 1 (+ 120 V) = 19 = BN | |
| 1-8 / 3 (0 V) = 6 = BU | |
| 1-8 / 5 (PE) = 12 = GNYE | |
| Nominal voltage UN | 150 V |
| Rated current, total | 10 A (with 1 mm² conductor cross section) |
| Connection 2 | |
| Head design | Socket |
| Head cable outlet | angled |
| Head thread type | M23 |
| External cable diameter | 10 mm ... 14 mm |
| Connection method | M23 screw locking |
| Ambient conditions | |
| Degree of protection | IP65 |
| IP67 | |
| Ambient temperature (operation) | -20 °C ... 80 °C |
