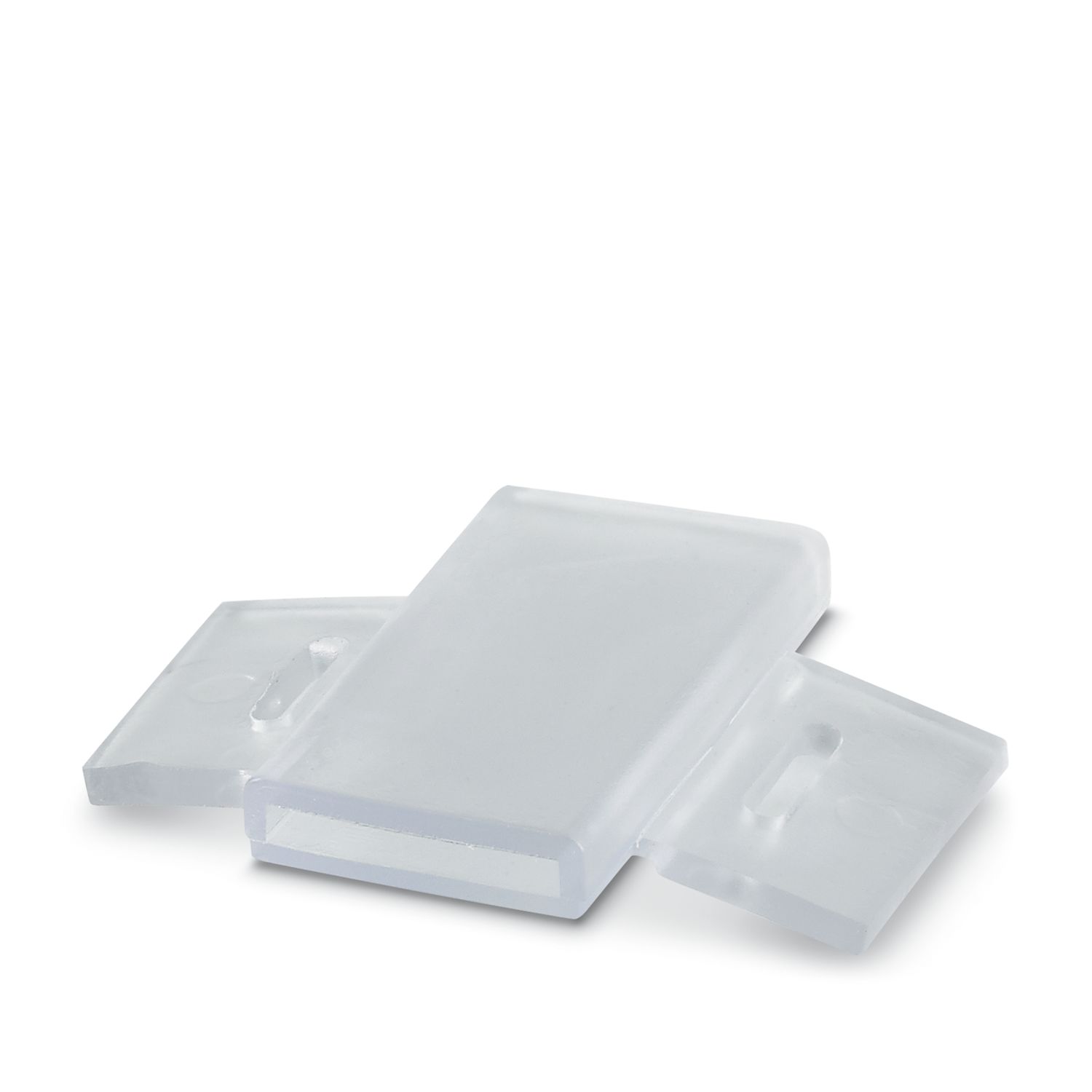

Marker carrier, transparent, unlabeled, mounting type: Assembly with cable ties, cable diameter: > 10 mm, text field height: 9 mm, text field width: 20 mm
Product details
Product type
Marker carrier cable
Width
20.3 mm
Height
25.5 mm
Depth
3.3 mm
External dimensions
Outside diameter
15 mm ... 136 mm
Text field
Text field width
20 mm
Text field height
9 mm
Color
transparent
Material
PVC
Base element material
PVC
Components
Silicone-free
External cable diameter
> 10.00 mm
Test for substances that would hinder coating with paint or varnish
Result
Test passed
Specification
IEC 60068-2-2:2007-07
Result
Test passed
Procedure
Test Bb
Duration
96 h
Temperature for testing
80 °C
Ambient conditions
Ambient temperature (operation)
-50 °C ... 80 °C
Recommended ambient temperature (storage/transport)
23 °C
Recommended humidity (storage/transport)
50 % (Storage in a dry and dark place in the original packaging is recommended)
