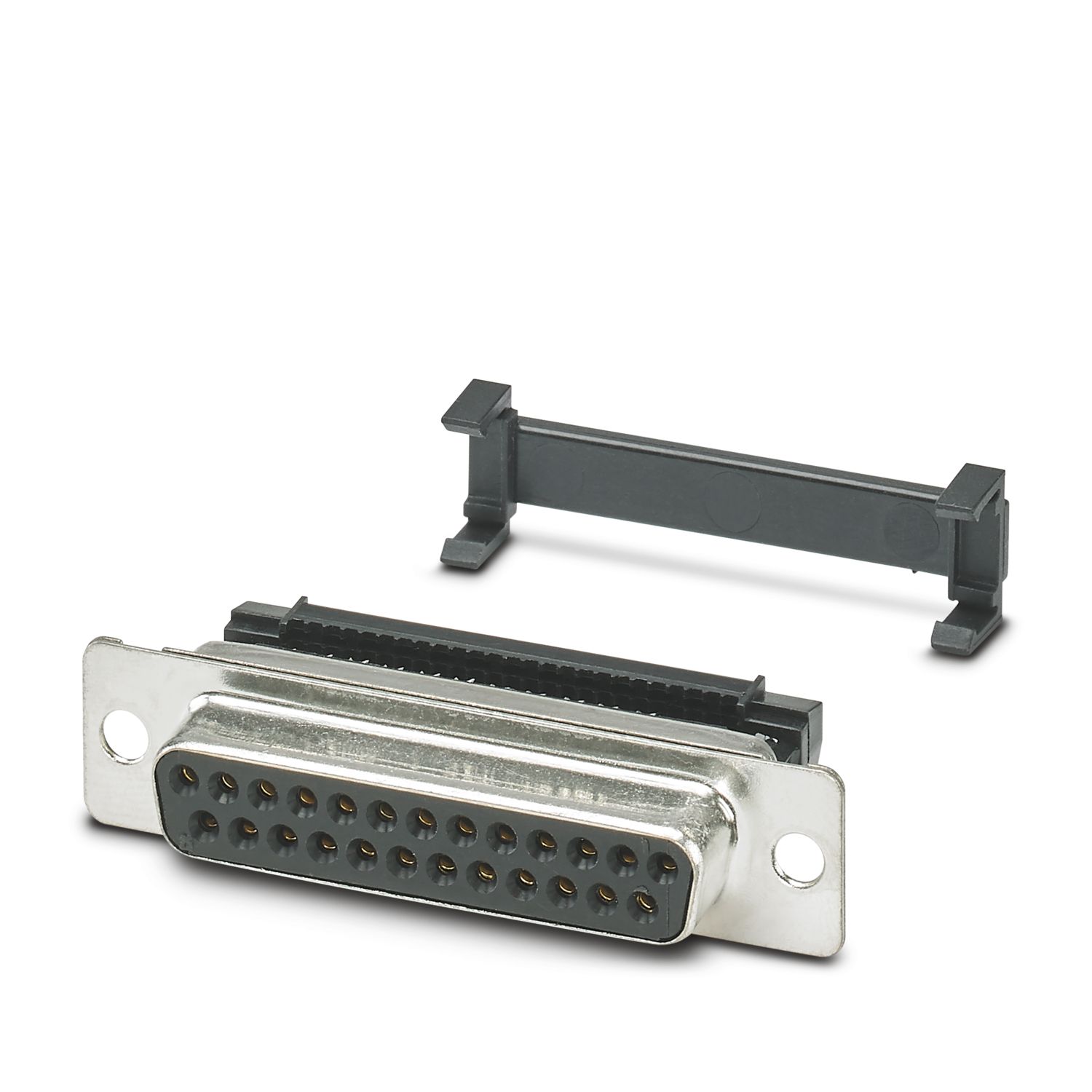

VS-25-ST-DSUB-FK - D-SUB contact insert

1689912

D-SUB contact insert, shell size 3, with 25 signal contacts, type of contact pin, flat-ribbon cable connection, angled, fixing with a 3 mm hole, for panel mounting frame VS-25-...

Product type	Contact insert
Type	D-SUB
Number of positions	25
Connection profile	D-SUB 25
Type	Male
Shielded	no
Insulation characteristics
Overvoltage category	III
Degree of pollution	2

Rated voltage (III/3)	125 V
Rated surge voltage	1 kV
Rated current	1.5 A (at 20 °C)
Test voltage	1000 V
Transmission medium	Copper

Connection method	Flat-ribbon cable connection

Flammability rating according to UL 94	V0
Housing material	Steel, tin-plated
Contact material	Copper alloy
Contact surface material	Hard gold-plated over nickel
Contact carrier material	Polyester GF

Mechanical data
Insertion/withdrawal cycles	≥ 50

Ambient conditions
Ambient temperature (operation)	-55 °C ... 125 °C

Mounting type	Hole

Item number	1689912
Packing unit	10 pc
Minimum order quantity	1 pc
Sales key	AB19
Product key	ABNCAA
Catalog page	Page 213 (C-2-2013)
GTIN	4017918914318
Weight per piece (including packing)	16.81 g
Weight per piece (excluding packing)	11.33 g
Customs tariff number	85366990
Country of origin	DE

Compatible products

Accessories

Your advantages

D-SUB 25 connection

Compatible with IP67 sleeve housing and panel-mount frame

Easy assembly

EU RoHS
Fulfills EU RoHS substance requirements	Yes (No exemptions)
China RoHS
Environment friendly use period (EFUP)	EFUP-E No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%
