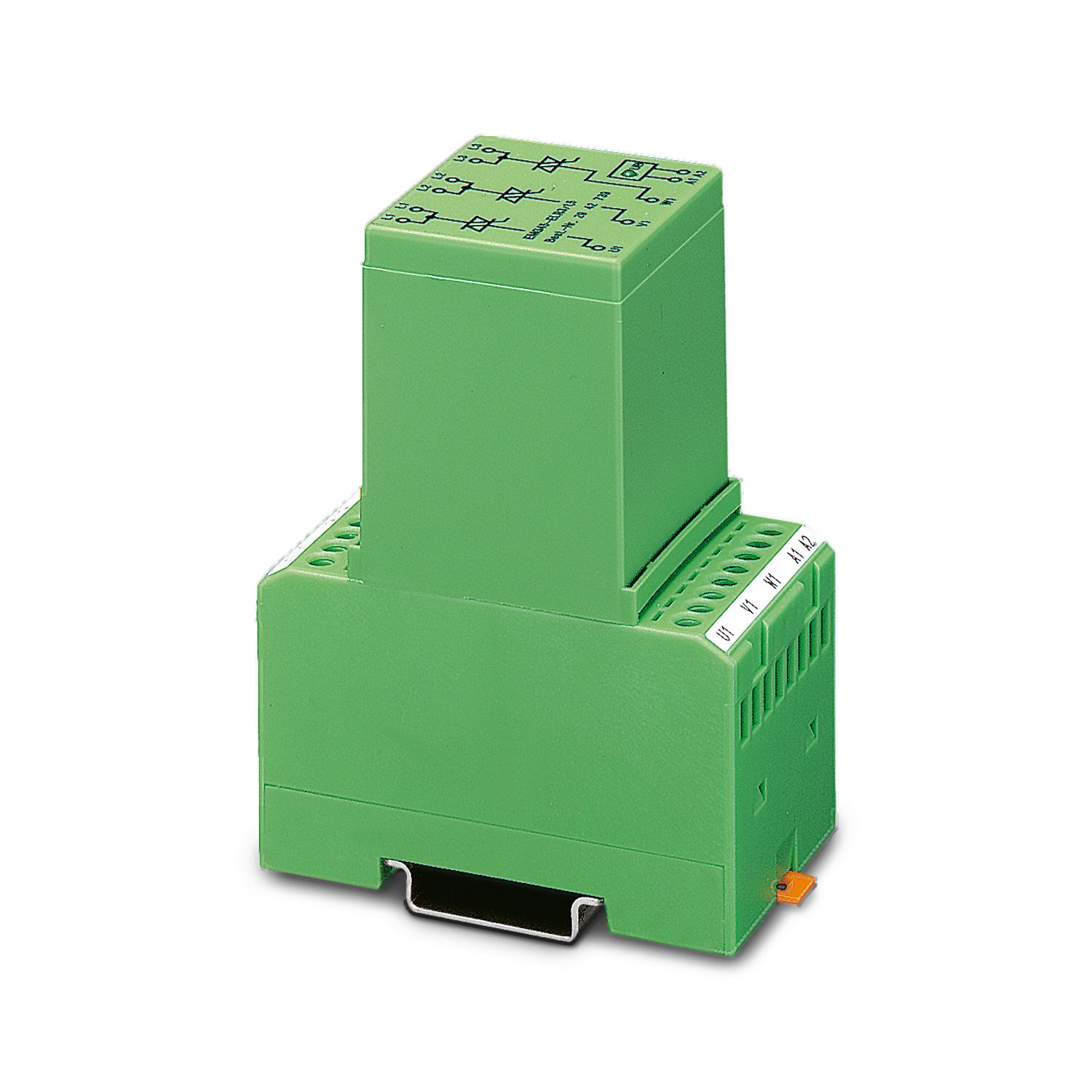

EMG 45-ELR3/1,5
-
Load relay
2942739
Electronic load relay, for direct driving of equipment in the 3-phase network, with light indicator and protection circuit, output: 320 V AC .... 440 V AC/3x 1.5 A
Product details
| Product type | Solid-state contactor |
| Operating mode | 100% operating factor |
| Insulation characteristics: Air clearances and creepage distances between the power circuits | |
| Insulation | Basic insulation |
| Number of phases | 3 |
| Maximum power dissipation for nominal condition | 6 W |
| Mains type | 3-phase |
| Test voltage (Input/output) | 3.5 kV (50 Hz, 60 s) |
| Control | |
| Input name | Control input right/left |
| Typical input current at UN | 20 mA |
| Rated actuating voltage UC | 24 V DC |
| Triggering voltage range | 19.2 V DC ... 28.8 V DC |
| Voltage range with reference to UC | 0.8 ... 1.2 |
| 0.8 ... 1.2 | |
| Reaction time in normal load operation | 20 ms |
| 20 ms | |
| Protective circuit | Reverse polarity protection; Series polarity protection diode |
| Surge protection | |
| Status display | LED (yellow) |
| Transmission frequency | 1 Hz (with ohmic load) |
| 1 Hz (at cos φ = 0.5) | |
| AC output | |
| Rated operating voltage Ue | 400 V AC |
| Operating voltage range | 320 V AC ... 440 V AC |
| Peak offstate voltage | 600 V (Load relay is not suitable for the construction of reversing circuits.) |
| Mains frequency | 50 Hz |
| 60 Hz | |

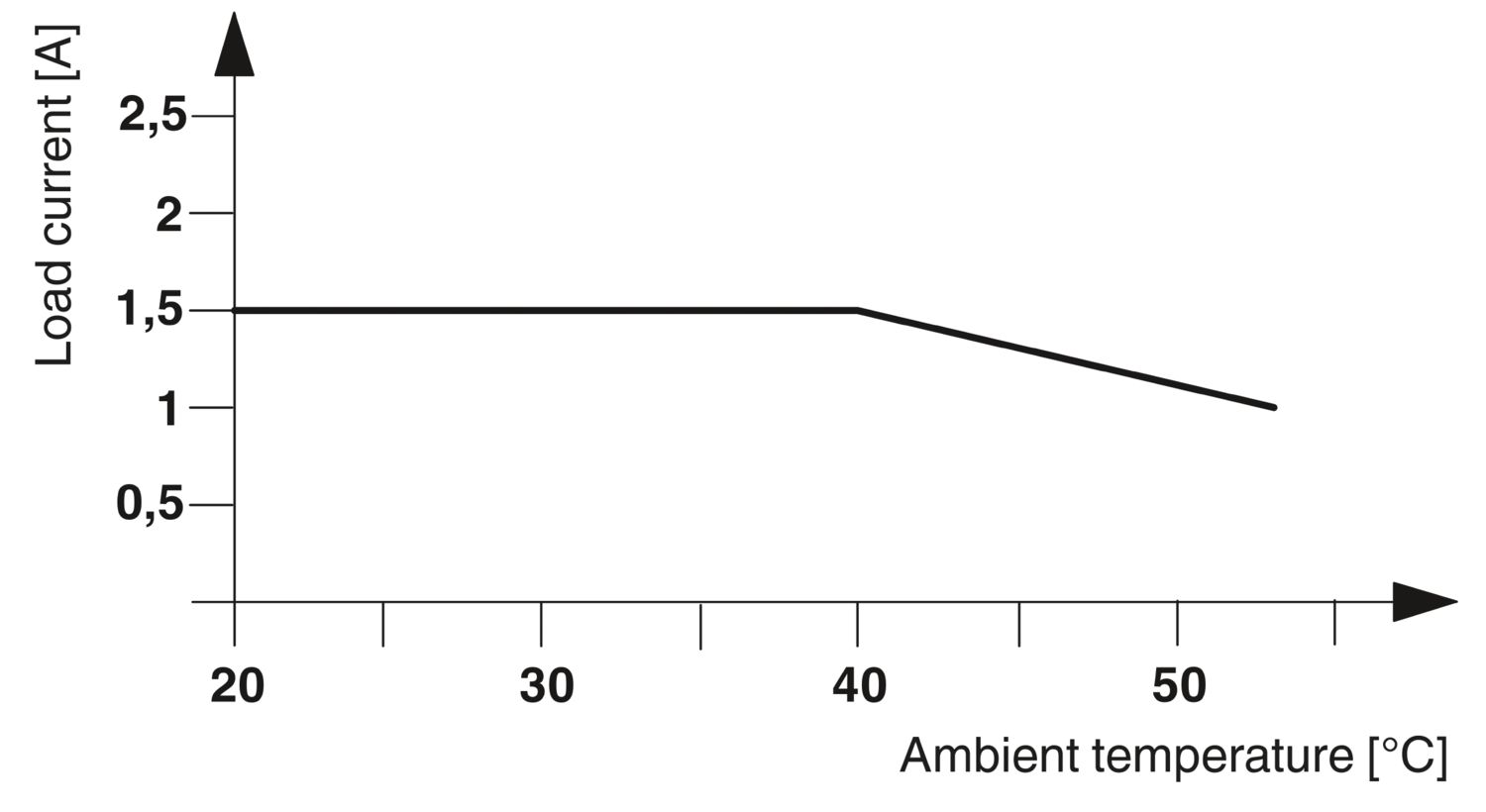

| Continuous load current | max. 1.5 A (see derating curve) |
| Load current range | 50 mA ... 1.5 A (see to derating) |
| Leakage current | typ. 7 mA |
| Residual voltage | typ. 1 V |
| Surge current | 100 A (tp = 10 ms, at 25 °C) |
| Protective circuit | RC element; RC element |
| Surge protection | |
| Control circuits | |
| Connection method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
| Load circuit | |
| Connection method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
| Width | 45 mm |
| Height | 75 mm |
| Depth | 82.5 mm |
| Color | green (RAL 6021) |
| Ambient conditions | |
| Degree of protection | IP20 |
| Ambient temperature (operation) | -20 °C ... 55 °C |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
| Air clearances and creepage distances between the power circuits | |
| Standards/regulations | EN 50178 |
| EMC regulations | |
| Standards/regulations | EN 61000-6-2 |
| EN 61000-6-4 | |
| Mounting type | DIN rail mounting |
| Assembly note | Can be aligned with > 20 mm spacing |
| Mounting position | Vertical (horizontal DIN rail) |
| Item number | 2942739 |
| Packing unit | 1 pc |
| Minimum order quantity | 1 pc |
| Note | Made to order (non-returnable) |
| Sales key | C472 |
| Product key | DK7211 |
| Catalog page | Page 195 (IF-2011) |
| GTIN | 4017918080822 |
| Weight per piece (including packing) | 161 g |
| Weight per piece (excluding packing) | 144.848 g |
| Customs tariff number | 85364900 |
| Country of origin | DE |
| China RoHS | |
| Environment friendly use period (EFUP) |
EFUP-50
An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
|
| EU REACH SVHC | |
| REACH candidate substance (CAS No.) | No substance above 0.1 wt% |
Your advantages
Wear-free
High switching frequency
Protective circuit in input and output
