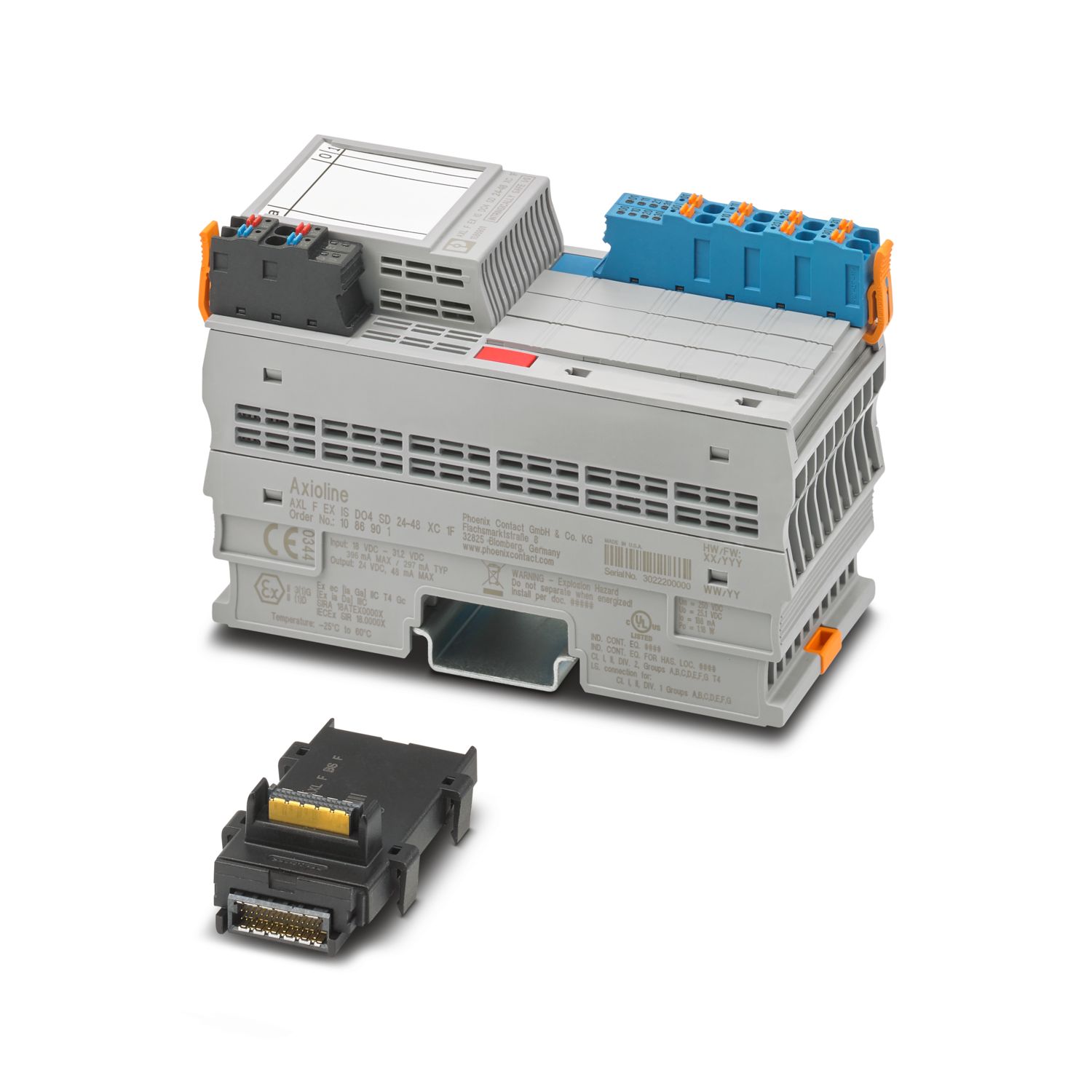

The module is an Axioline F I/O module for use in the Axioline F modular I/O system. The module is a modular I/O device that can be affixed to the Axioline F local bus, to communicate I/O data up to the Axioline F controller or bus coupler, which forms the head of the station. As an intrinsic safety I/O module, this device allows direct connection from intrinsically safe field I/Os to the terminals of the module. The module digital output characteristics of 24 V DC and 48 mA allow the connection of up to four solenoid driven, digital output signals.
AXL F EX IS DO4 SD 24-48 XC 1F
-
Digital module
1086901
Axioline F, Digital output module, Digital outputs: 4, 24 V, connection technology: 2-conductor, Solenoid drive, Extreme conditions version, Intrinsically safe, transmission speed in the local bus: 100 Mbps, degree of protection: IP20, including bus base module and Axioline F connectors
Free download available.
Downloads
Product details

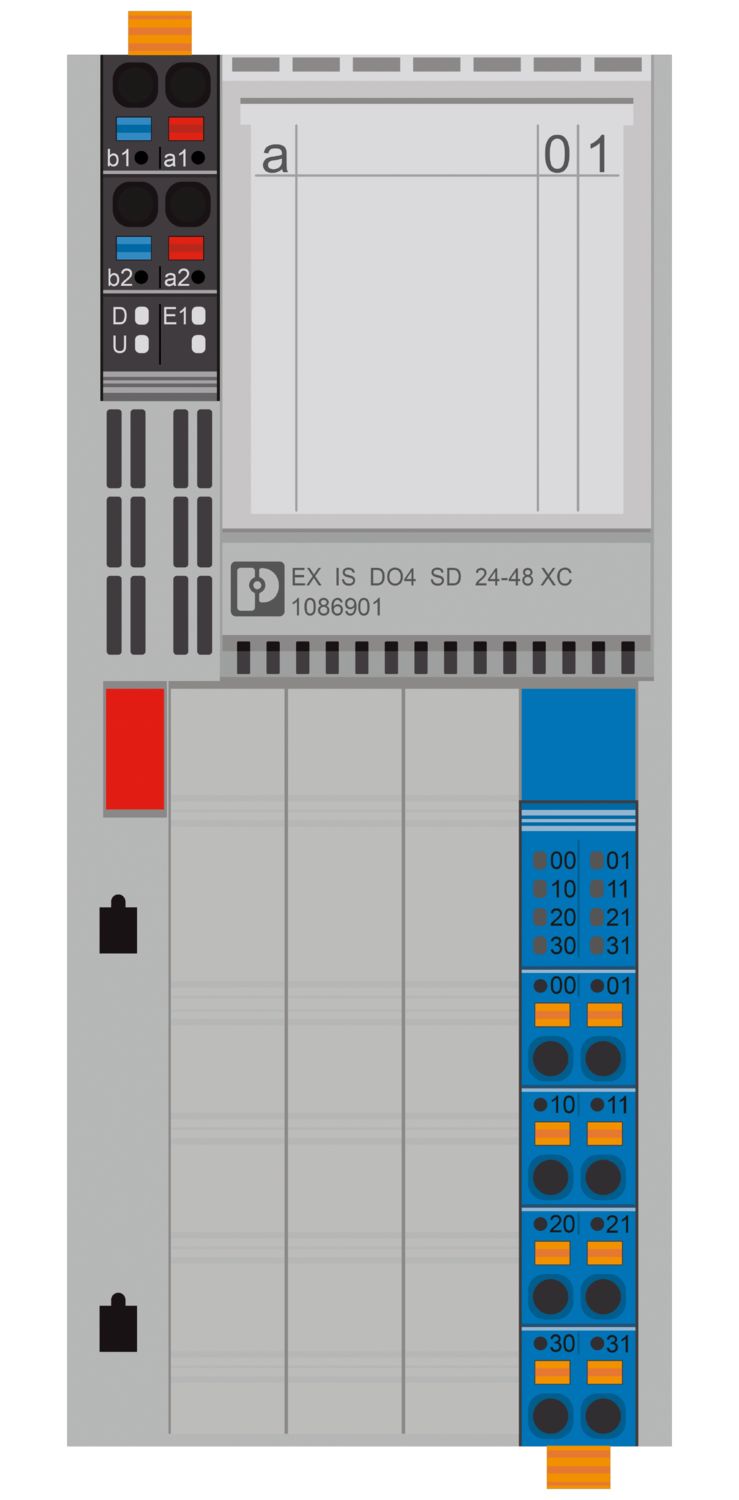

| Dimensional drawing |
|
| Width | 53.6 mm |
| Height | 129.9 mm |
| Depth | 77.14 mm |
| Note on dimensions | The depth applies when a TH 35-7.5 DIN rail is used (in accordance with EN 60715). |
| Note on application | |
| Note on application | Only for industrial use |
| Utilization restriction | |
| EMC note | EMC: class A product, see manufacturer's declaration in the download area |
| Utilization restriction | |
| CCCex note | Use in potentially explosive areas is not permitted in China. |
| Color | traffic grey A RAL 7042 |
| Axioline F local bus | |
| No. of channels | 2 |
| Connection method | Bus base module |
| Transmission speed | 100 Mbps |
| Module | |
| Input address area | 0 Byte |
| Output address area | 1 Byte |
| Required parameter data | 12 Byte |
| Required configuration data | 6 Byte |
| Digital: | |
| Output name | Digital outputs |
| Connection method | Push-in connection |
| Connection technology | 2-conductor |
| Number of outputs | 4 |
| Output voltage | 24 V |
| Maximum output current per channel | 48 mA |
| Nominal output voltage | 24 V |
| Product type | I/O component |
| Product family | Axioline F |
| Type | block modular |
| Scope of delivery | including bus base module and Axioline F connectors |
| Special properties | Solenoid drive |
| Extreme conditions version | |
| Intrinsically safe | |
| Data management status | |
| Article revision | 03 |
| Maximum power dissipation for nominal condition | 5.75 W |
| Potentials: Axioline F local bus supply (UBus) | |
| Supply voltage | 5 V DC (via bus base module) |
| Current draw | max. 60 mA |
| typ. 40 mA | |
| Potentials: Supply for digital output modules (UO) | |
| Supply voltage | 24 V DC |
| Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
| Current draw | max. 420 mA |
| Electrical isolation/isolation of the voltage ranges | |
| Test voltage: 5 V supply of the local bus (UBus) / 24 V supply (I/Os) | 500 V AC, 50 Hz, 1 min. |
| Test voltage: 5 V supply of the local bus (UBus) / functional ground | 500 V AC, 50 Hz, 1 min. |
| Test voltage: 24 V supply (I/O) / functional ground | 500 V AC, 50 Hz, 1 min. |
| Test voltage: Field to functional earth | 500 V AC, 50 Hz, 1 min. |
| Test voltage: Field to 5V or 24V supplies | 1500 V AC, 50 Hz, 1 min. |
| Connection technology | |
| Connection name | Axioline F connector |
| Note on the connection method | Please observe the information provided on conductor cross sections in the “Axioline F: system and installation” user manual. |
| Conductor connection | |
| Connection method | Push-in connection |
| Conductor cross section rigid | 0.2 mm² ... 1.5 mm² |
| Conductor cross section flexible | 0.2 mm² ... 1.5 mm² |
| Conductor cross section AWG | 24 ... 16 |
| Stripping length | 8 mm |
| Axioline F connector | |
| Connection method | Push-in connection |
| Note on the connection method | Please observe the information provided on conductor cross sections in the “Axioline F: system and installation” user manual. |
| Conductor cross section, rigid | 0.2 mm² ... 1.5 mm² |
| Conductor cross section, flexible | 0.2 mm² ... 1.5 mm² |
| Conductor cross section AWG | 24 ... 16 |
| Stripping length | 8 mm |
| Ambient conditions | |
| Ambient temperature (operation) | -25 °C ... 60 °C (Standard) |
| -40 °C ... 70 °C (Extended, see section “Tested successfully: use under extreme ambient conditions” in the data sheet.) | |
| Degree of protection | IP20 |
| Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Permissible humidity (operation) | 5 % ... 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 5 % ... 95 % (non-condensing) |
| Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
| ATEX | |
| Identification | II 3(1) G Ex ec [ia Ga] IIC T4 Gc II (1) D [Ex ia Da] IIIC |
| Certificate | DEMKO 20 ATEX 2370X |
| IECEx | |
| Identification | Ex ec [ia Ga] IIC T4 Gc [Ex ia Da] IIIC |
| Certificate | IECEx UL 20.0044X |
| UKCA Ex (UKEX) | |
| Identification | II 3(1) G Ex ec [ia Ga] IIC T4 Gc II (1) D [Ex ia Da] IIIC |
| Certificate | UL22UKEX2508X |
| UL, USA/Canada | |
| Identification | cULus |
| Certificate | E238705 |
| UL Ex, USA / Canada | |
| Identification | Class I, Division 2, Groups A, B, C, D, T4 |
| Intrinsically safe outputs for: Class I, Groups A, B, C, D; Class II, Groups E, F, G; Class III; [Ex ia] Haz loc | |
| Class I, Zone 2, AEx ec [ia Ga] IIC T4 Gc | |
| [AEx ia Da] IIIC | |
| Ex ec [ia Ga] IIC T4 Gc | |
| [Ex ia Da] IIIC | |
| Certificate | E196811 |
| CCC / China-Ex | |
| Identification | Ex ec [ia Ga] IIC T4 Gc |
| CCC / China-Ex | |
| Identification | [Ex ia Da] IIIC |
| Ex data | |
| UL, USA / Canada | Ind. Cont. Eq. (E238705) also Listed Ind. Cont. Eq. for haz. loc. E196811 Install in: Class I, Div. 2, Groups A, B, C, D T4 Intrinsically safe outputs for: Class I, Groups A, B, C, D; Class II, Groups E, F, G; Class III; [Ex ia] Haz loc Class I, Zone 2, AEx ec [ia Ga] IIC T4 Gc [AEx ia Da] IIIC Ex ec [ia Ga] IIC T4 Gc [Ex ia Da] IIIC |
| Mounting type | DIN rail mounting |
| Safety data | |
| Max. output voltage Uo | 27.3 V |
| Max. output current Io | 99 mA |
| Max. output power Po | 676 mW |
| Safety-related maximum voltage Um | 250 V |
| A, B / IIC: Max. external inductivity Lo / Max. external capacitance Co | 1.189 mH / 0.088 µF |
| C/IIB, IIIC: Max. external inductivity Lo / Max. external capacitance Co | 12.9 mH / 0.683 µF |
| D/IIA, E, F, G, Class III: Max. external inductivity Lo / Max. external capacitance Co | 27.41 mH / 2.28 µF |
cUL Listed
Approval ID: FILE E 238705IECEx
Approval ID: IECEx UL 20.0044XCCC
Approval ID: 2021122316114727cUL Listed
Approval ID: FILE E196811UL Listed
Approval ID: FIILE E196811ATEX
Approval ID: DEMKO 20 ATEX 2370XUKCA-EX
Approval ID: UL22UKEX2508XcULus Listed
cULus Listed
Your advantages
Four 24 V DC - 48 mA digital output-powered control signals for solenoid drives
Intrinsically safe digital outputs with connection to Zone 1, Zone 0 or Division 1
Can be used under extreme ambient conditions
Extended temperature range of -40 °C ... +70 °C (see “Tested successfully: use under extreme ambient conditions” in the data sheet)
