FLM BK PN M12 DI 8 M12-2TX
-
Bus coupler
2736741
The PROFINET bus coupler opens a local bus for up to 16 devices. Additional functions: 100 Mbps, auto negotiation, auto crossover, SNMP, TFTP, LLDP, 8 digital inputs, channel-specific diagnostics, short-circuit/overload protection, M12 fast connection technology.
Free download available.
Downloads
Product details

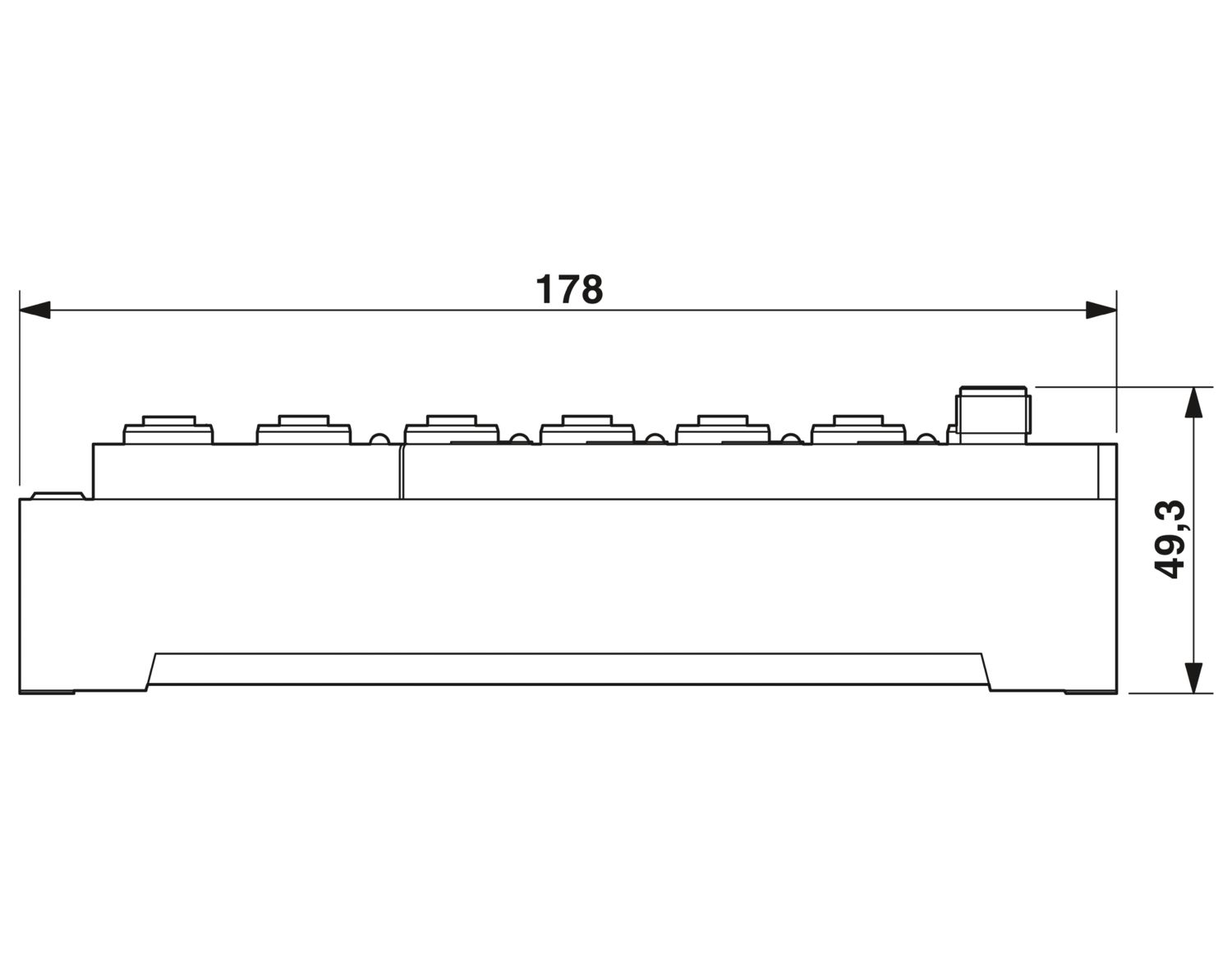

| Dimensional drawing |
|
| Width | 70 mm |
| Height | 178 mm |
| Depth | 50 mm |
| Drill hole spacing | 168 mm |
| Color | anthracite |
| PROFINET | |
| Connection method | M12 connector, D-coded |
| Designation connection point | Copper cable |
| Number of positions | 4 |
| Transmission speed | 100 Mbps (auto negotiation) |
| PROFINET | |
| Transmission speed | 100 Mbps |
| Fieldbus: Local bus gateway | |
| Designation | Local bus gateway |
| Connection method | M12 connector, B-coded |
| Transmission speed | 500 kbaud/2 Mbaud, can be selected |
| Max. length of local bus | 20 m |
| Max. number of local bus devices | 16 |
| System limits | |
| Number of local bus devices that can be connected | max. 16 |
| Number of devices with parameter channel | max. 16 |
| Module | |
| ID code (hex) | none |
| Process data channel | 8 bit |
| Input address area | 8 bit |
| Output address area | 0 bit |
| Register length | 8 bit |
| Digital: | |
| Input name | Digital inputs |
| Description of the input | IEC 61131-2 type 1 |
| Number of inputs | 8 (EN 61131-2 type 1) |
| Connection method | M12 connector |
| Connection technology | 2-, 3-, 4-conductor |
| Input voltage | 24 V DC |
| Input voltage range "0" signal | -30 V DC ... 5 V DC |
| Input voltage range "1" signal | 13 V DC ... 30 V DC |
| Nominal input voltage UIN | 24 V DC |
| Filter time | 3 ms |
| Protective circuit | Short-circuit protection, overload protection of the sensor supply; Reverse polarity protection |
| Product type | I/O component |
| Type | modular |
| No. of channels | 8 |
| Potentials | |
| Voltage supply UL | 24 V DC |
| Power supply at UL | max. 4 A |
| Current consumption from UL | max. 118 mA (At 2 Mbaud) |
| typ. 118 mA (At 2 Mbaud) | |
| max. 60 mA (At 500 kBaud) | |
| typ. 60 mA (At 500 kBaud) | |
| Voltage supply US | 24 V DC |
| Power supply at US | max. 4 A |
| Current consumption from US | typ. 5 mA (plus power supply for sensors) |
| max. 600 mA | |
| Potentials | |
| Supply voltage | 24 V DC |
| Supply voltage range | 18 V DC ... 30 V DC |
| Potentials | |
| Supply voltage | 24 V DC |
| Supply: Module electronics | |
| Connection method | M12 connector |
| Designation | UL |
| Supply voltage | 24 V DC |
| Supply voltage range | 18 V DC ... 30 V DC (including ripple) |
| Supply current | < 100 mA |
| Electrical isolation/isolation of the voltage ranges | |
| Test voltage: To I/O | 500 V DC |
| Connection method | M12 connector |
| Ambient conditions | |
| Ambient temperature (operation) | -25 °C ... 55 °C |
| Degree of protection | IP65/IP67 |
| Note | Seal unused slots/connections to ensure the degree of protection. |
| Air pressure (operation) | 80 kPa ... 106 kPa (up to 2000 m above sea level) |
| Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Ambient temperature (storage/transport) | -25 °C ... 85 °C |
| Permissible humidity (storage/transport) | 95 % |
| Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
| Mounting type | Panel mounting, optionally on mounting panel |
| Panel mounting |

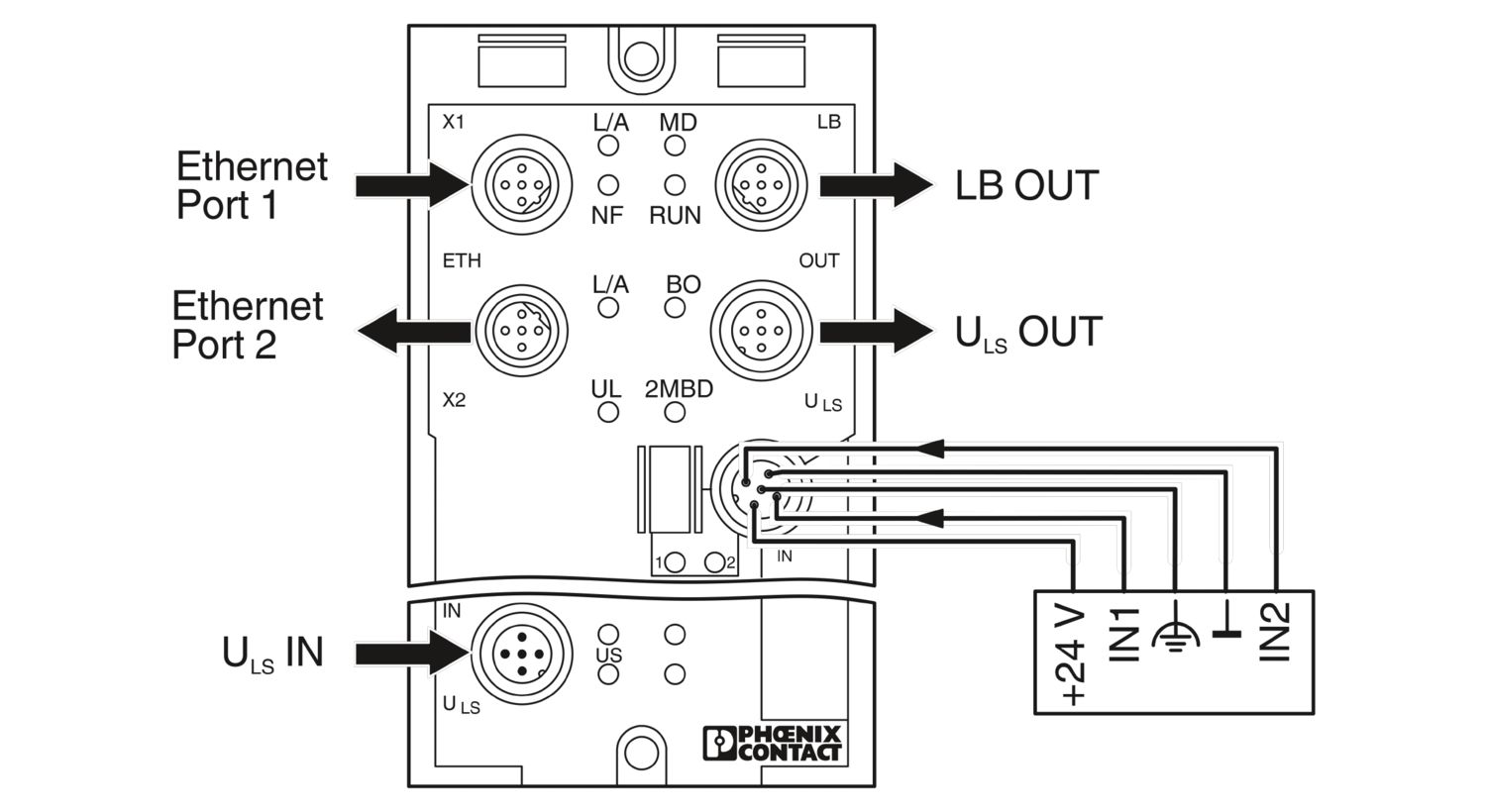

Your advantages
PROFINET
8 inputs, 24 V DC
M12 connection technology with SPEEDCON fast locking system
