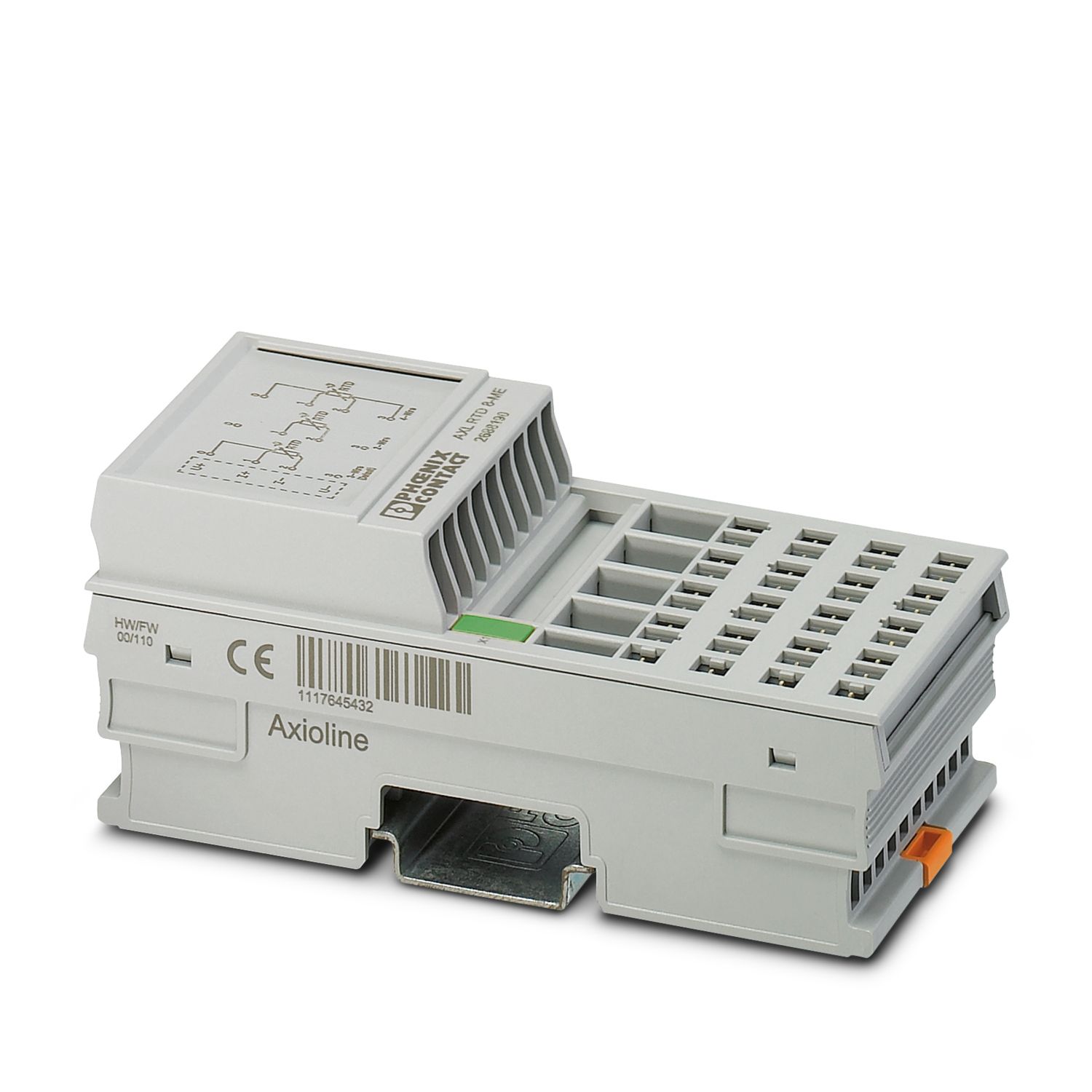

AXL RTD 8-ME - I/O module

2688190

Axioline temperature module, 8 inputs for the connection of resistance temperature detectors (electronics module as replacement for article 2688077 AXL RTD 8)

Color	gray

Axioline F local bus
Connection method	Bus base module
Transmission speed	100 Mbps

Analog
Input name	Analog inputs
Description of the input	Inputs for resistive temperature sensors
Number of inputs	8 (for resistance temperature detectors)
Connection method	Spring-cage connection with direct connector-in method
Connection technology	2-, 3-, 4-conductor (shielded)
A/D converter resolution	24 bit
Sensor types (RTD) that can be used	Pt, Ni, KTY, Cu sensors
Data formats	IB IL, S7-compatible
Measured value representation	16 bits (15 bits + sign bit)
Input filter time	40 ms
	60 ms
	100 ms
	120 ms (adjustable)
Nominal value of the current sources	1 mA (Pt 100, Ni 100, R_Lin 500 Ω; pulse current, the specification is valid during the sampling phase)
	210 µA (Pt 1000, Ni 1000, R_Lin 5000 Ω; pulse current, the specification is valid during the sampling phase)
Differential non-linearity	typ. 1 ppm / ±0.0001 % (in all ranges)
Integral non-linearity	typ. 30 ppm / ±0.003 % (Pt 100)
	typ. 20 ppm / ±0.002 % (R_Lin 500 Ω)
	typ. 200 ppm / ±0.02 % (R_Lin 5000 Ω)
Linear resistance measuring range	0 Ω ... 500 Ω
	0 kΩ ... 5 kΩ
Protective circuit	Short-circuit protection, overload protection of the inputs
	Transient protection of inputs
	Transient protection of sensor supplies

Product type	I/O component
Type	block modular
Mounting position	any (no temperature derating)

Potentials
Power consumption	typ. 0.94 W (at U_Bus and U_A)
	max. 1.5 W (at U_Bus and U_A)
Protective circuit	Surge protection of the supply voltage; electronic (35 V, 0.5 s)
	Polarity reversal protection of the supply voltage; Polarity protection diode
	Transient protection; Suppressor diode
Potentials
Supply voltage	5 V DC (via bus base module)
Current draw	max. 180 mA
	typ. 115 mA
Power consumption	max. 0.9 W
	typ. 0.58 W
Potentials: Supply for analog modules (U_A)
Supply voltage	24 V DC
Supply voltage range	19.2 V DC ... 30 V DC (including all tolerances, including ripple)
Current draw	max. 25 mA
	typ. 15 mA
Power consumption	max. 0.6 W
Electrical isolation/isolation of the voltage ranges
Test voltage: 5 V supply of the local bus (U_Bus) / 24 V supply (I/Os)	500 V AC, 50 Hz, 1 min
Test voltage: 5 V supply of the local bus (U_Bus) / functional ground	500 V AC, 50 Hz, 1 min
Test voltage: 24 V supply (I/O) / functional ground	500 V AC, 50 Hz, 1 min

Connection technology
Connection name	Axioline F connector
Conductor connection
Connection method	Push-in connection
Conductor cross section rigid	0.2 mm² ... 1.5 mm²
Conductor cross section flexible	0.2 mm² ... 1.5 mm²
Conductor cross section AWG	24 ... 16
Axioline F connector
Connection method	Push-in connection
Conductor cross section, rigid	0.2 mm² ... 1.5 mm²
Conductor cross section, flexible	0.2 mm² ... 1.5 mm²
Conductor cross section AWG	24 ... 16

Ambient conditions
Ambient temperature (operation)	-25 °C ... 60 °C
Degree of protection	IP20
Air pressure (operation)	70 kPa ... 106 kPa (up to 3000 m above sea level)
Air pressure (storage/transport)	70 kPa ... 106 kPa (up to 3000 m above sea level)
Ambient temperature (storage/transport)	-40 °C ... 85 °C
Permissible humidity (operation)	5 % ... 95 % (according to DIN EN 61131-2)
Permissible humidity (storage/transport)	5 % ... 95 % (according to DIN EN 61131-2)

Protection class	III (IEC 61140, EN 61140, VDE 0140-1)

Mounting type	DIN rail mounting
Mounting position	any (no temperature derating)

Item number	2688190
Packing unit	1 pc
Minimum order quantity	1 pc
Product key	DRI243
GTIN	4046356572453
Weight per piece (including packing)	444 g
Weight per piece (excluding packing)	444 g
Country of origin	DE

Compatible products

Accessories

Your advantages

8 analog input channels for the connection of resistance temperature detectors (RTD)

Diagnostic and status indicators

Device rating plate stored

Short-circuit protected inputs

Programmable filters

Measured value display in 16-bit format or floating point format

Standardized measured value representation directly in °C, °F or Ω

Integrated, digital sensor linearization

500 Ω and 5 kΩ linear inputs

Connection of sensors in 2-, 3-, and 4-conductor technology

Low noise emission

Installation monitoring by means of “Channel scout” function

Very high level of noise immunity

Temperature stability
