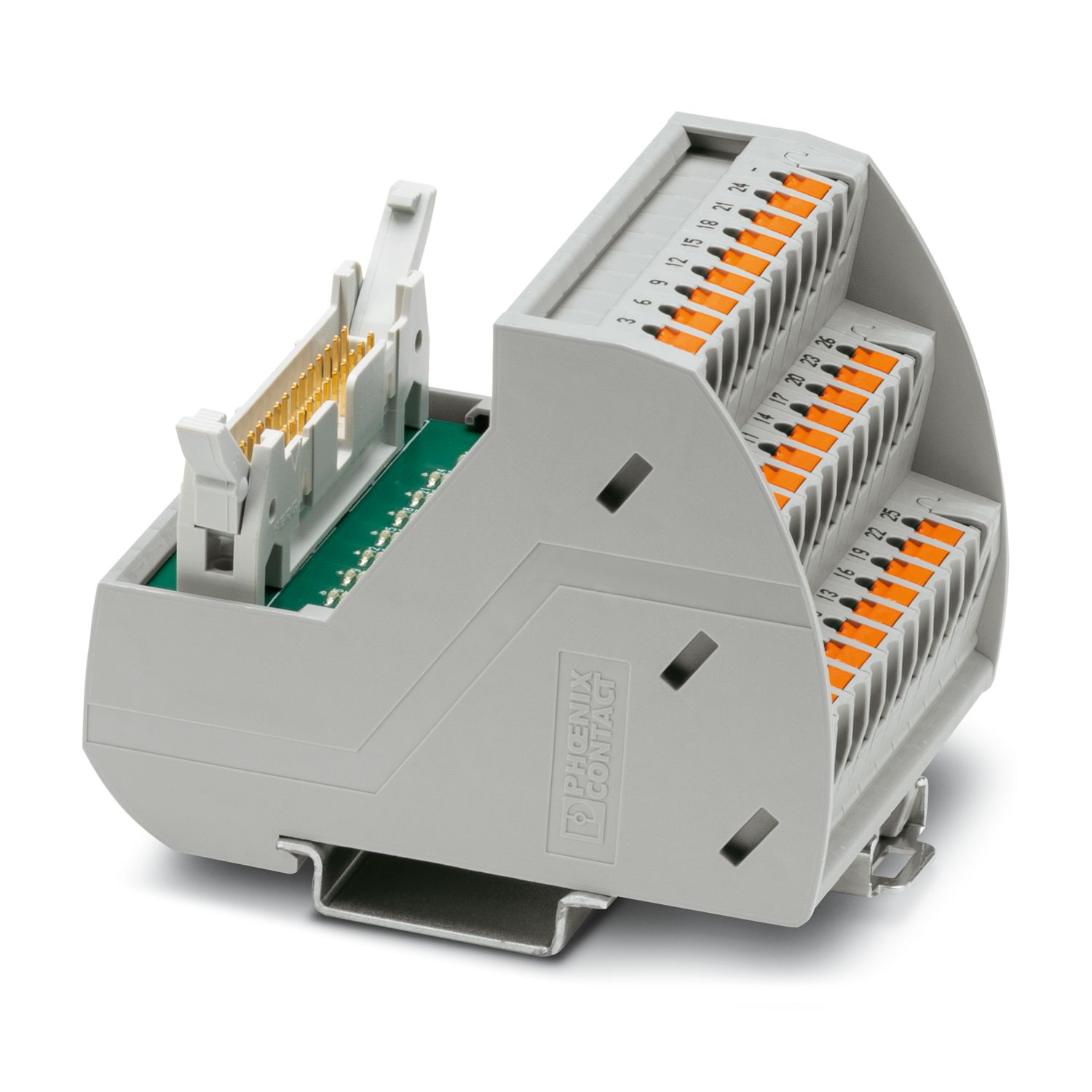

VARIOFACE module, with push-in connection and flat-ribbon cable connector, for mounting on NS 35 rails, with pin strip and short and long locking latches for socket strips, 26-pos., with LED
Product details
Product type
Interface module
Product family
VARIOFACE Professional
Number of positions
26
Insulation characteristics
Overvoltage category
II
Pollution degree
2
Nominal voltage UN
24 V DC
Max. current carrying capacity per branch
1 A
Field level
Connection method
Push-in connection
Stripping length
8 mm
Conductor cross-section rigid
0.14 mm² ... 2.5 mm²
Conductor cross-section flexible
0.14 mm² ... 2.5 mm²
Conductor cross-section AWG
26 ... 14
Controller level
Connection method
IDC/FLK pin strip
Number of connections
1
Number of positions
26
Pitch
2.54 mm
Status display
LED
Status display present
yes
Item dimensions
Width
57.1 mm
Height
75.8 mm
Depth
63 mm
Color
gray (RAL 7042)
Flammability rating according to UL 94
V0
Housing insulation material
Polyamide PA non-reinforced
Ambient conditions
Ambient temperature (operation)
-20 °C ... 50 °C
Ambient temperature (storage/transport)
-20 °C ... 70 °C
Standards/regulations
IEC 60664
DIN EN 50178
Mounting type
DIN rail mounting
Mounting position
any
Notes on operation
For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.
Item number
2904252
Packing unit
1 pc
Note
Made to order (non-returnable)
Sales key
C423
Product key
DK2121
GTIN
4046356813631
Weight per piece (including packing)
154.4 g
Weight per piece (excluding packing)
154.1 g
Customs tariff number
85366990
Country of origin
US
UNSPSC
UNSPSC 21.0
39121432
China RoHS
Environment friendly use period (EFUP)
EFUP-50
An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
