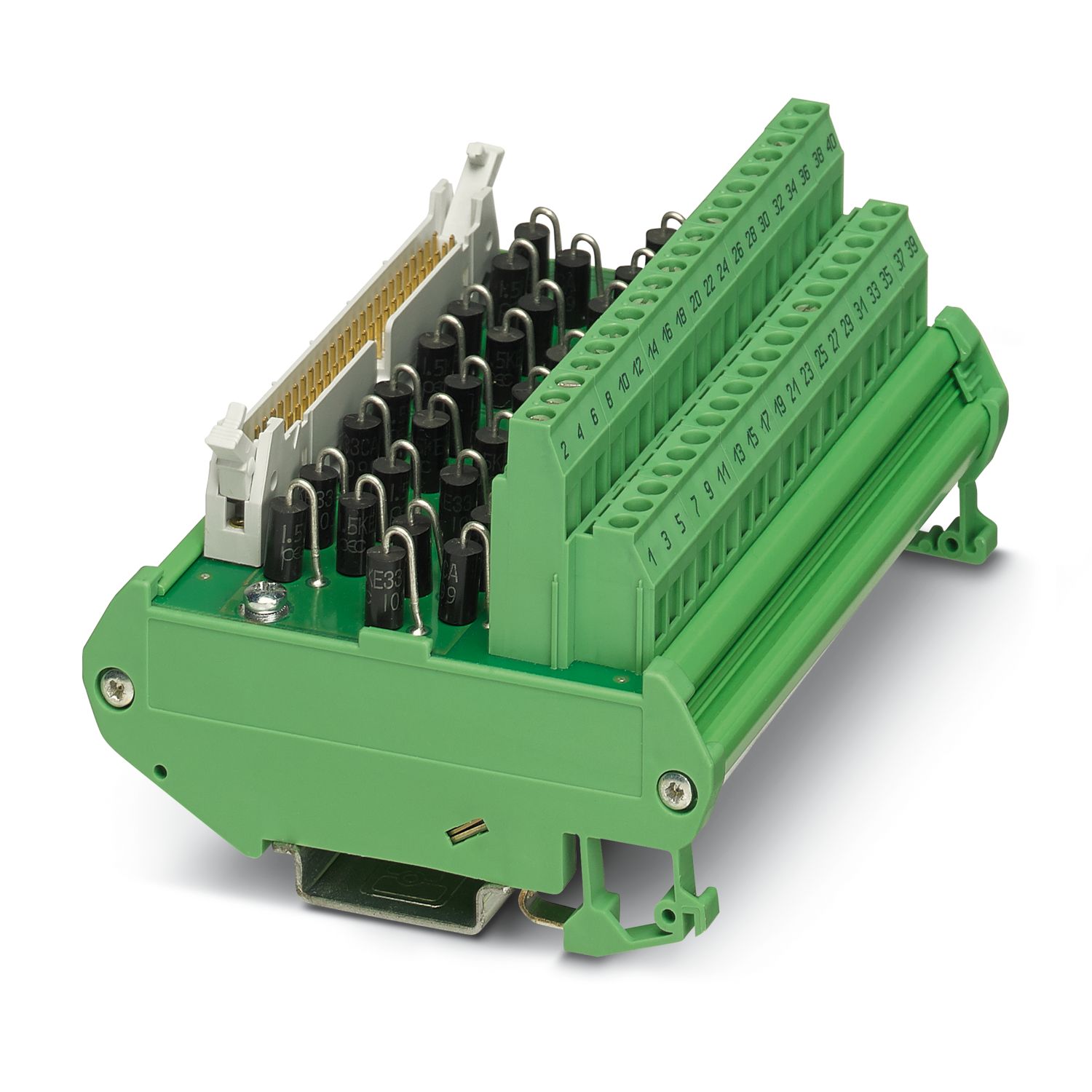

UM72-FLK50/S7-300/SC058 - Termination board

UM72-FLK50/S7-300/SC058 - Termination board

2906245

VARIOFACE diode module, with suppressor diodes and screw connection, on a 50-pos. flat-ribbon cable pin strip

Product details

Expand all Collapse all

Technical data

Product properties

Product type	Interface module
Insulation characteristics: Air clearances and creepage distances
Insulation	Functional insulation
Overvoltage category	II
Pollution degree	2

Electrical properties

Nominal voltage U_N	24 V AC/DC
Max. current carrying capacity per branch	1 A
Max. total current of all branches	8 A
Air clearances and creepage distances
Rated insulation voltage	50 V
Rated surge voltage	0.5 kV (1.2/50 μs)

Connection data

Control side
Connection method	Flat-ribbon cable connectors, pin strip
Field level
Connection method	Screw terminal block
Number of positions	40
Conductor cross section rigid	0.2 mm² ... 4 mm²
Conductor cross section flexible	0.2 mm² ... 2.5 mm²
Conductor cross section AWG	24 ... 12

Dimensions

Item dimensions
Width	113 mm
Height	90 mm
Depth	75 mm

Environmental and real-life conditions

Ambient conditions
Ambient temperature (operation)	-20 °C ... 50 °C

Standards and regulations

Air clearances and creepage distances
Standards/regulations	EN 50178

Mounting

Mounting type	DIN rail mounting
Mounting position	any

Notes

Notes on operation	For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.

Commercial data

Item number	2906245
Packing unit	1 pc
Minimum order quantity	50 pc
Product key	DK2A8S
GTIN	4055626051062
Weight per piece (including packing)	259.4 g
Weight per piece (excluding packing)	259.4 g
Country of origin	DE

Environmental product compliance

China RoHS
Environment friendly use period (EFUP)	EFUP-50 An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%
