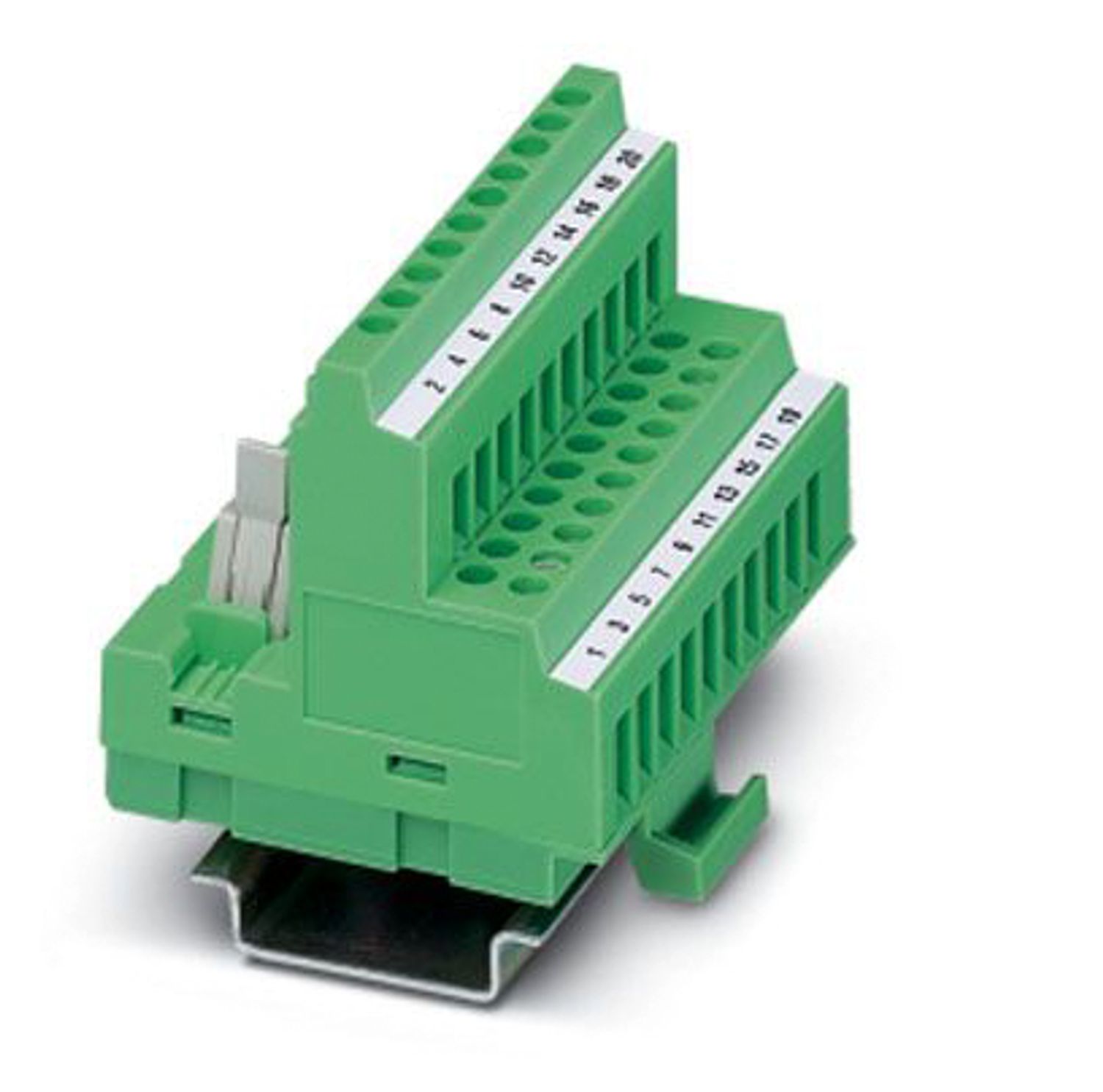

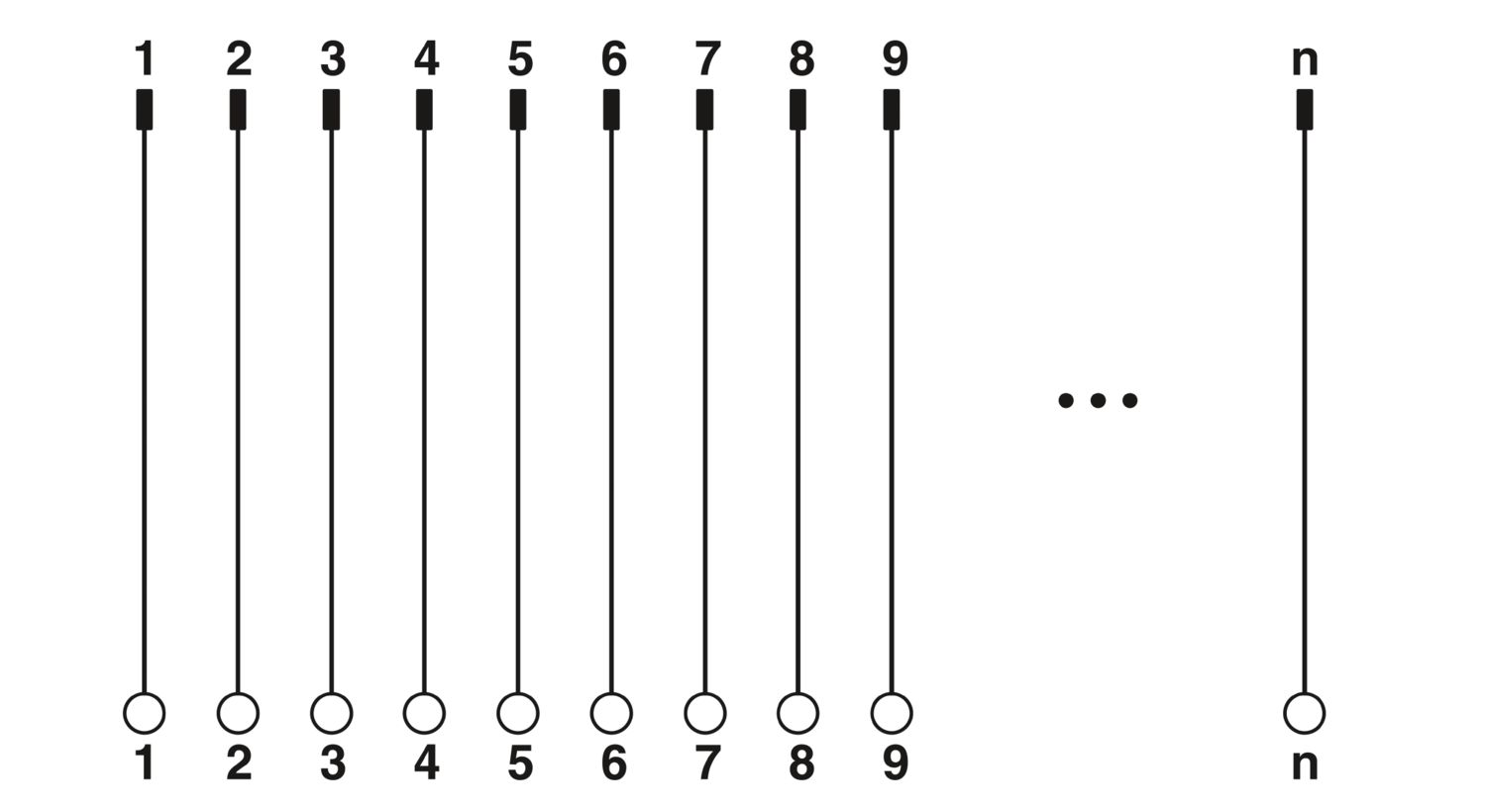

VARIOFACE module, with screw connection and flat-ribbon cable connector, for mounting on NS 32 or NS 35/7.5, with male connector and short and long locking latches for sockets, 20-pos. (separate test socket for each channel)
Product details
Product type
Interface module
Number of positions
20
Insulation characteristics
Overvoltage category
II
Pollution degree
2
Nominal voltage UN
< 50 V AC
60 V DC
Max. current carrying capacity per branch
1 A
PCB connection
Connection in acc. with standard
IEC / EN
Connection method
Screw connection
Stripping length
8 mm
Screw thread
M3
Conductor cross section rigid
0.2 mm² ... 4 mm²
Conductor cross section flexible
0.2 mm² ... 2.5 mm²
Conductor cross section AWG
24 ... 12
Controller level
Connection method
IDC/FLK pin strip
Number of positions
20
Pitch
2.54 mm
Status display
no
Status display present
no
Item dimensions
Width
60 mm
Height
50 mm
Depth
58.5 mm
Color
green (RAL 6021)
Housing insulation material
Polyamide 6 green
Ambient conditions
Ambient temperature (operation)
-20 °C ... 50 °C
Ambient temperature (storage/transport)
-20 °C ... 70 °C
Standards/regulations
IEC 60664
DIN EN 50178
Mounting type
DIN rail mounting
Mounting position
any
Notes on operation
For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.
