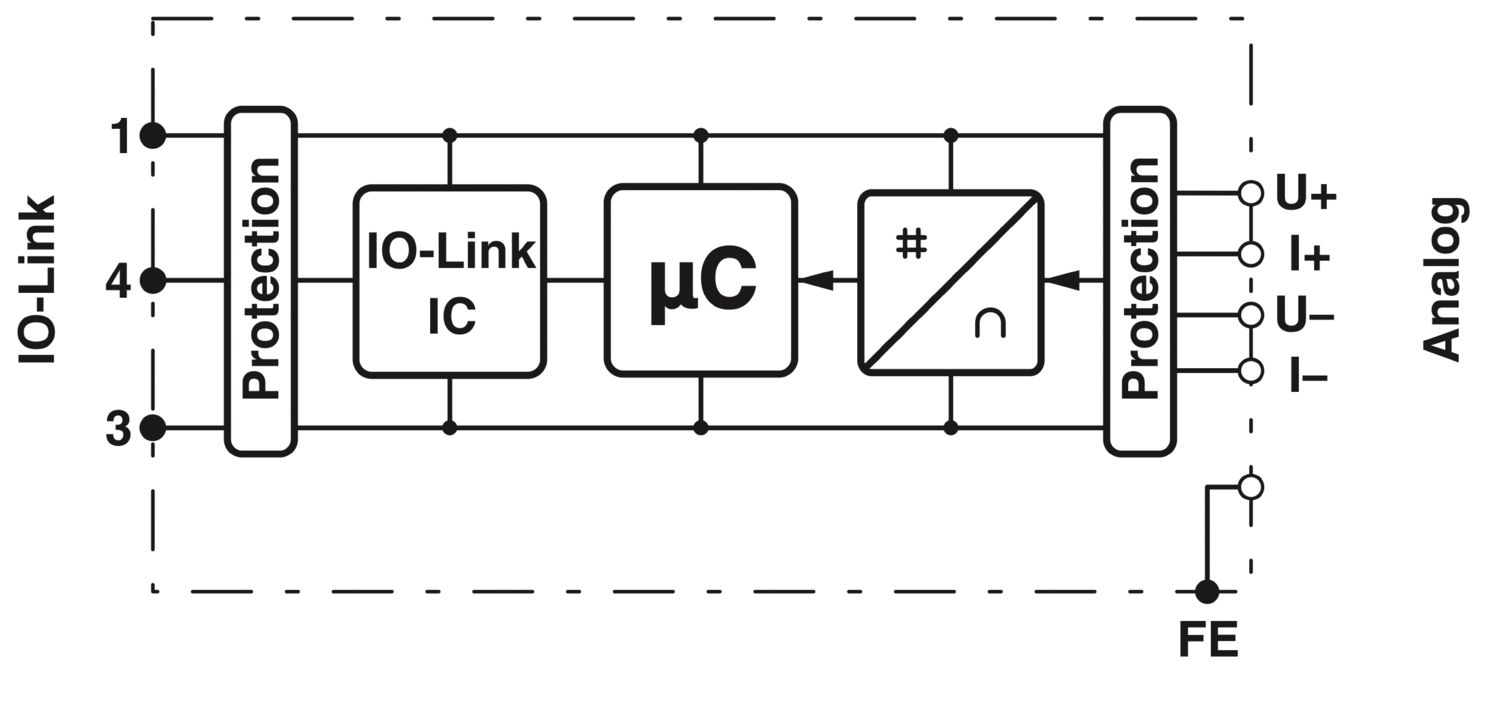

The IO-Link/analog converter is an IO-Link device that converts analog signals into the IO-Link protocol. It therefore enables you to acquire the signals of analog sensors via an IO-Link master.
AXL E IOL RTD1 M12 S
-
Analog module
2700352
Axioline E IO-Link/analog converter for connecting a temperature measuring resistor, M12 connectors, straight version
Free download available.
Downloads
Product details
| Note on application | |
| Note on application | Only for industrial use |
| Utilization restriction | |
| EMC note | EMC: class A product, see manufacturer's declaration in the download area |
| Product type | Interface converter |
| Product family | Axioline E |
| Type | Stand-Alone |
| Axioline E | |
| Type | straight |
| Diagnostics messages | Overrange or underrange Message in the diagnostic code (in the IB IL format) |
| Measured value invalid/no valid measured value present Message in the diagnostic code (in the IB IL format) | |
| Configuration invalid Message in the diagnostic code (in the IB IL format) | |
| Module faulty Message in the diagnostic code (in the IB IL format) | |
| Insulation characteristics | |
| Pollution degree | 2 |
| Supply: IO-Link | |
| Nominal voltage for I/O supply | 24 V DC (This supply voltage is provided via the IO-Link interface of the IO-Link master.) |
| Current consumption | typ. 16.5 mA ±15 % (at 24 V DC) |
| max. 25 mA | |
| Protective circuit | Reverse polarity protection |
| Short-circuit protection | |
| Overload protection | |
| IO-Link | |
| Number of ports | 1 |
| Connection method | M12 connector, A-coded |
| Connection technology | 3-conductor |
| Specification | V1.1.1 |
| Reverse polarity protection | yes |
| Cycle Time | min. 2 ms |
| Amount of process data | 16 bit (Input data) |
| 16 bit (Output data) | |
| Analog | |
| Input name | Analog RTD input |
| Description of the input | Input for resistive temperature sensors |
| Number of inputs | 1 (for resistance temperature detectors) |
| Connection method | M12 connector, A-coded |
| Connection technology | 3-conductor (4-conductor as an option) |
| A/D converter resolution | 12 bit |
| Sensor types (RTD) that can be used | Pt 100, Pt 1000 |
| Data formats | IB IL, S7-compatible |
| Linear resistance measuring range | 0 Ω ... 500 Ω (IB IL format) |
| 0 Ω ... 5 kΩ (IB IL format) | |
| 0 Ω ... 600 Ω (Format S7 compatible) | |
| 0 Ω ... 6 kΩ (Format S7 compatible) | |
| Protective circuit | Reverse polarity protection |
| Short-circuit protection | |
| Overload protection | |
| Diagnostic messages | |
| Diagnostics | Overrange or underrange |
| Message | Message in the diagnostic code (in the IB IL format) |
| Diagnostic messages | |
| Diagnostics | Measured value invalid/no valid measured value present |
| Message | Message in the diagnostic code (in the IB IL format) |
| Diagnostic messages | |
| Diagnostics | Configuration invalid |
| Message | Message in the diagnostic code (in the IB IL format) |
| Diagnostic messages | |
| Diagnostics | Module faulty |
| Message | Message in the diagnostic code (in the IB IL format) |
| Dimensional drawing |
|
| Width | 16.6 mm |
| Height | 29 mm |
| Depth | 79.5 mm |
| Ambient conditions | |
| Ambient temperature (operation) | -25 °C ... 60 °C |
| Degree of protection | IP65/IP67 |
| Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Ambient temperature (storage/transport) | -25 °C ... 85 °C |
| Permissible humidity (operation) | 5 % ... 95 % |
| Permissible humidity (storage/transport) | 5 % ... 95 % |
| Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
cUL Listed
Approval ID: E140324
Your advantages
Connection to an IO-Link master with M12 connector (A-coded, 4-pos.)
1 IO-Link interface
IO-Link A port
IO-Link specification V1.1.1
Straight version
1 analog input for connecting resistance temperature detectors (RTDs)

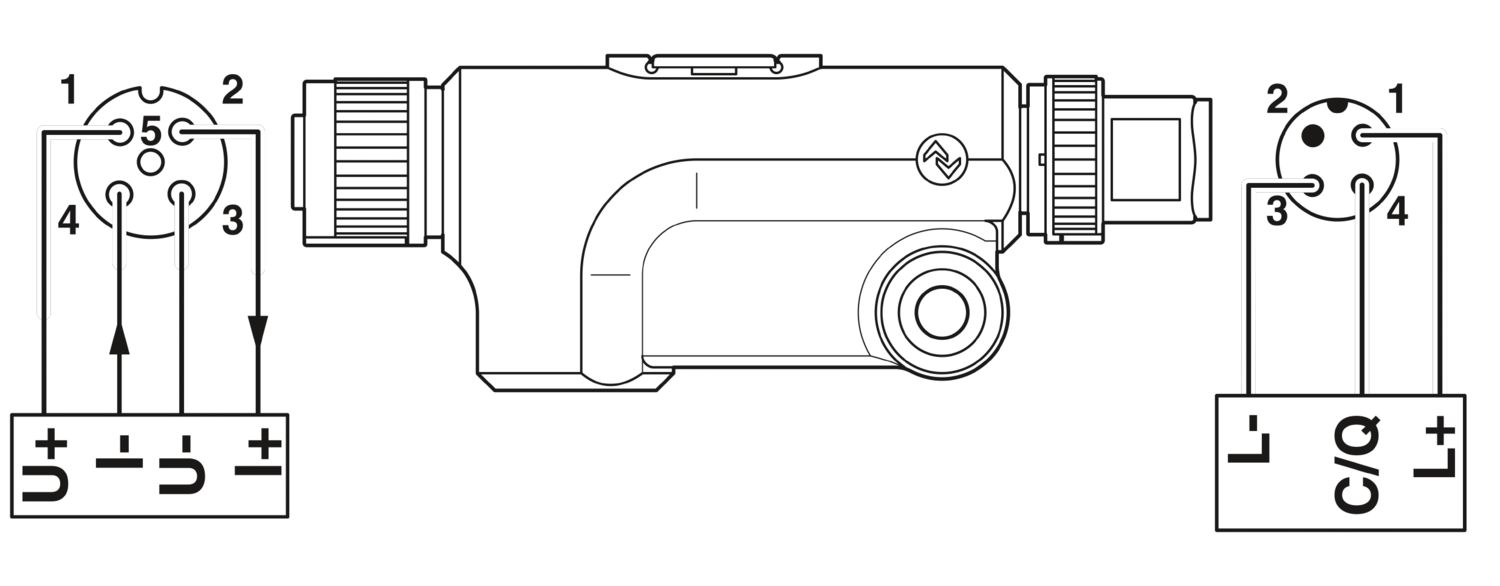

Connection of the sensor in 3- or 4-conductor technology via an M12 connector (A-coded, 5-pos.)
Voltage range: 0 V ... 10 V
Functional ground connection for local connection to functional ground
Supply of the module electronics and the sensor via the IO-Link interface of the IO-Link master
Local status indicator
IP65/IP67 degree of protection
