HC-STA-D07-SHOWS-1SGM20-PL-BK
-
Housing
1419267

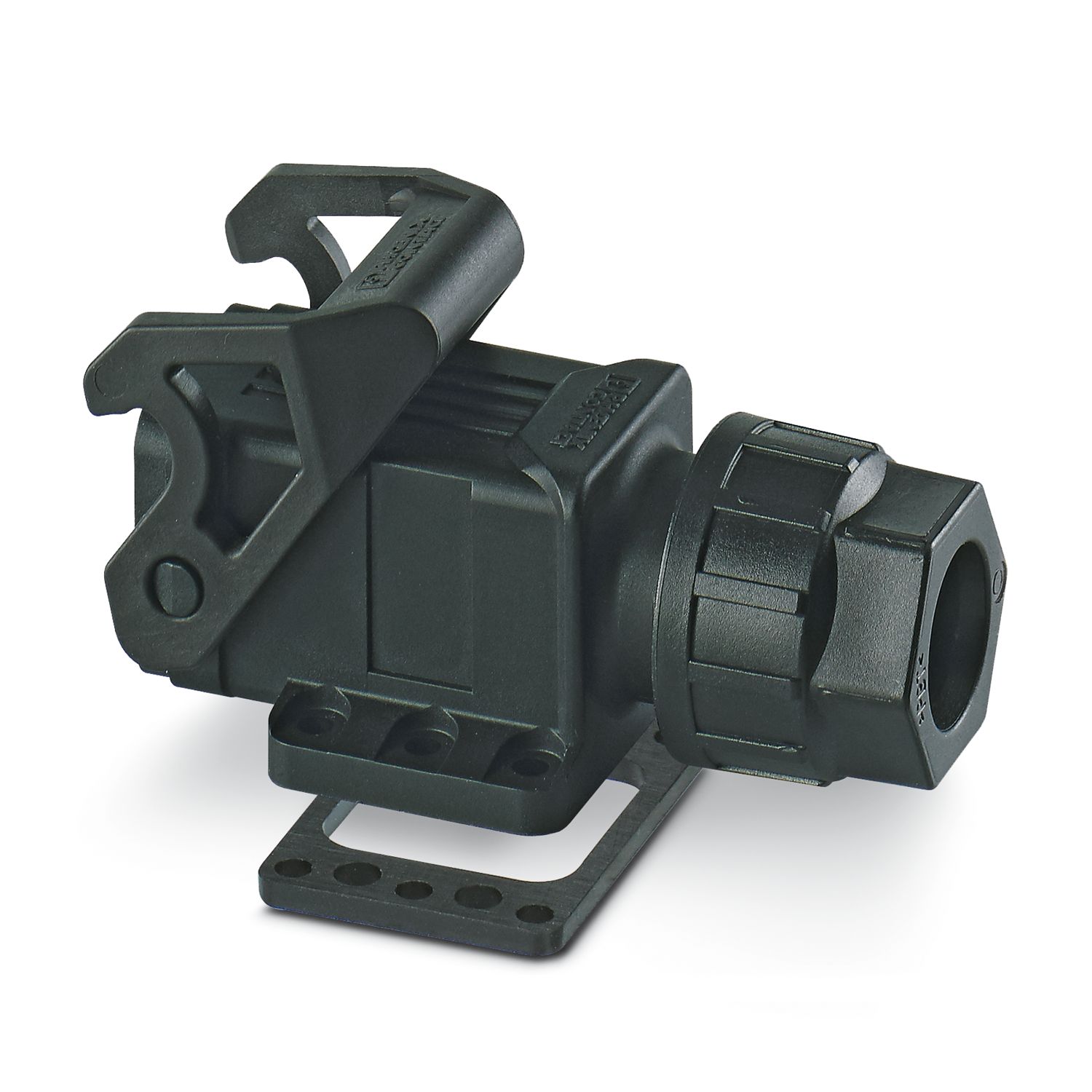

Surface mounting housing D7, with single locking latch, material: PA, cable outlets: 1, straight, M20, height: 27.9 mm, cable gland: with, Standard, open floor
Product details
| General | for contact inserts HC-A03, A04, D07, D08, Q02, Q03, Q04, Q05, Q07, Q12 |
| Product type | Housing with locking latch |
| Housing type | Surface mounting housing |
| Product family | HC-STA-D07 |
| Application | Standard |
| Type | D7 |
| No. of cable outlets | 1 |
| Type of the screw connection | M20 |
| Shielded | no |
| Cable outlet | straight |
| Pg screw connection | with |

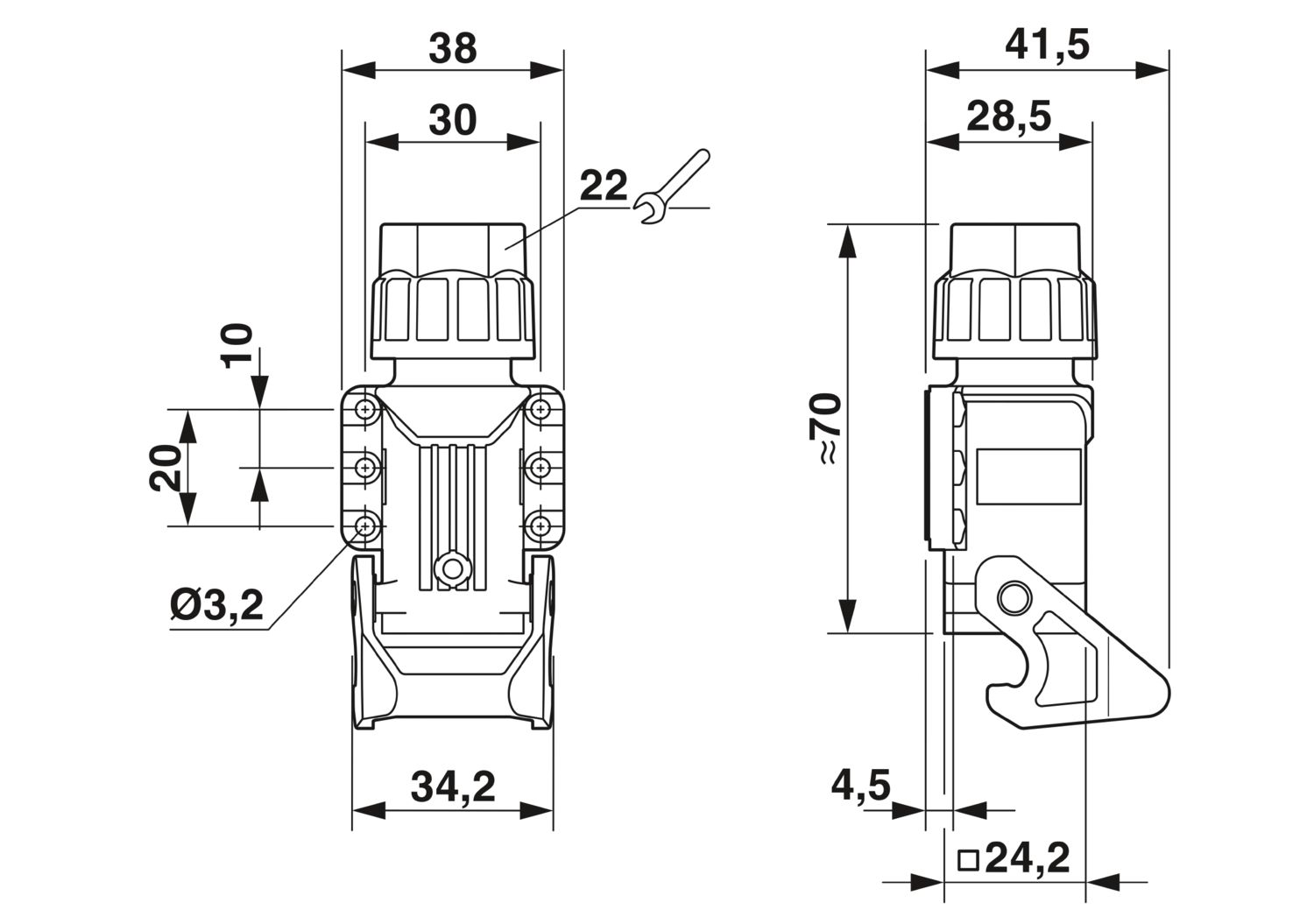

| Dimensional drawing |
|
| Width | 38 mm |
| Height | 27.9 mm |
| Length | 24.2 mm |
| Drill hole distance, horizontal | 30 mm |
| Hole diameter | 3.2 mm |
| Installation dimensions | |

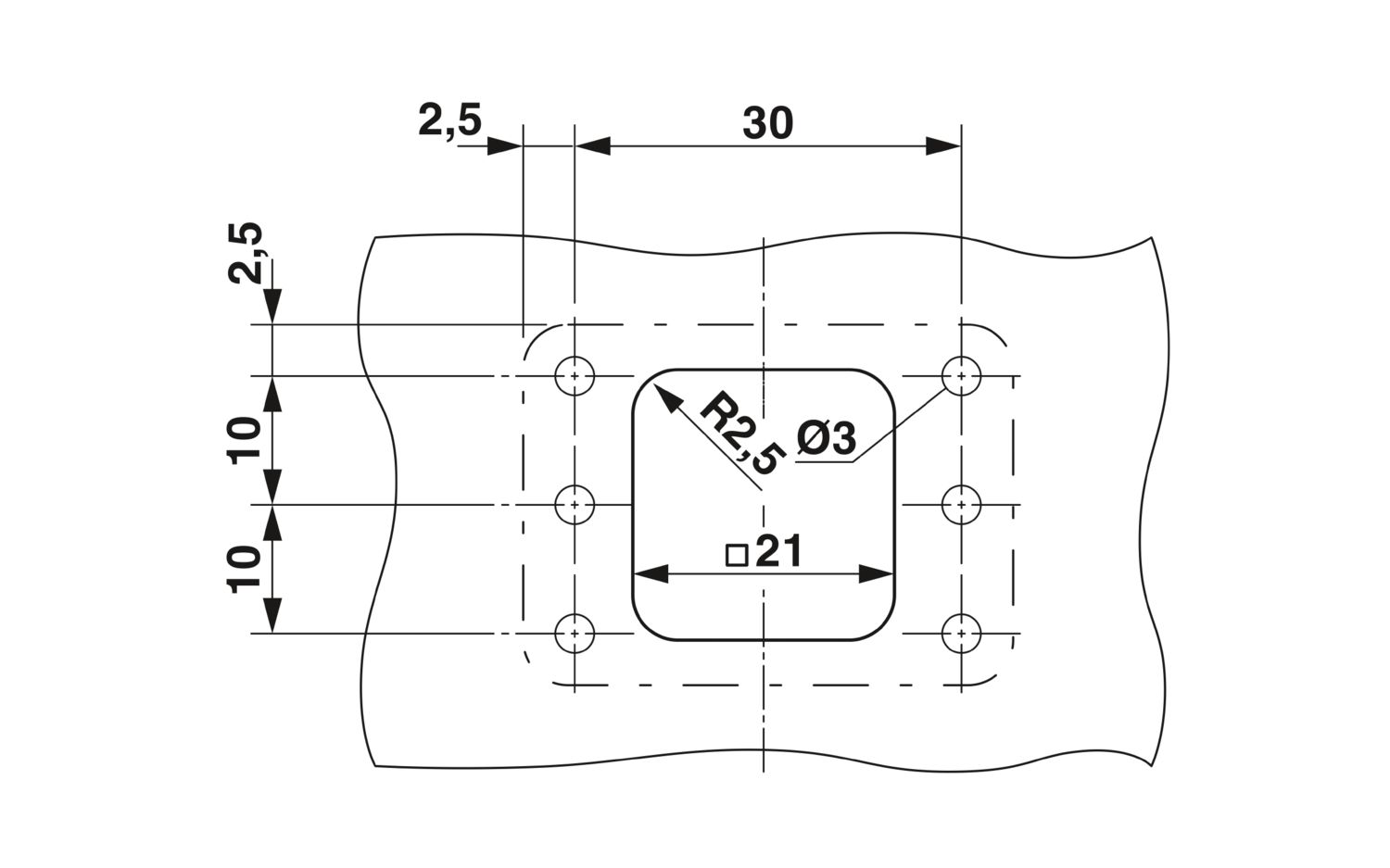

| Width of the assembly cutout | 21 mm |
| Length of the assembly cutout | 21 mm |
| Flammability rating according to UL 94 | V0 (Housing) |
| V0 (Interlock) | |
| Seal material | NBR |
| Housing material | PA |
| Locking latch material | PA |
| Mechanical data | |
| Type of the screw connection | M20 |
| Locking type | Latch |
| External cable diameter | 4 mm ... 10 mm |
| External cable diameter | 4 mm ... 10 mm |
| Tightening torque | 0.5 Nm ... 0.8 Nm (for M3 mounting screws on the surface-mount housing) |
| Ambient conditions | |
| Degree of protection | IP66 |
| Enclosure rating (NEMA) | 4 (UL) |
| 4X (UL) | |
| Impact strength | IK06 |
| Ambient temperature (operation) | -40 °C ... 125 °C |
