HC-STA-B48-HHFS-1TTM40-EM-AL
-
Housing
1424855
Sleeve housing B48, for single locking latch, material: Die-cast aluminum, salt water resistant, cable outlets: 1, straight, 1x M40, height: 107.5 mm, cable gland: none, Standard
Product details
| Product type | Housing with locking latch |
| Housing type | Sleeve housing |
| Application | Standard |
| Type | B48 |
| No. of cable outlets | 1 |
| Type of the screw connection | 1x M40 |
| Type | Tall design |
| Cable outlet | straight |
| Pg screw connection | none |

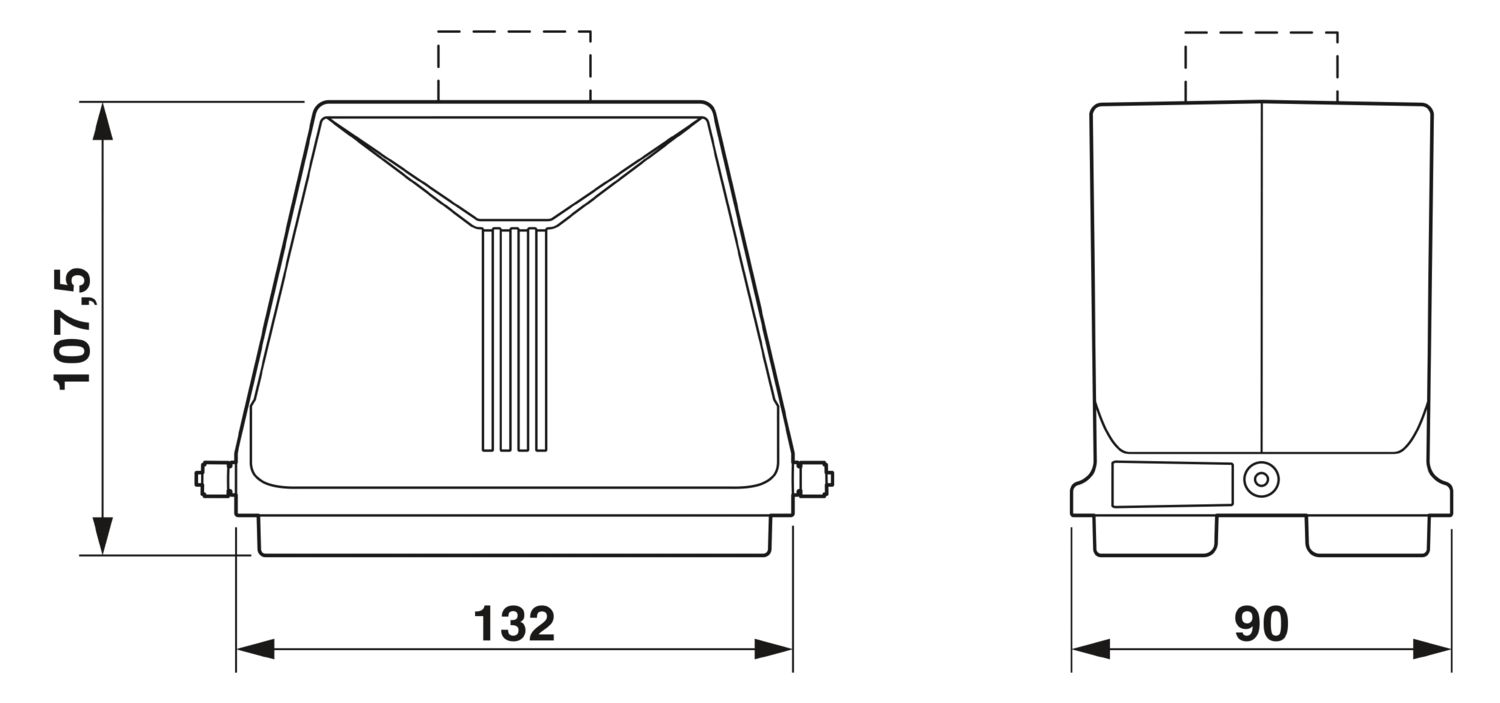

| Dimensional drawing |
|
| Width | 90 mm |
| Height | 107.5 mm |
| Length | 132 mm |
| Housing material | Die-cast aluminum, salt water resistant |
| Housing surface material | uncoated |
| Mechanical data | |
| Type of the screw connection | 1x M40 |
| Locking type | Pin |
| Ambient conditions | |
| Degree of protection | IP66 |
| IP67 | |
| Enclosure rating (NEMA) | 4 (UL 50e) |
| 4X (UL 50e) | |
| 12 (UL 50e) | |
| Impact strength | IK08 |
| Ambient temperature (operation) | -40 °C ... 125 °C |
Your advantages
Good shielding in the event of electromagnetic interference
