HC-STA-B32-HHFD-1TTM40-EL-AL
-
Housing
1424831
Sleeve housing B32, for double locking latch, material: Die-cast aluminum, salt water resistant, cable outlets: 1, straight, 1x M40, height: 94 mm, cable gland: none, Standard
Product details
| Product type | Housing with locking latch |
| Housing type | Sleeve housing |
| Application | Standard |
| Type | B32 |
| No. of cable outlets | 1 |
| Type of the screw connection | 1x M40 |
| Type | Tall design |
| Cable outlet | straight |
| Pg screw connection | none |

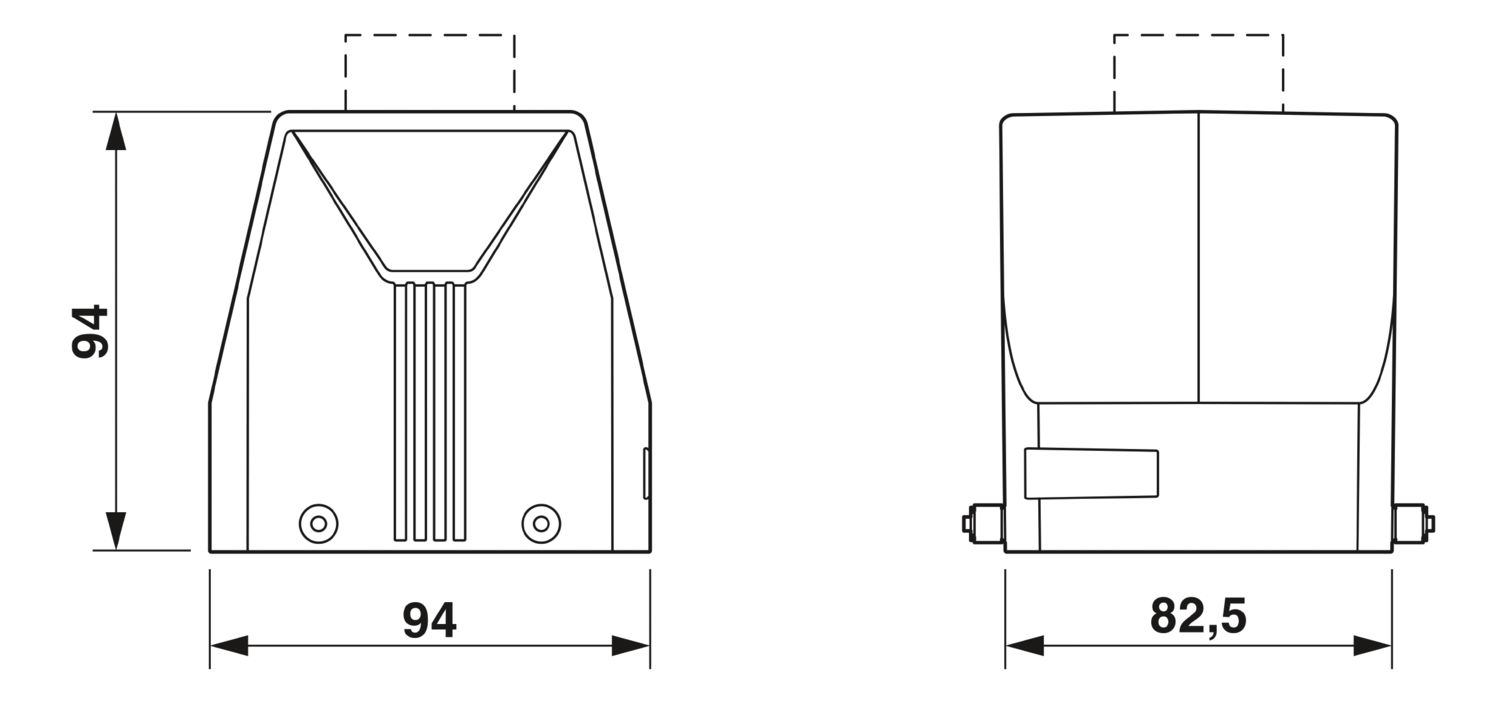

| Dimensional drawing |
|
| Width | 82.2 mm |
| Height | 94 mm |
| Length | 94 mm |
| Housing material | Die-cast aluminum, salt water resistant |
| Housing surface material | uncoated |
| Mechanical data | |
| Type of the screw connection | 1x M40 |
| Locking type | Pin |
| Ambient conditions | |
| Degree of protection | IP66 |
| IP67 | |
| Enclosure rating (NEMA) | 4 (UL 50e) |
| 4X (UL 50e) | |
| 12 (UL 50e) | |
| Impact strength | IK09 |
| Ambient temperature (operation) | -40 °C ... 125 °C |
Your advantages
Good shielding in the event of electromagnetic interference
