HC-STA-B24-BWD-ELC-AL
-
Housing
1411331
HEAVYCON B24 panel mounting base, with double locking latch, with flat gasket, salt-water-resistant aluminum, conductive profile gasket
Product details
| General | For contact inserts HC-B24, BB46, D64, DD108, M |
| General | also available as a powder-coated or color version: 1373289 HC-STA-B24-BWD-EL/.../... |
| Product type | Housing with locking latch |
| Housing type | Panel mounting base |
| Application | Standard |
| Type | B24 |
| Pg screw connection | none |

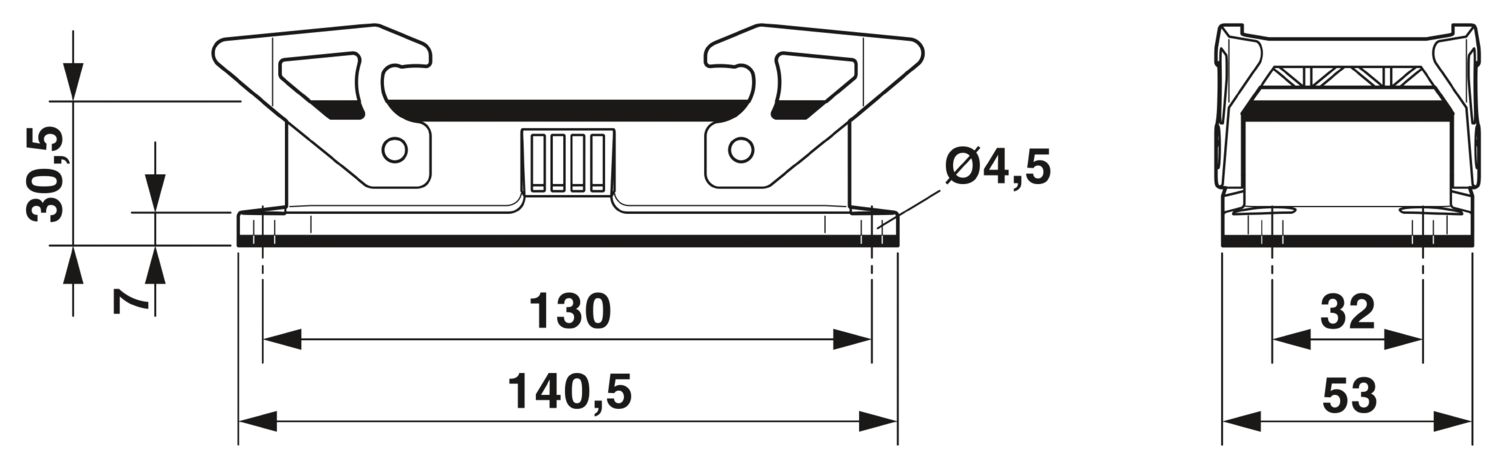

| Dimensional drawing |
|
| Width | 53 mm |
| Height | 30.5 mm |
| Length | 140.5 mm |
| Drill hole distance, horizontal | 130 mm |
| Drill hole distance, vertical | 32 mm |
| Hole diameter | 4.5 mm |
| Installation dimensions | |
| Width of the assembly cutout | 35 mm |
| Length of the assembly cutout | 113 mm |
| Flammability rating according to UL 94 | V0 (Interlock) |
| Seal material | NBR, conductive |
| NBR, conductive | |
| Housing material | Die-cast aluminum, salt water resistant |
| Housing surface material | uncoated |
| Locking latch material | Polyamide |
| Mechanical data | |
| Locking type | Latch |
| Tightening torque | 0.8 Nm ... 1.2 Nm (For M4 mounting screws on the panel-mount base) |
| Ambient conditions | |
| Degree of protection | IP66 |
| IP67 | |
| Enclosure rating (NEMA) | 4 (UL 50e) |
| 4X (UL 50e) | |
| 12 (UL 50e) | |
| Impact strength | IK09 |
| Ambient temperature (operation) | -40 °C ... 125 °C |
Your advantages
Good shielding in the event of electromagnetic interference
