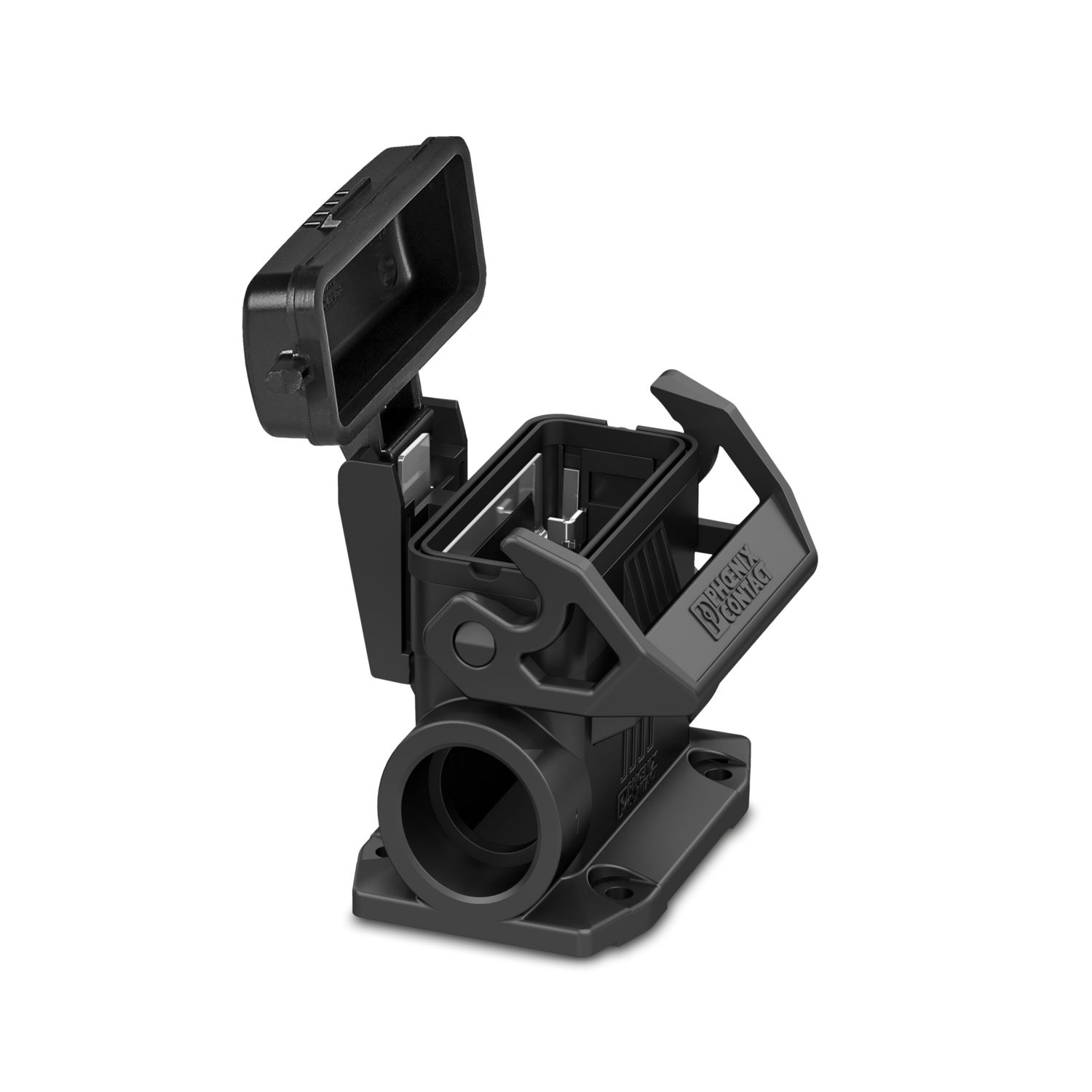

HC-EVO-D15-SLWSC-2SSM25-PLR-BK
-
Housing
1411343
Surface mounting housing D15, with single locking latch, material: PA 6.6-FR, protective cover material: PC, cable outlets: 2, lateral, 2x M25, height: 52 mm, cable gland: none, protective cover: yes, Standard
Product details
| General | For contact inserts HC-D15, A10 |
| Product type | Housing with locking latch |
| Housing type | Surface mounting housing |
| Product family | HC-EVO-D |
| Application | Standard |
| Type | D15 |
| No. of cable outlets | 2 |
| Type of the screw connection | 2x M25 |
| Type | Low design |
| Protective cover | yes |
| Cable outlet | lateral |
| Pg screw connection | none |

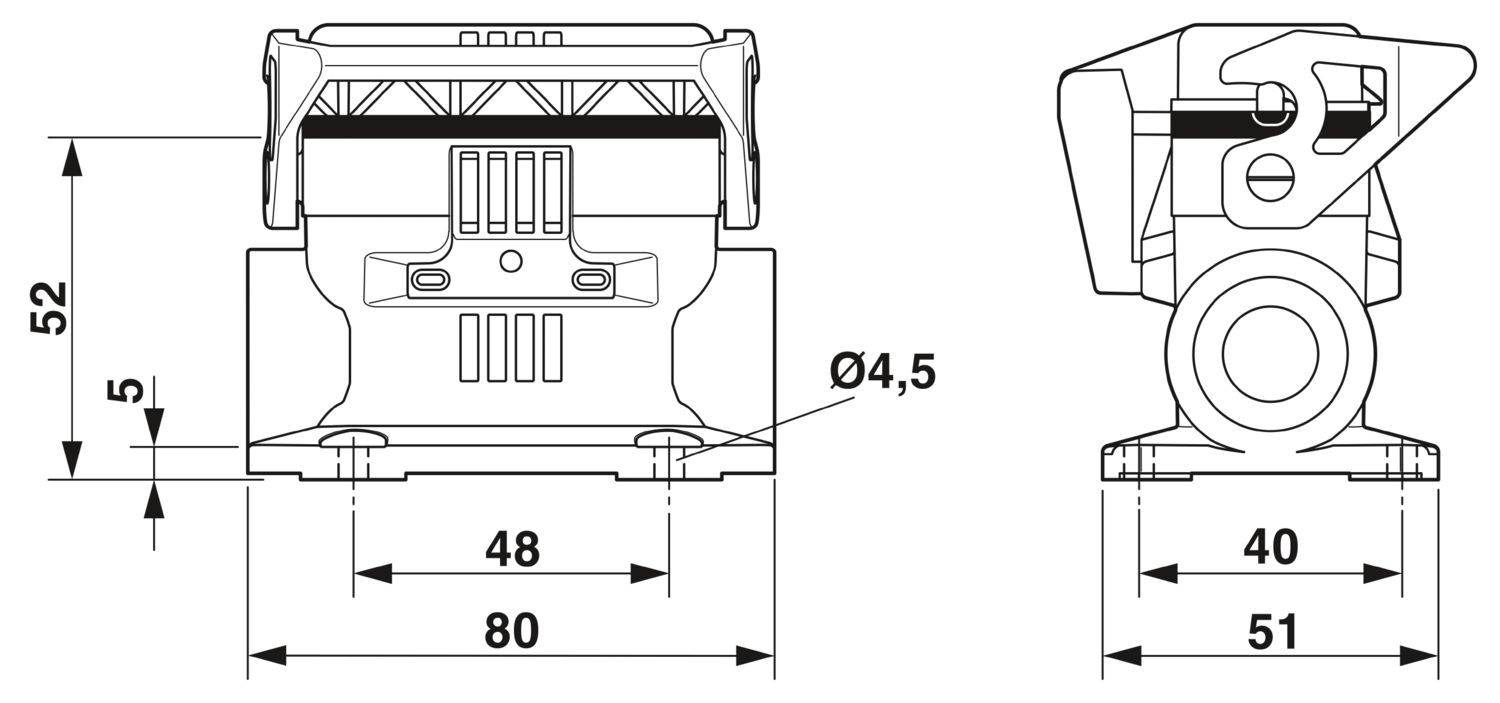

| Dimensional drawing |
|
| Width | 51 mm |
| Height | 52 mm |
| Length | 80 mm |
| Hole diameter | 4.5 mm |
| Flammability rating according to UL 94 | V0 (Housing) |
| V0 (Interlock) | |
| V0 (Protective cover) | |
| Housing material | PA 6.6-FR |
| Material, protective cover | PC |
| Locking latch material | PA |
| Mechanical data | |
| Type of the screw connection | 2x M25 |
| Locking type | Latch |
| Tightening torque | 0.8 Nm ... 1.2 Nm (for M4 mounting screws on the surface-mount housing) |
| Assembly note | One of the two openings for the screw connections is sealed but can be broken open using a screwdriver. |
| Ambient conditions | |
| Degree of protection | IP66 (when plugged in or with locked protective cover) |
| Enclosure rating (NEMA) | 12 (UL 50e) |
| Impact strength | IK08 |
| Ambient temperature (operation) | -40 °C ... 125 °C |
Your advantages
Flexible cable outlet direction, lateral or straight
Lower costs than metal version
Low weight
Lower risk of condensation
