HC-D 7-AMLD-24/GR-OD
-
Housing
1684994

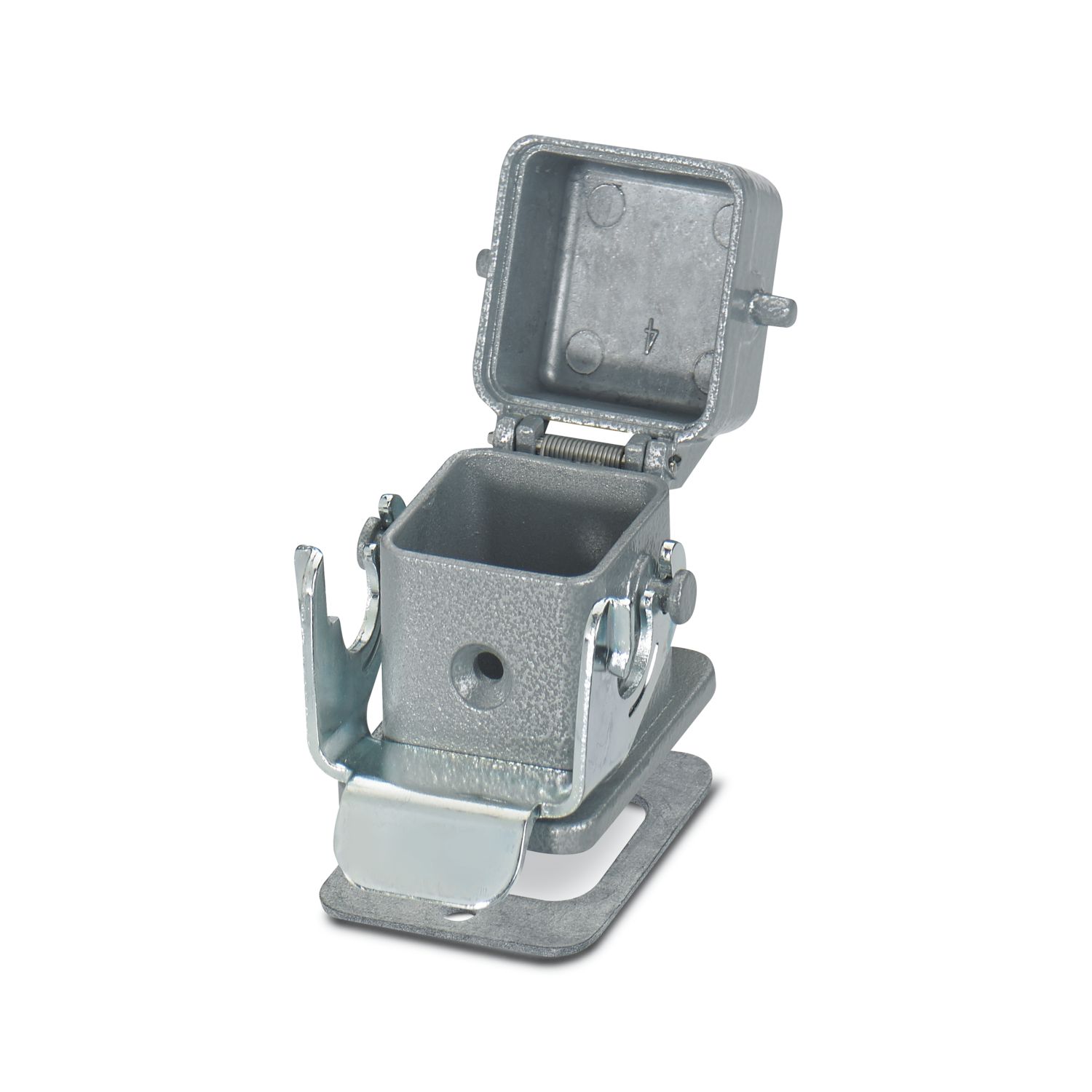

HEAVYCON panel mounting base D7, with single locking latch, height 24 mm, straight, zinc die-cast, with metal protective cover, for male inserts
Product details
| General | for contact inserts HC-A03, A04, D07, D08, Q02, Q03, Q04, Q05, Q07, Q12 |
| Product type | Housing with locking latch |
| Housing type | Panel mounting base |
| Application | Standard |
| Type | D7 |
| Protective cover | yes |
| Shielded | no |
| Pg screw connection | none |

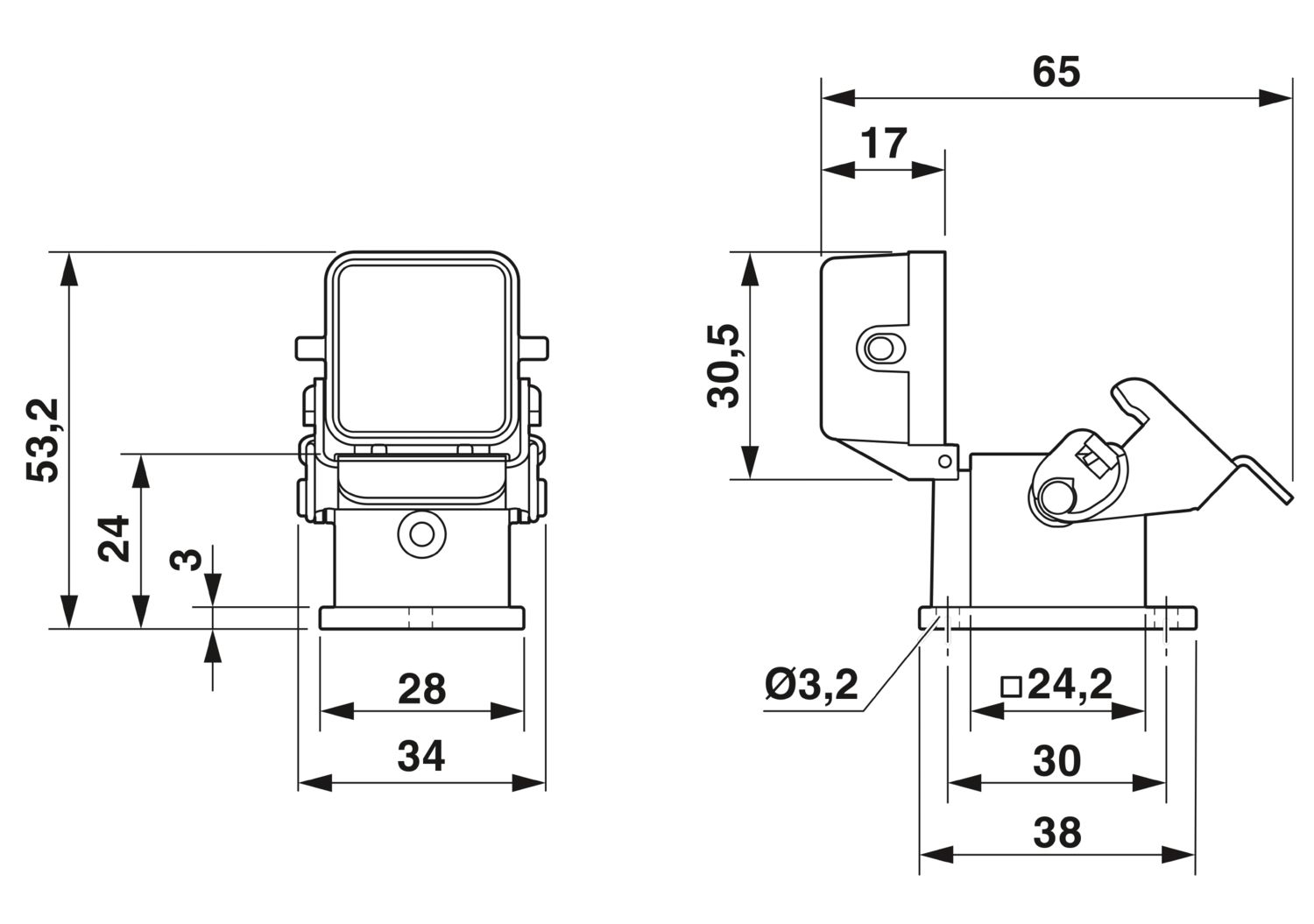

| Dimensional drawing |
|
| Height | 24 mm |

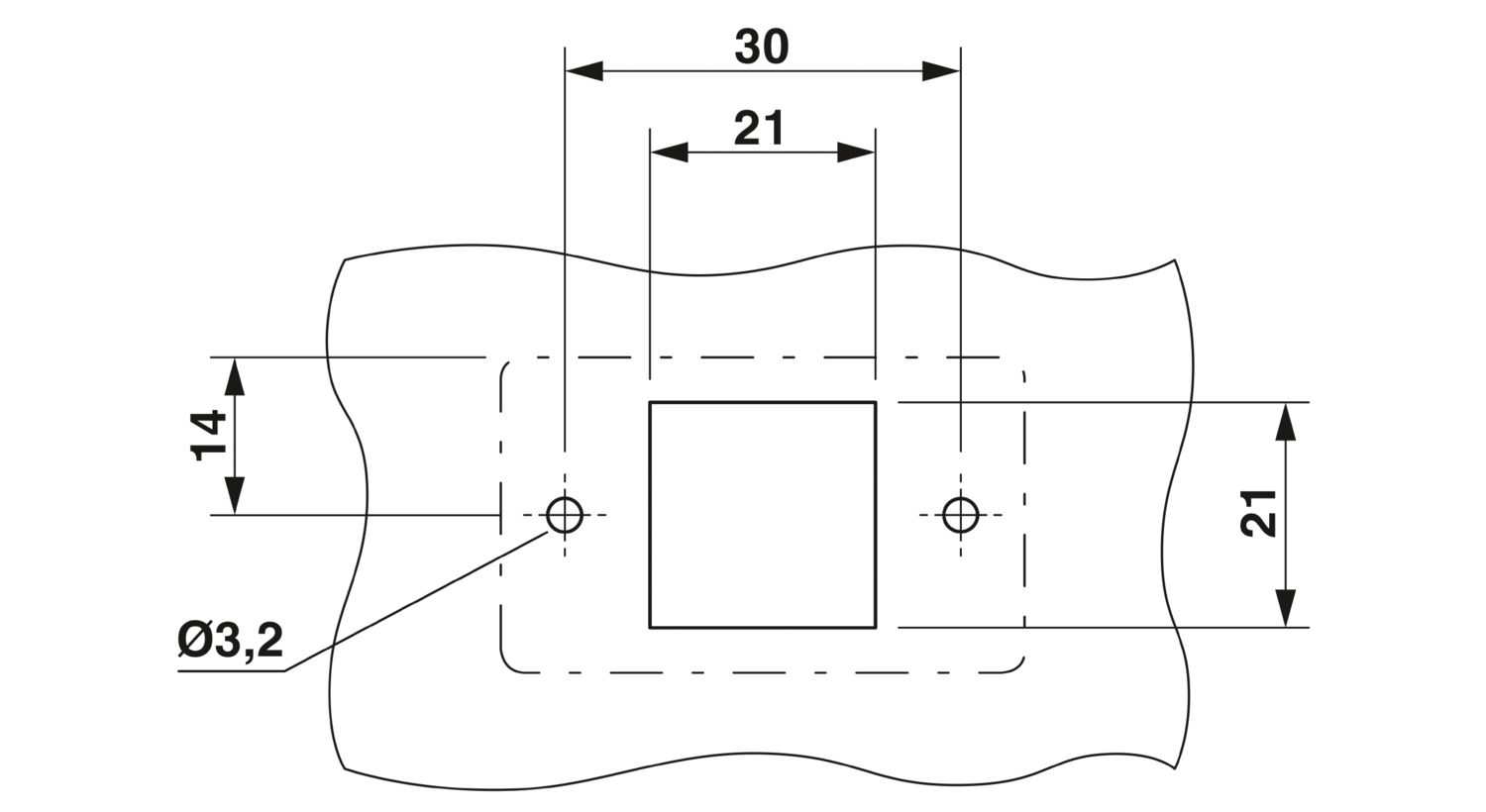

| Installation dimensions | |
| Width of the assembly cutout | 21 mm |
| Length of the assembly cutout | 21 mm |

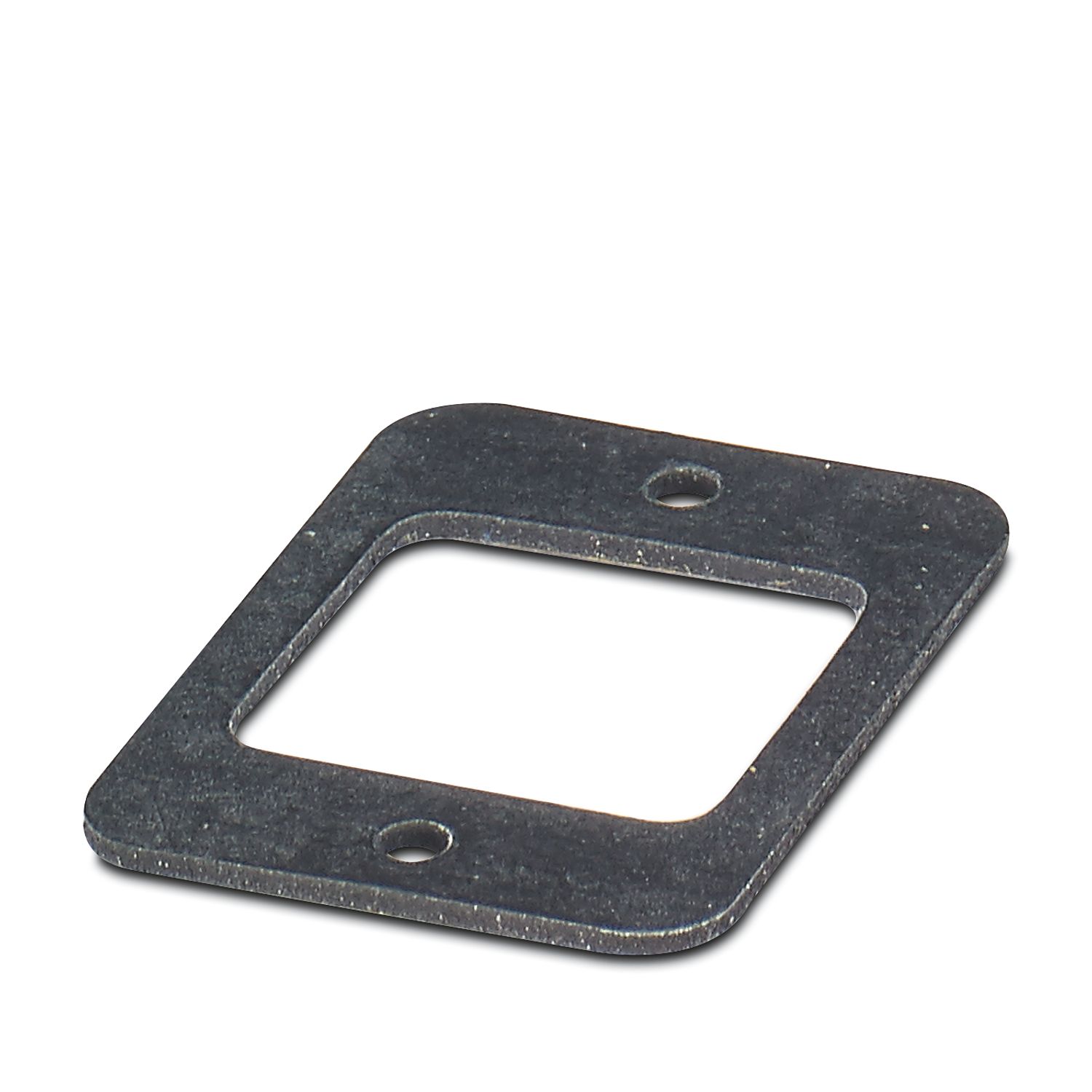

| Seal material | NBR |
| Housing material | Die-cast zinc |
| Housing surface material | Powder-coated, gray |
| Material, protective cover | Zinc |
| Locking latch material | Steel, galvanized and passivated |
| Mechanical data | |
| Locking type | Latch |
| Assembly note | For mounting pin inserts |
| Ambient conditions | |
| Degree of protection | IP54 |
| IP65 (with sealing screw) | |
| Ambient temperature (operation) | -40 °C ... 125 °C |
