HC-D 15-AML
-
Housing
1772379

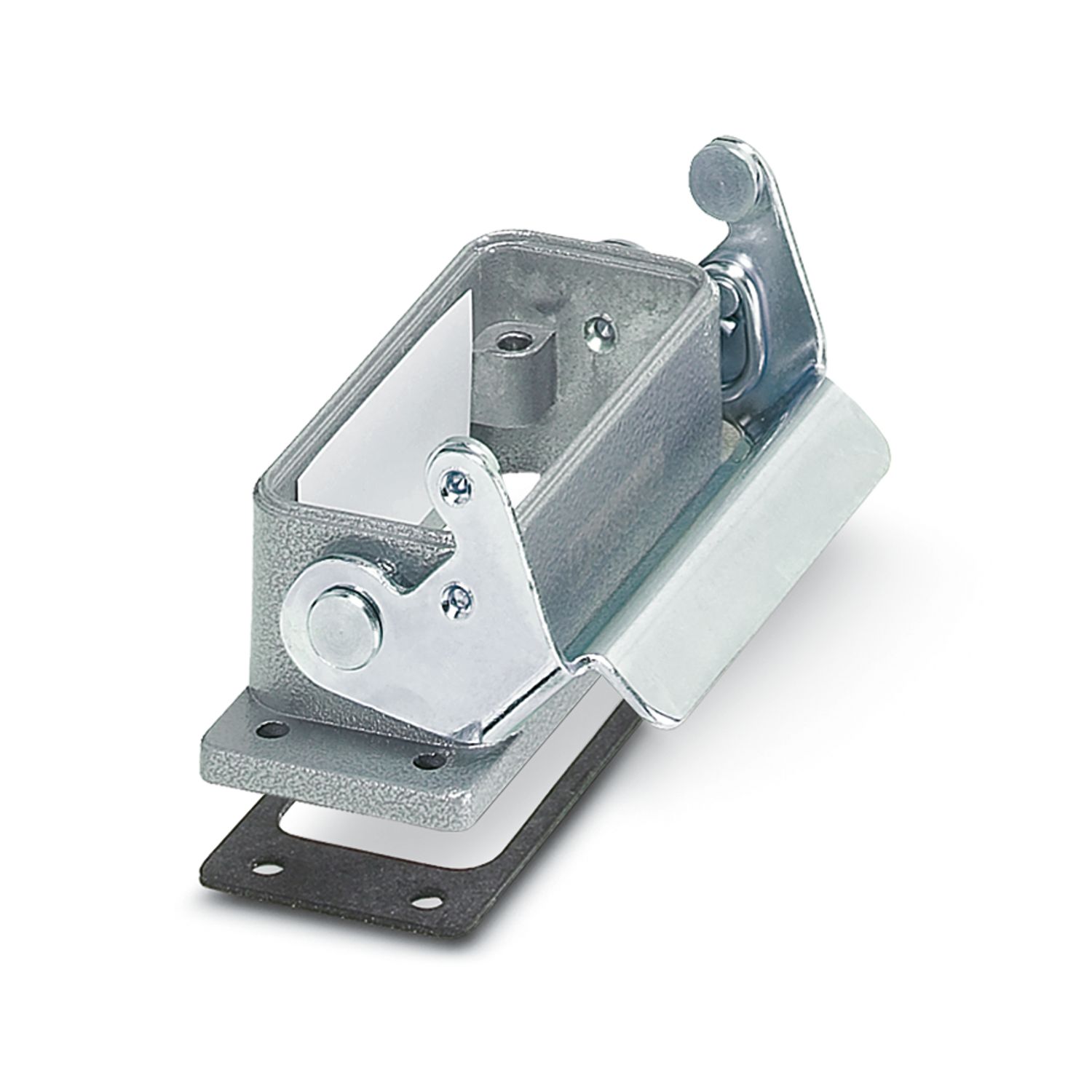

HEAVYCON panel mounting base D15, with single locking latch, height 26 mm
Product details
| General | For contact inserts HC-D15, A10 |
| Product type | Housing with locking latch |
| Housing type | Panel mounting base |
| Application | Standard |
| Type | D15 |
| Shielded | no |
| Pg screw connection | none |

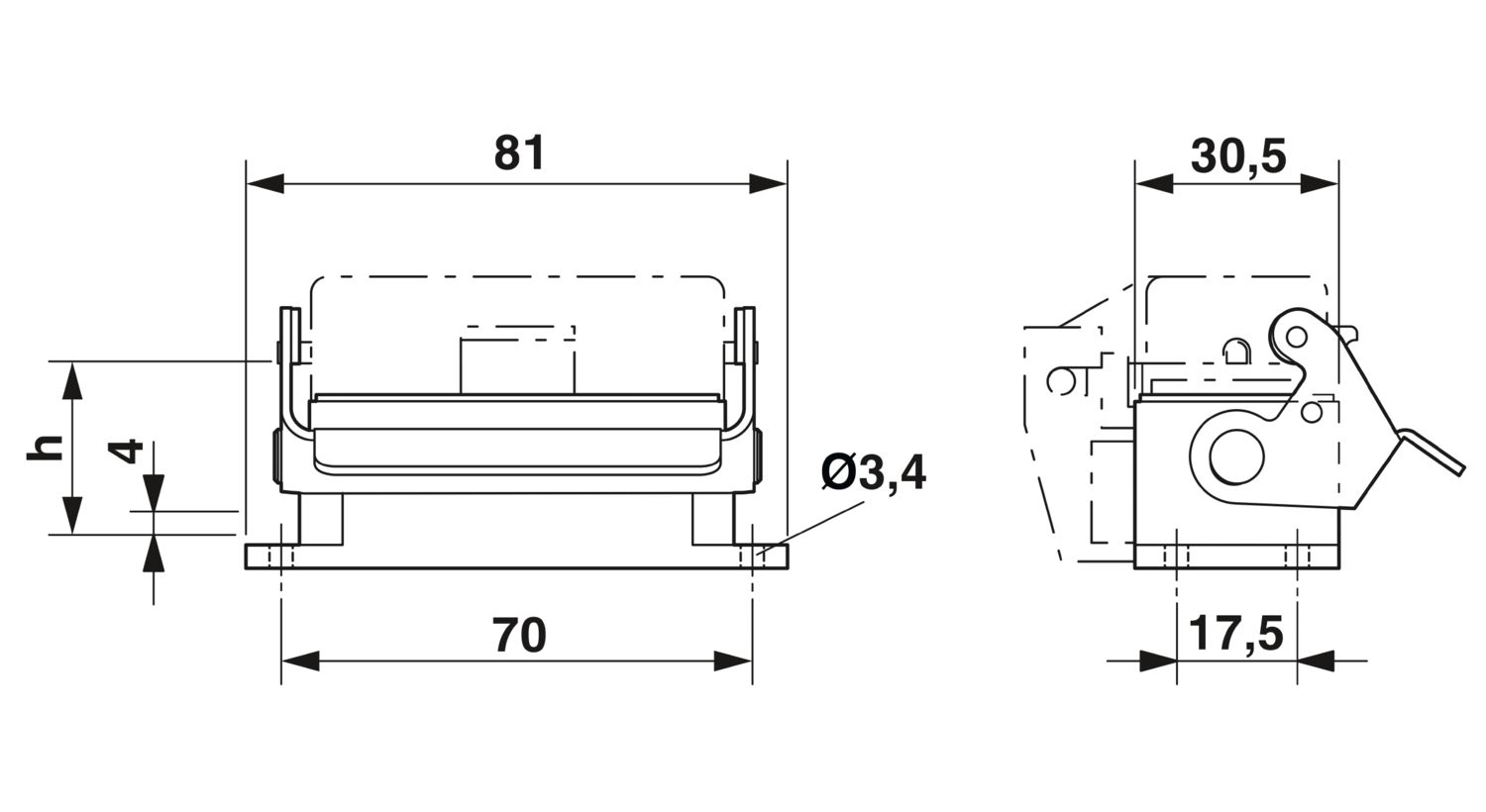

| Dimensional drawing |
|
| Width | 30.5 mm |
| Height | 26 mm |
| Length | 81 mm |

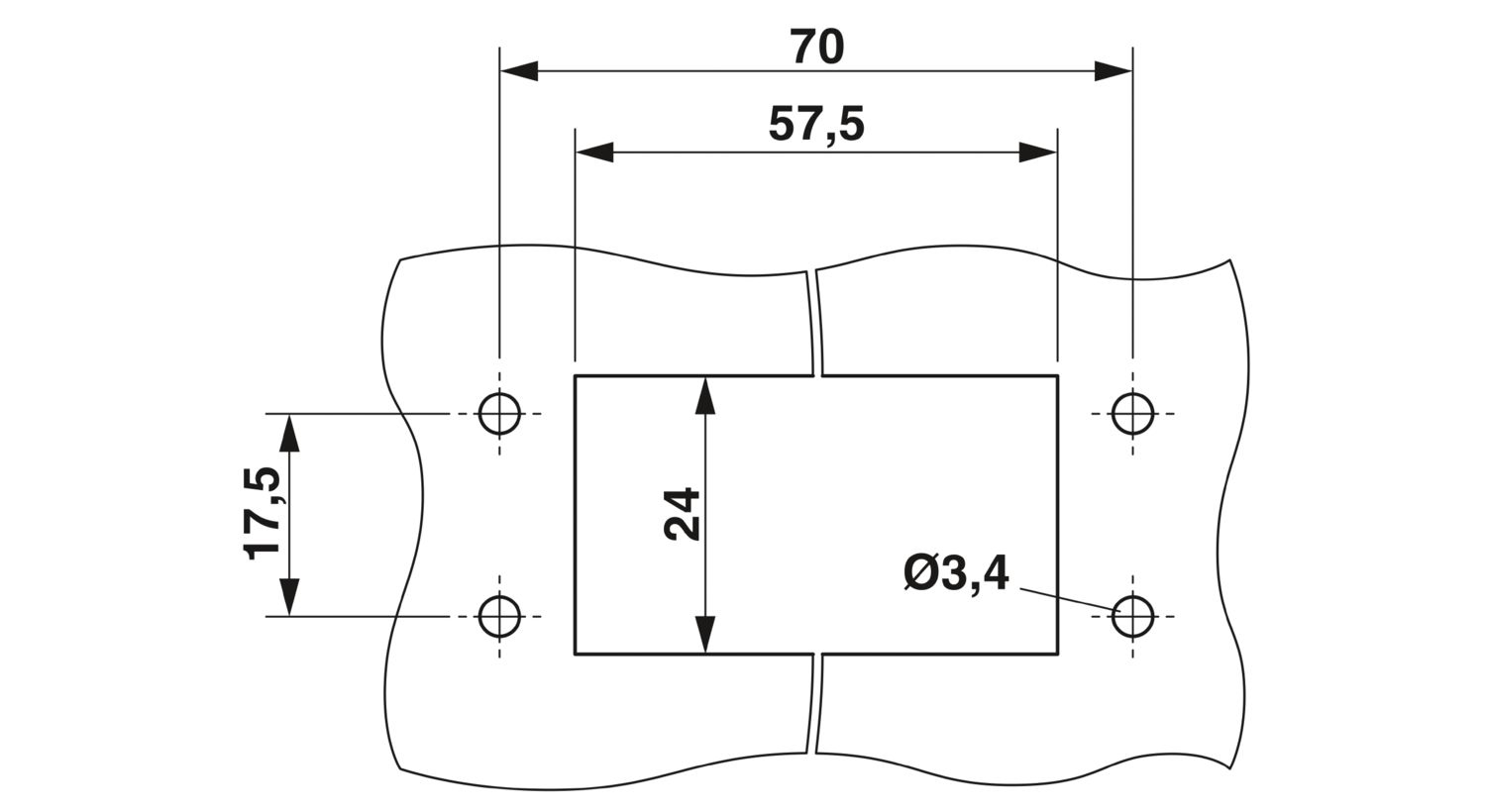

| Installation dimensions | |
| Width of the assembly cutout | 24 mm |
| Length of the assembly cutout | 57.5 mm |
| Seal material | CR |
| Housing material | Die-cast aluminum |
| Housing surface material | Powder-coated, gray |
| Locking latch material | Steel, galvanized |
| Mechanical data | |
| Locking type | Latch |
| Assembly note | The flat gasket is supplied closed. The required opening is not created until the assembly stage. |
| Ambient conditions | |
| Degree of protection | IP65 |
| Ambient temperature (operation) | -40 °C ... 125 °C |
