HC-B 6-KML-52/O1M20
-
Housing
1604719

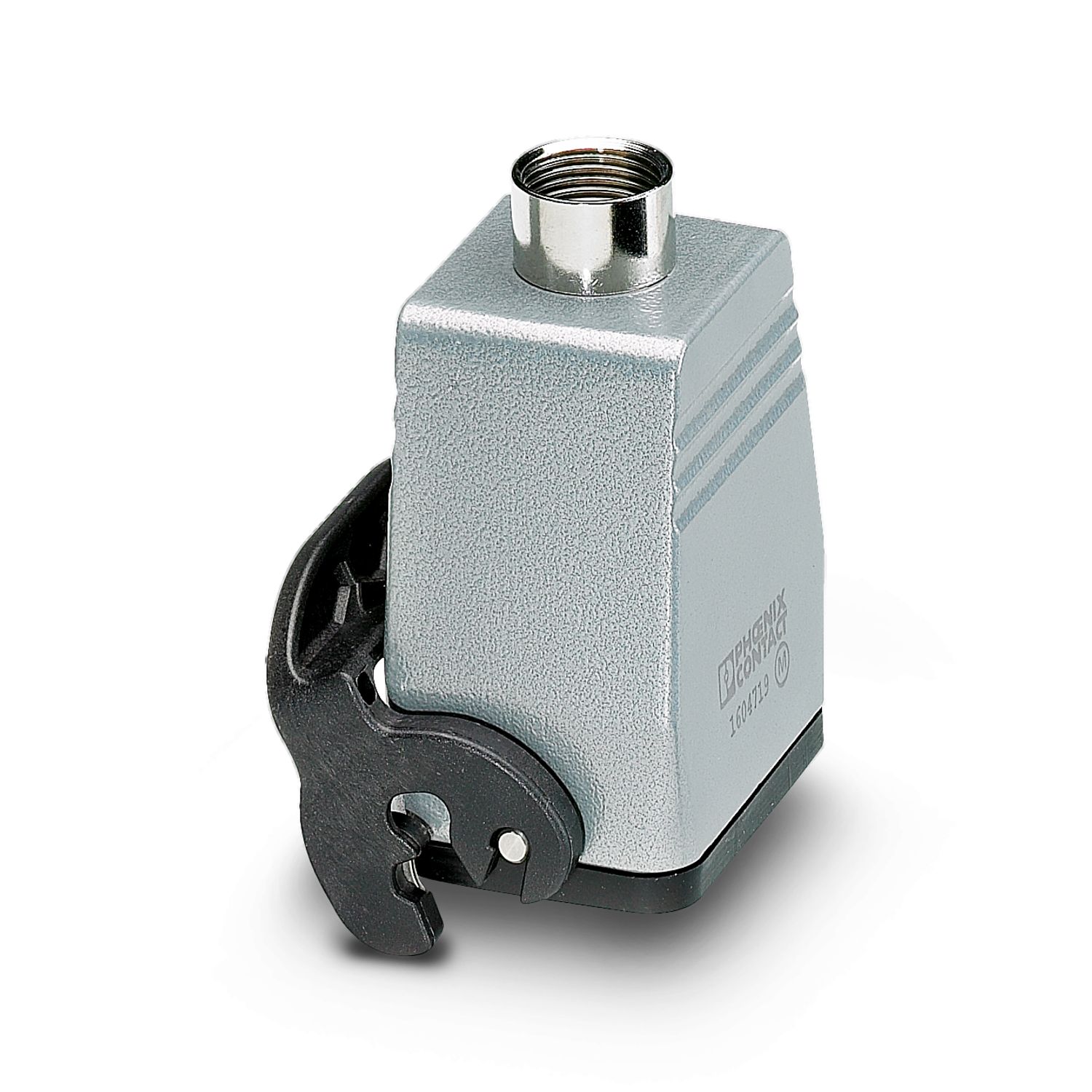

HEAVYCON coupling housing B6, with single locking latch, height 73 mm, with support 1x M20
Product details
| General | For contact inserts HC-B6, BB10, DD24, M |
| Product type | Housing with locking latch |
| Housing type | Coupling housings |
| Application | Standard |
| Type | B6 |
| No. of cable outlets | 1 |
| Type of the screw connection | 1x M20 |
| Cable outlet | straight |

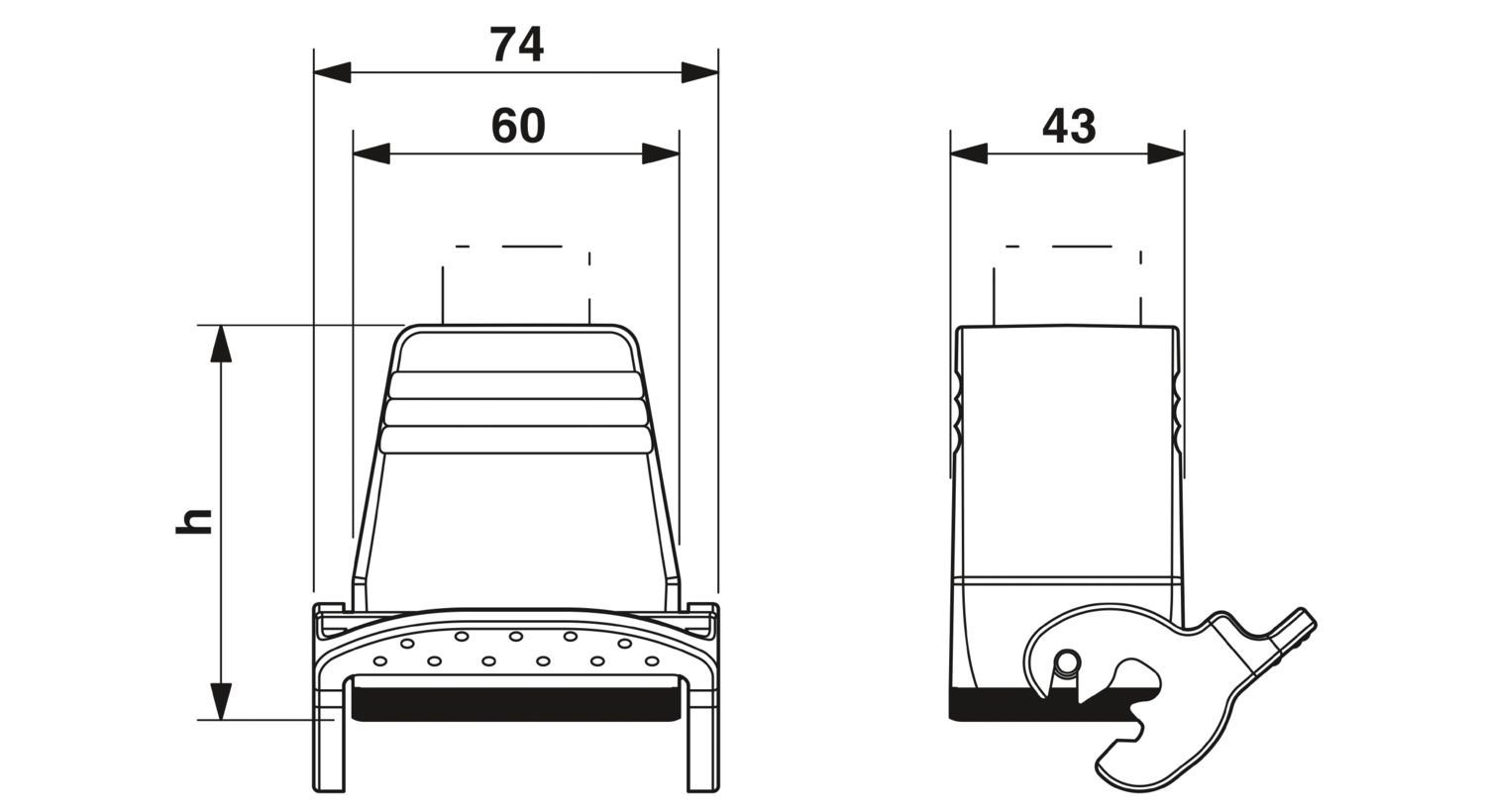

| Dimensional drawing |
|
| Width | 43 mm |
| Height | 73 mm |
| Length | 60 mm |
| Seal material | NBR |
| Housing material | Die-cast aluminum |
| Housing surface material | Powder-coated, gray |
| Locking latch material | High-grade steel, handle: PA-GF |
| Mechanical data | |
| Type of the screw connection | 1x M20 |
| Assembly note | For half and full screw connections |
| Ambient conditions | |
| Degree of protection | IP65 |
