HC-B 32-AMQ
-
Housing
1775693

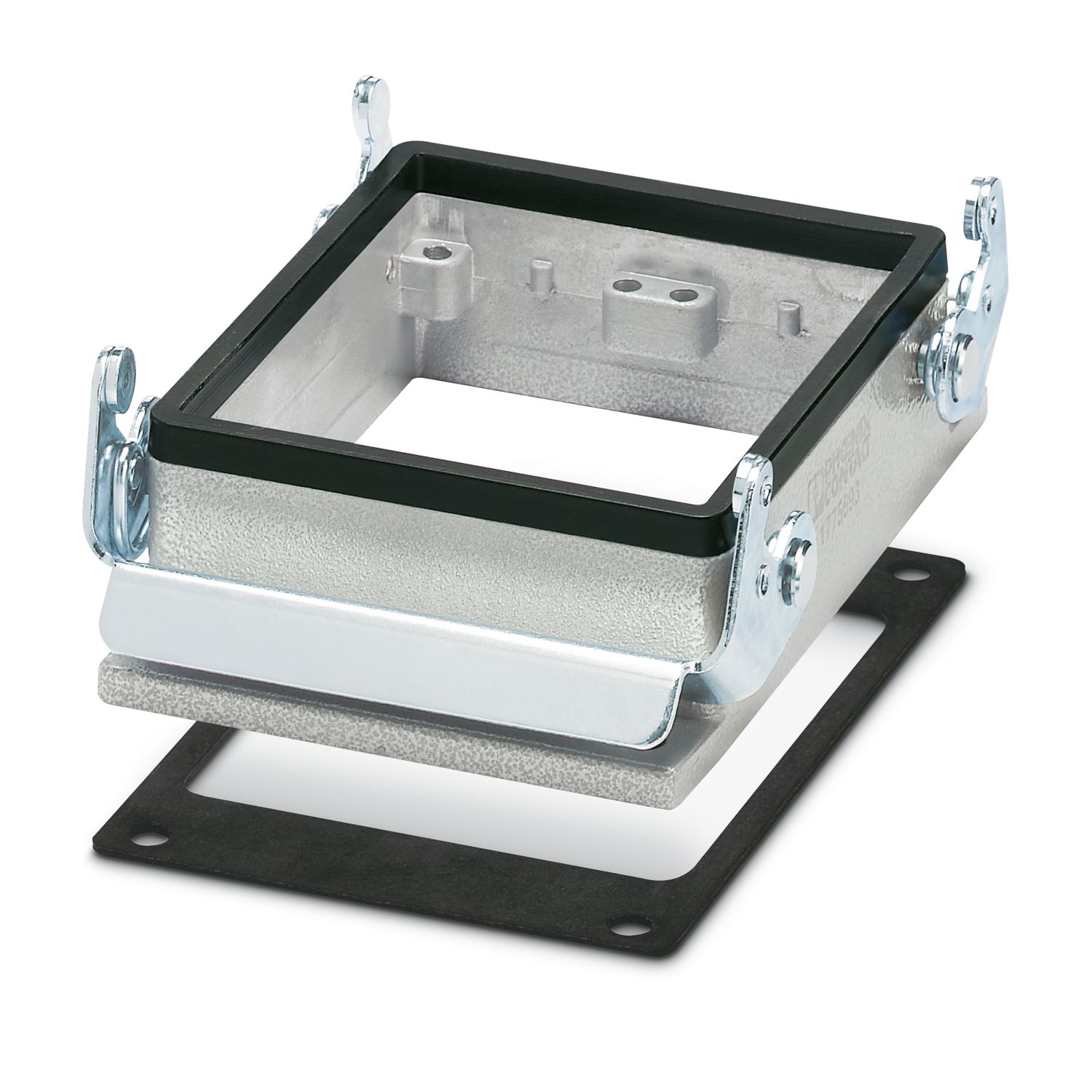

HEAVYCON panel mounting base B32, with double locking latch, height 30 mm, with flat gasket
Product details
| General | For contact inserts HC-B32, DD144, M |
| Product type | Housing with locking latch |
| Housing type | Panel mounting base |
| Application | Standard |
| Type | B32 |
| Shielded | no |
| Pg screw connection | none |

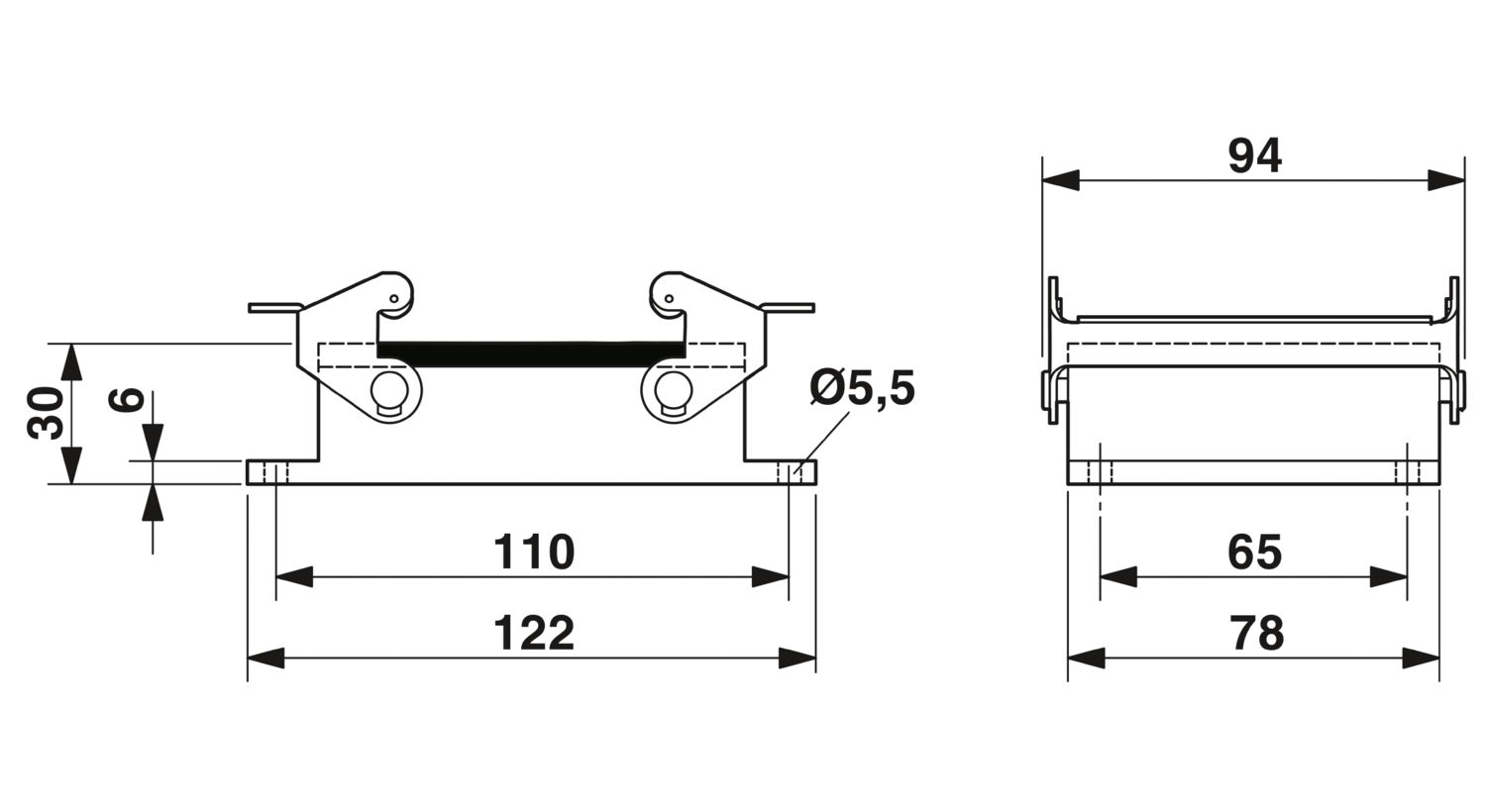

| Dimensional drawing |
|
| Width | 78 mm |
| Height | 31 mm |
| Length | 122 mm |

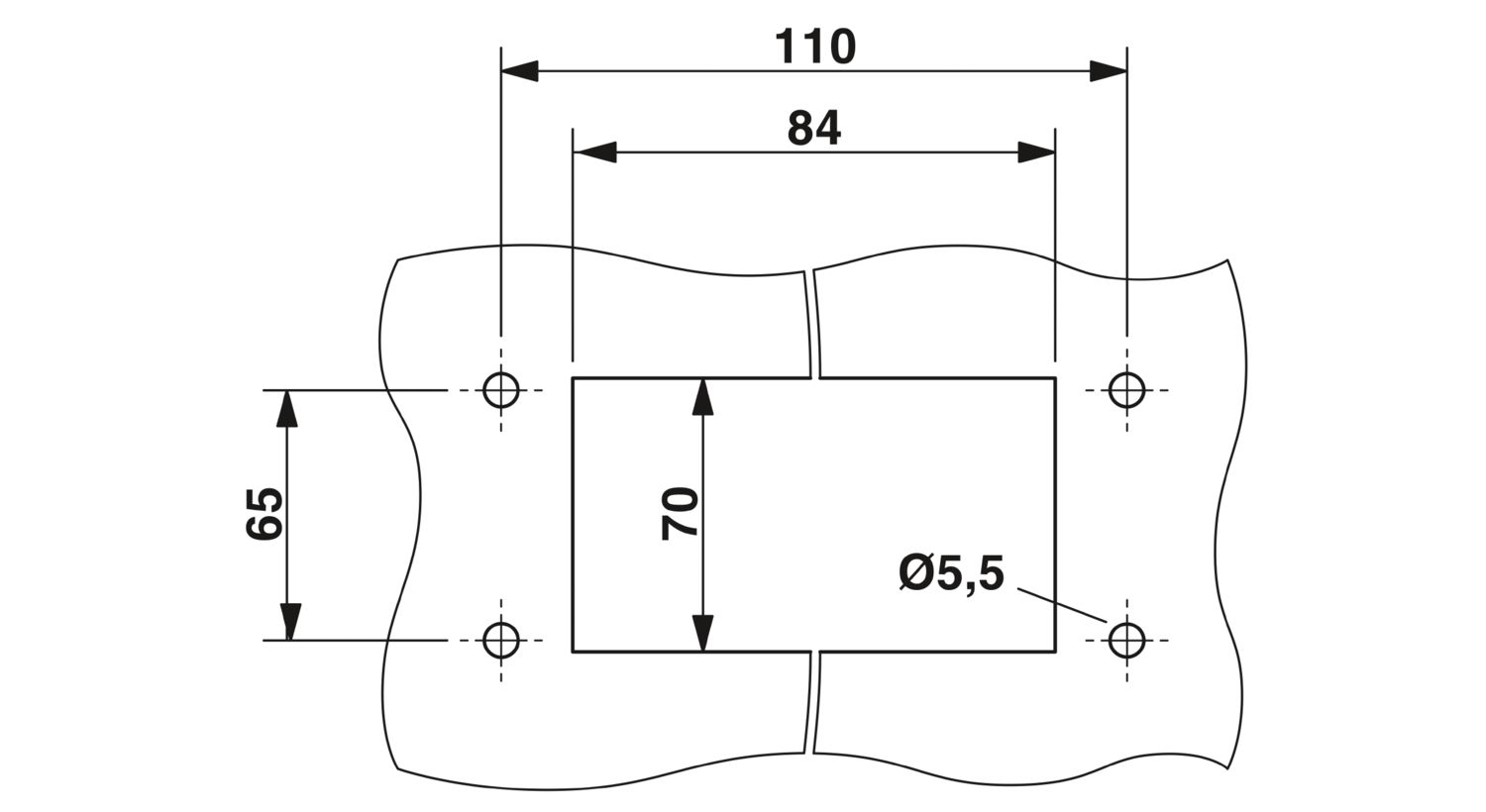

| Installation dimensions | |
| Width of the assembly cutout | 70 mm |
| Length of the assembly cutout | 84 mm |
| Seal material | NBR |
| Housing material | Die-cast aluminum |
| Housing surface material | Powder-coated, gray |
| Locking latch material | Steel, galvanized |
| Mechanical data | |
| Locking type | Latch |
| Ambient conditions | |
| Degree of protection | IP65 |
| Ambient temperature (operation) | -40 °C ... 125 °C |
