HC-B 16-SMLD-84/O2M32
-
Housing
1645684
HEAVYCON box mounting base B16, with single locking latch, height 84 mm, with supports 2xM32 with cover
Product details
General | For contact inserts HC-B16, BB32, BBB40, D40, DD72, HS6, M, K |
Product type | Housing with locking latch |
Housing type | Surface mounting housing |
Application | Standard |
Type | B16 |
No. of cable outlets | 2 |
Type of the screw connection | 2x M32 |
Protective cover | yes |
Shielded | no |
Cable outlet | lateral |
Pg screw connection | none |

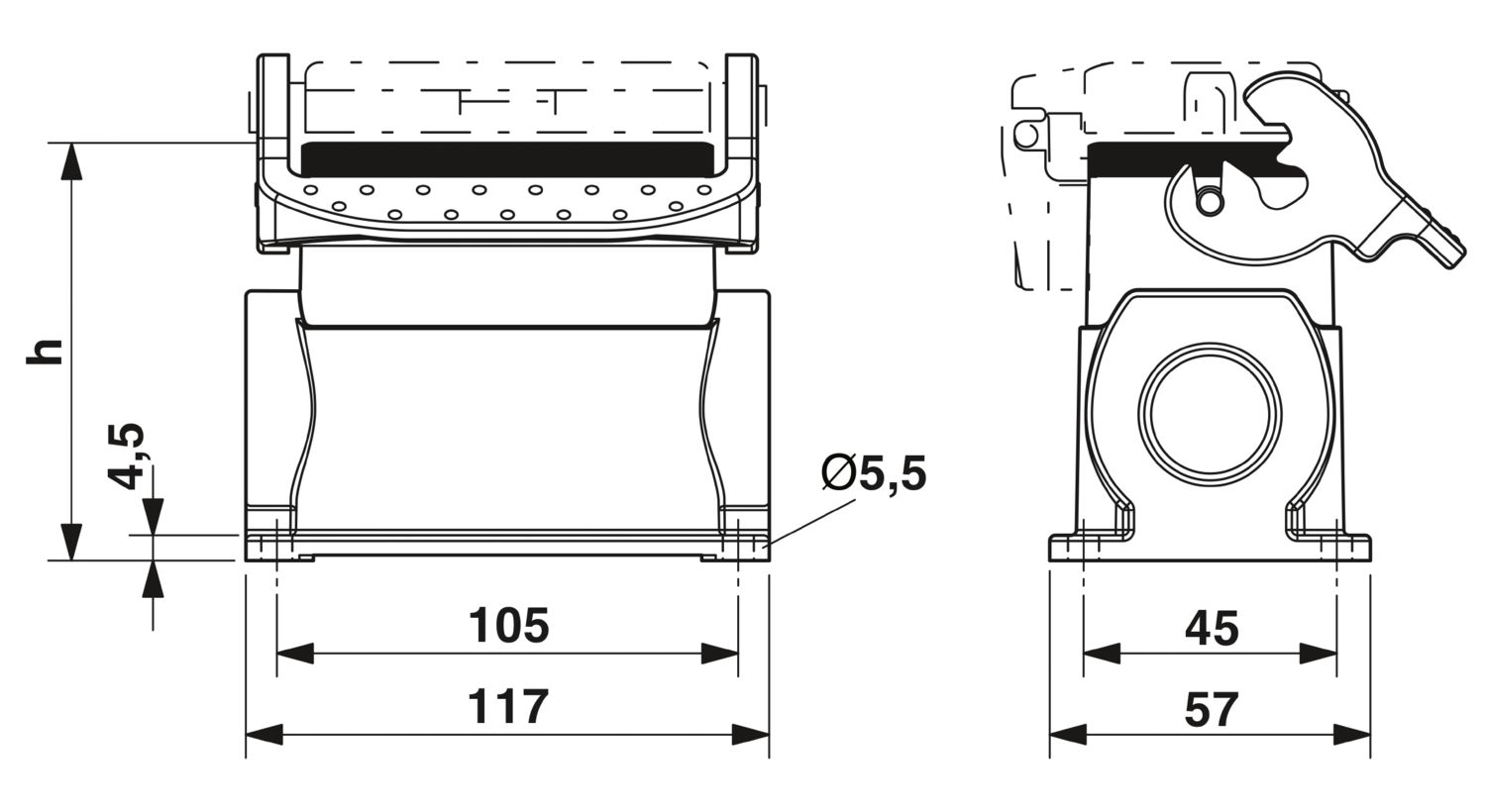

Dimensional drawing |
|
Width | 57 mm |
Height | 84 mm |
Length | 117 mm |
Seal material | NBR |
Housing material | Die-cast aluminum |
Housing surface material | Powder-coated, gray |
Material, protective cover | PA |
Locking latch material | Stainless steel, handle: PA |
Mechanical data | |
Type of the screw connection | 2x M32 |
Locking type | Latch |
Ambient conditions | |
Degree of protection | IP65 (When plugged in) |
IP54 (with closed protective cover) | |
Ambient temperature (operation) | -40 °C ... 125 °C |
Item number | 1645684 |
Packing unit | 10 pc |
Minimum order quantity | 1 pc |
Product key | AF7AAC |
Catalog page | Page 512 (C-4-2013) |
GTIN | 4017918954895 |
Weight per piece (including packing) | 459.4 g |
Weight per piece (excluding packing) | 459.4 g |
Country of origin | DE |
ECLASS
ECLASS-13.0 | 27440202 |
UNSPSC
UNSPSC 21.0 | 31261501 |
China RoHS | |
Environment friendly use period (EFUP) |
EFUP-E
No hazardous substances above the limits
|
EU REACH SVHC | |
REACH candidate substance (CAS No.) | No substance above 0.1 wt% |
Compatible products
-
-
G-INS-M32-M68N-PNES-BK - Cable gland 1411136
-
G-INS-M32-M68N-NNES-S - Cable gland 1411166
-
HC-M-KV-M32(19-27) - Cable gland 1646010
-
G-INSEC-M32-M68N-NCRS-S - Cable gland 1411191
-
HC-M-KV-Z-M32 - Cable gland 1646162
-
HC-M-KV-T-M32 - Cable gland 1646201
-
REDUC-M-KV-M32/M25 - Reducing adapter 1647637
-
ENLAR-M-KV-M32/M40 - Extension adapter 1647682
-
HC-M-BS-M32 - Screw plug 1645862
