HC-B 10-TMQ-52/M1PG16S
-
Housing
1771273
Sleeve housing, with double locking latch, height 52 mm, with screw connection, 1x Pg16, lateral cable entry
Product details
| General | For contact inserts HC-B10, BB18, DD42, M, K8/24 |
| Product type | Housing with locking latch |
| Housing type | Sleeve housing |
| Application | Standard |
| Type | B10 |
| No. of cable outlets | 1 |
| Type of the screw connection | 1x Pg16 |
| Shielded | no |
| Cable outlet | lateral |
| Pg screw connection | with |

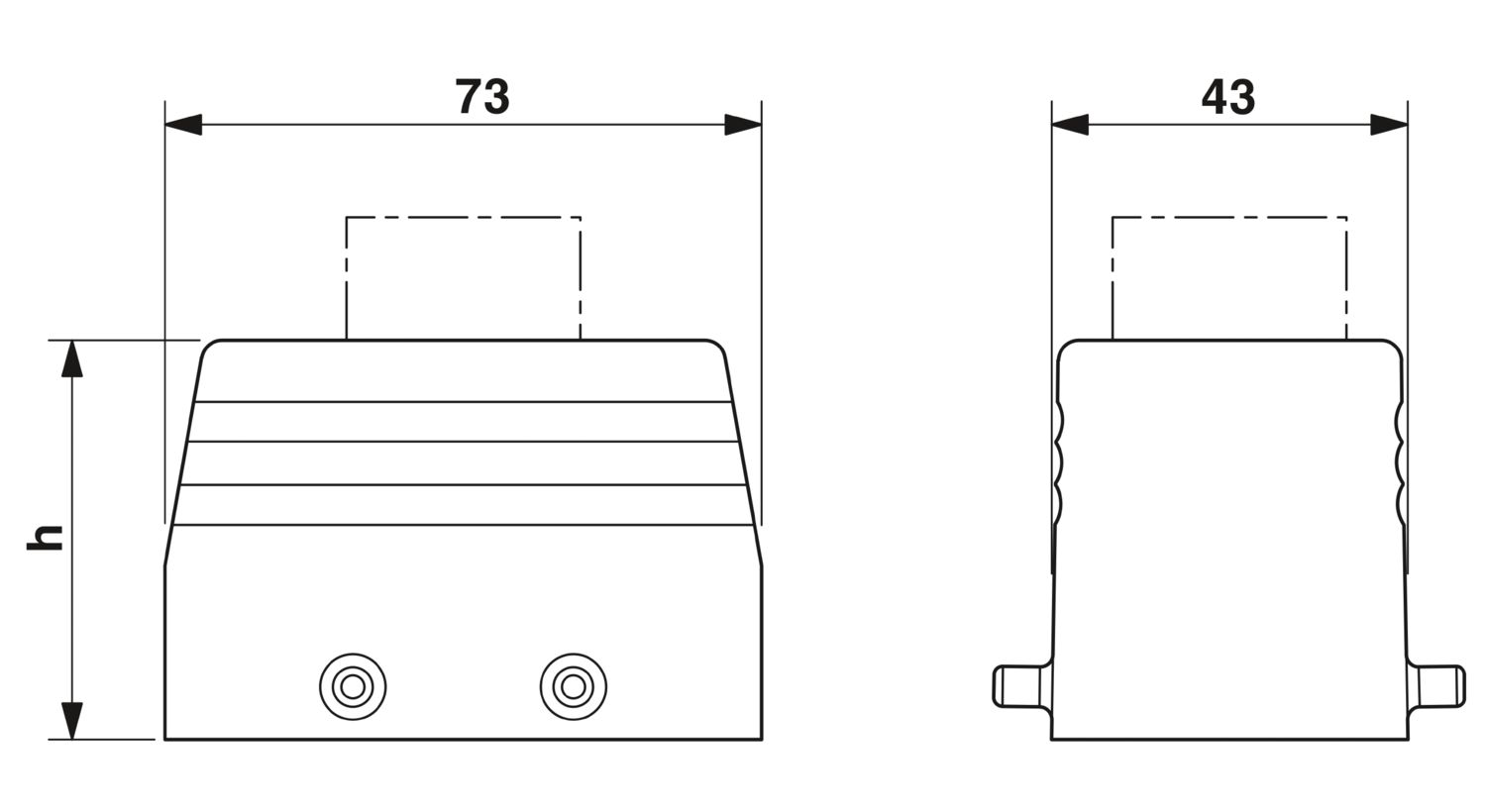

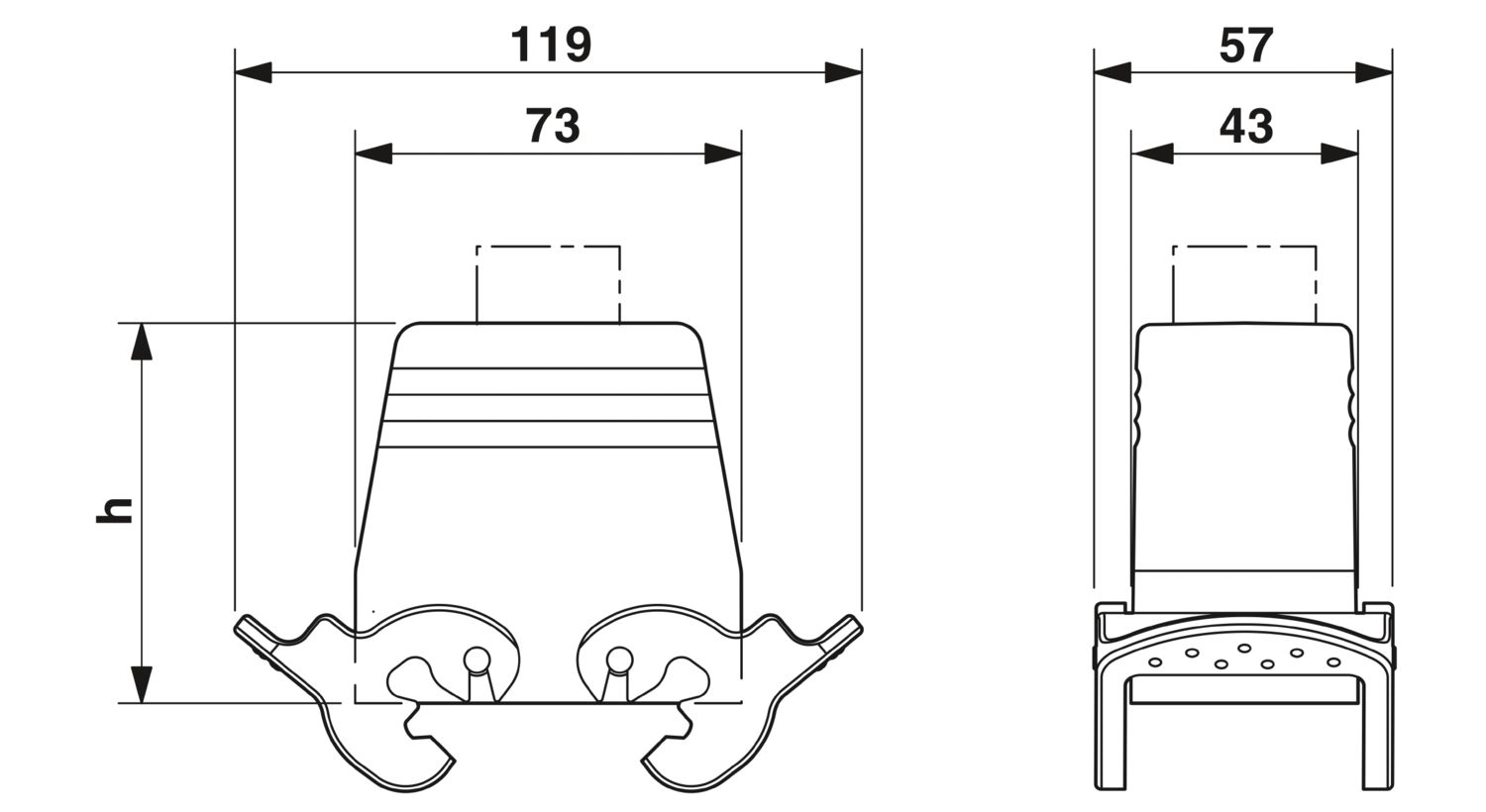

| Dimensional drawing |
|
| Width | 43 mm |
| Height | 52 mm |
| Length | 73 mm |
| Wrench size, union nut | 22 mm |
| Material Screw connection | Brass, nickel-plated |
| Seal material Cable seal | NBR |
| Housing material | Die-cast aluminum |
| Housing surface material | Powder-coated, gray |
| Locking latch material | Stainless steel, handle: PA |
| Mechanical data | |
| Type of the screw connection | 1x Pg16 |
| Locking type | Latch |
| External cable diameter Cable 1 | 7.5 mm ... 15 mm |
| External cable diameter | 7.5 mm ... 15 mm |
| Ambient conditions | |
| Degree of protection | IP65 |
| Ambient temperature (operation) | -40 °C ... 125 °C |
