BC 107,6-KIT-U22-7035+4PTDA9
-
Housing set
1311010

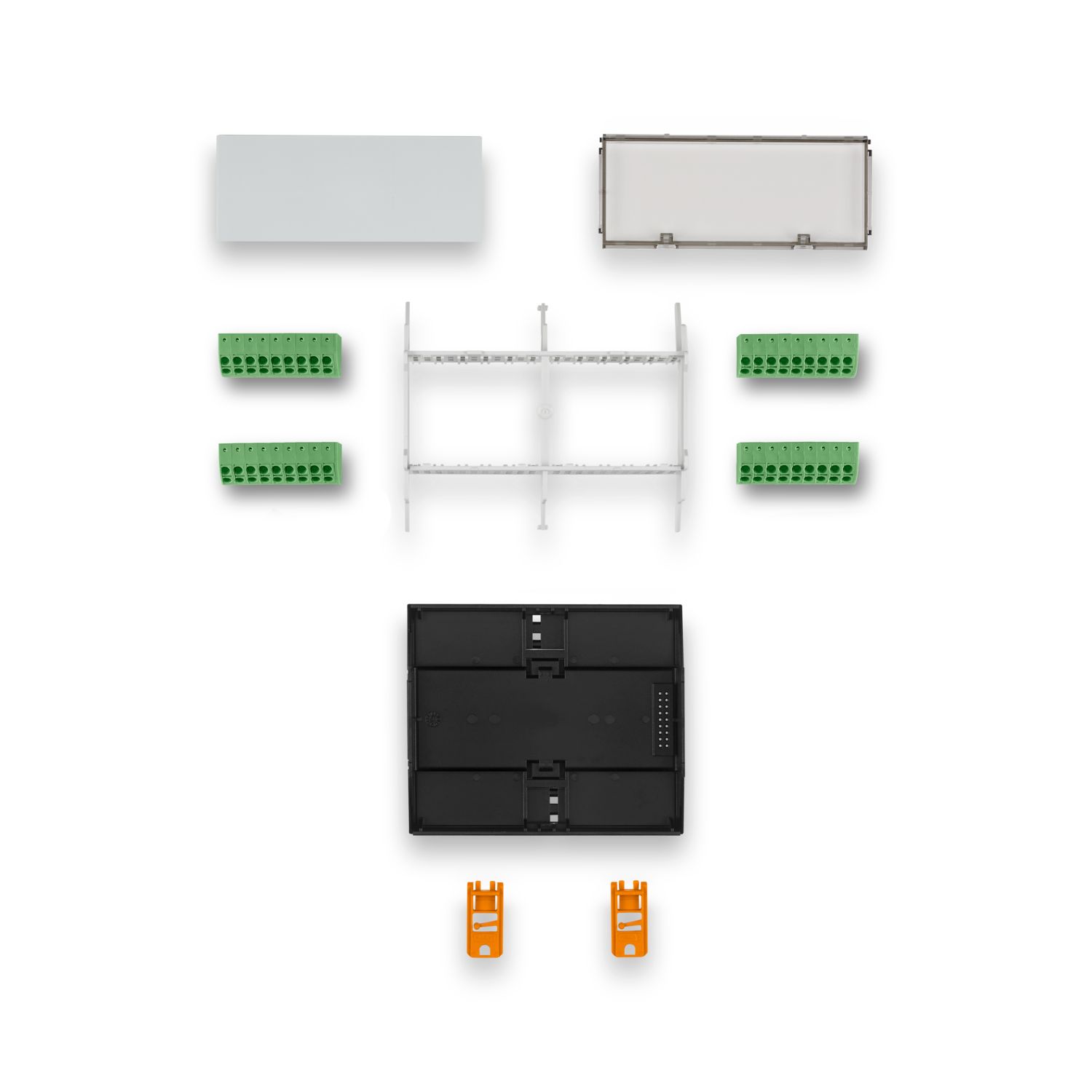

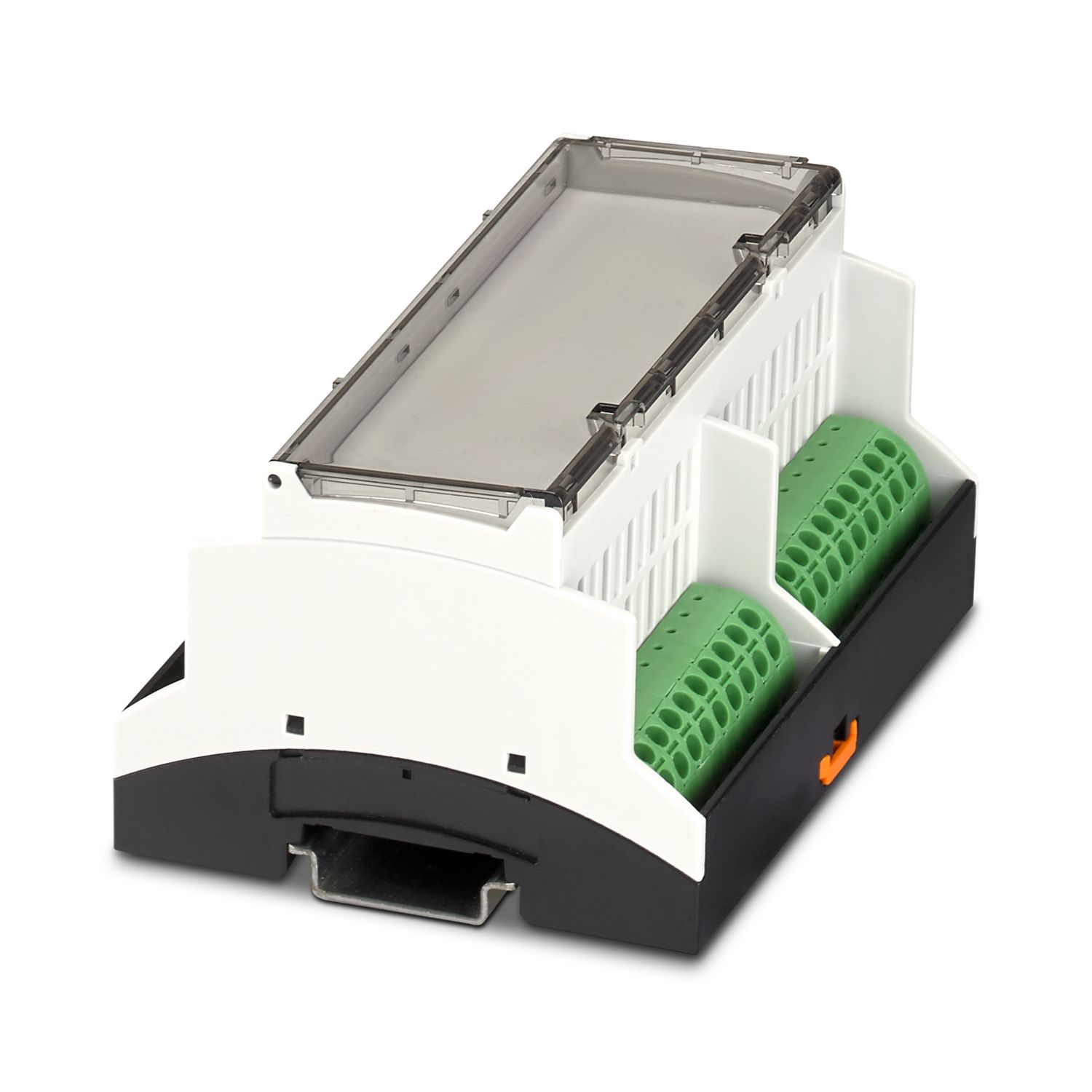

DIN rail housing for use in distribution boards in accordance with DIN 43880, for mounting on a DIN rail, with transparent hinged cover, color: black (similar RAL 9005), width: 107.6 mm, height: 89.7 mm, depth: 60.7 mm, incl. 4 PCB terminal blocks, 9-pos., Push-in, for 2.5 mm2, nominal current: 24 A, 400 V, PCB surface: 8300 mm2
Product details
| Assembly note | Please observe the assembly instructions available in the download area. |
| General | The PCB surface specification is for orientation purposes and is based on a basic PCB. The housing can also accommodate several PCBs. |
| Product type | Stackable housing set |
| Housing type | DIN rail housing for use in distribution boards in accordance with DIN 43880 |
| Housing series | BC |
| Number of positions | 36 |
| Max. number of positions | 36 (pitch: 5 mm) |
| Type | for mounting on a DIN rail, with transparent hinged cover |

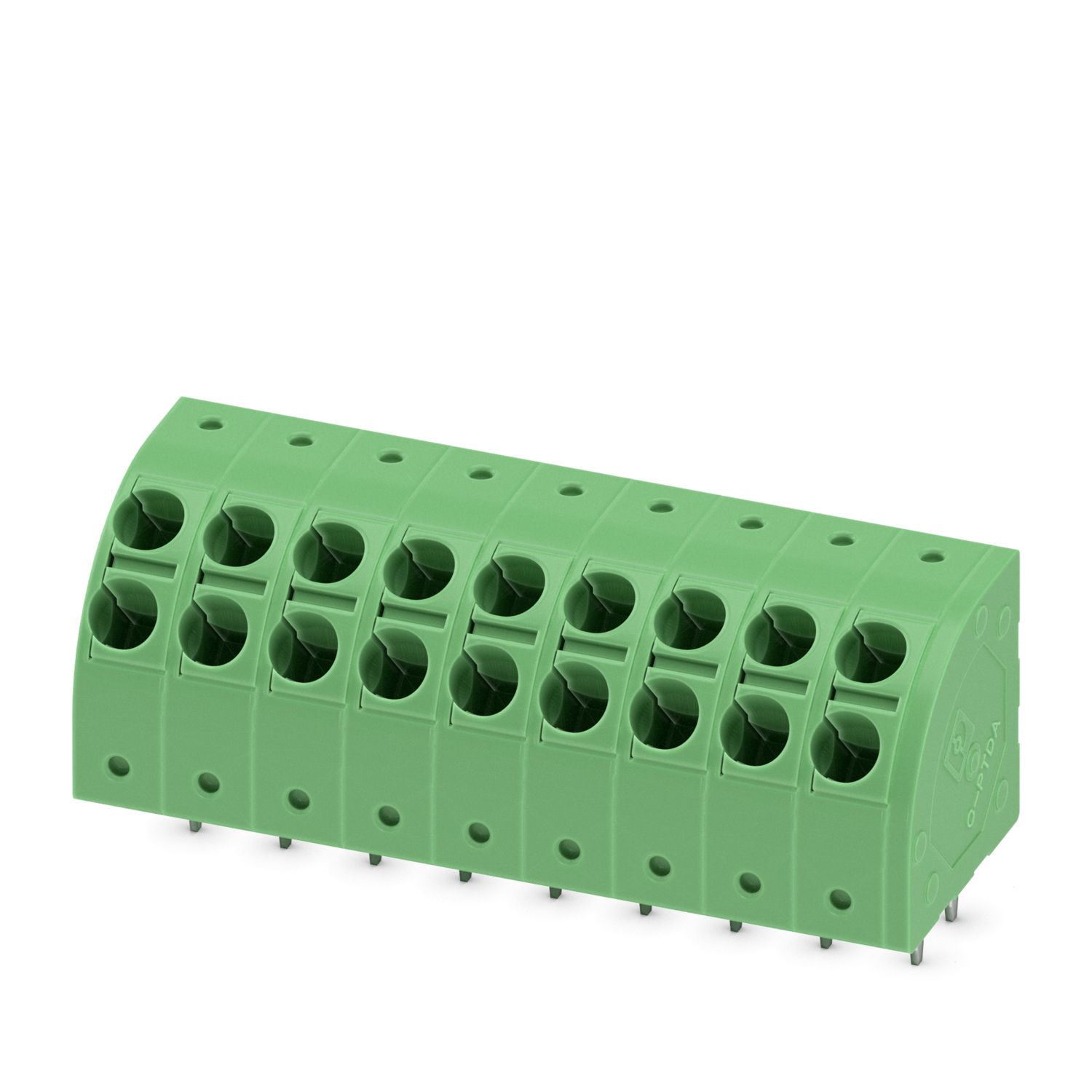

| incl. 4 PCB terminal blocks, 9-pos., Push-in, for 2.5 mm², nominal current: 24 A, 400 V | |
| Ventilation openings present | yes |
| Dimensional drawing |
|
| Width | 107.6 mm |
| Height | 89.7 mm |
| Depth | 60.7 mm |
| Depth from top edge of DIN rail | 54.7 mm |
| Horizontal pitch | 6 Div. |
| Dimensions | 81.54 mm x 107.3 mm (PCB dimensions) |
| PCB design | |
| PCB thickness | 1.4 mm ... 1.8 mm |
| Color (Lower housing part) | black (RAL 9005) |
| Color (Upper housing part) | light gray (RAL 7035) |
| Color (Housing cover) | transparent |
| Flammability rating according to UL 94 | V0 |
| Insulating material | Polycarbonat |
| Housing material | PC |
| Ambient conditions | |
| Max. IP code to attain | IP20 |
| Ambient temperature (operation) | -40 °C ... 105 °C (depending on power dissipation) |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Relative humidity (storage/transport) | 95 % |
| Number of PCB holders | 9 |
| Type of PCB mount | Latching |
| Total PCB surface | 8300 mm² |
| Thickness of the PCB | 1.4 mm ... 1.8 mm |
| Mounting type | DIN rail mounting/panel mounting |
| Type of packaging | packed in cardboard |
| Outer packaging type | Carton |
