HC-SKV 16 MS
-
Screw connection
1676938
Brass screw connection, Pg16
Product details
| Product type | Cable screw gland |
| No. of conductors | 1 |
| Shielded | no |

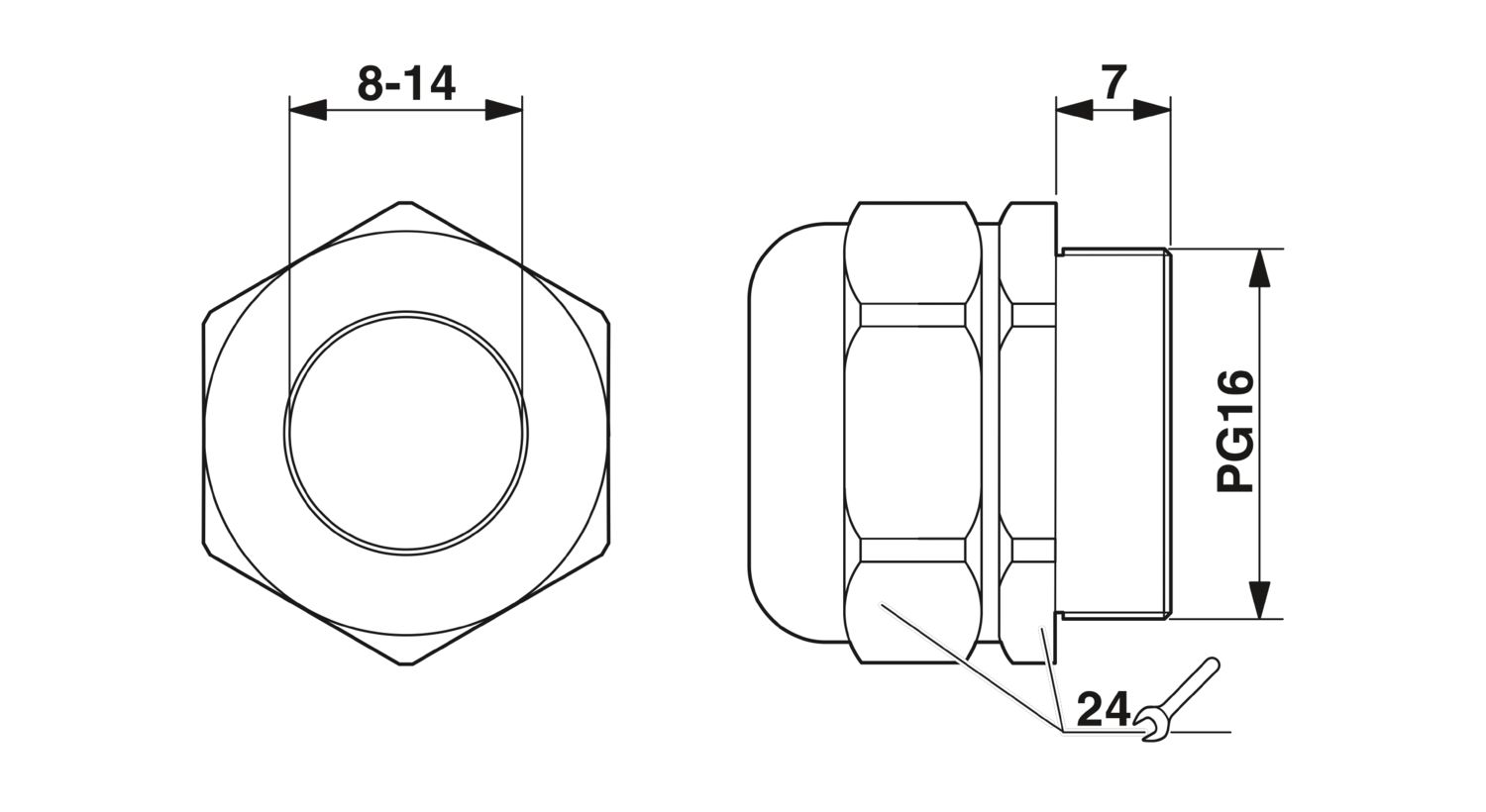

| Dimensional drawing |
|
| Wrench size, union nut | 8 mm |
| Wrench size, support | 14 mm |
| Material for screw connection | Brass, nickel-plated |
| External cable diameter Cable 1 | 8 mm ... 14 mm |
| External cable diameter | 8 mm ... 14 mm |
| Ambient conditions | |
| Degree of protection | IP65 |
| Ambient temperature (operation) | -40 °C ... 125 °C (static) |
