HC-EMV-KV-M25(9-16,5)
-
Cable gland
1690516
EMC screw connection up to 5 bar, thread length: 7.5 mm, cable diameter: 9.0 - 16.5 mm, WAF 29, screw connection: M25
Product details
| Assembly note | Assembly instruction: Method 1 Cut the outer sheath at around 15 mm, but do not remove it. Feed the cable through the screw connection and then remove the outer sheath. Now pull the cable back until the connection is established between the cable shield and the contact spring. Method 2 Push the braided shield back around 15 - 20 mm over the outer sheath. Insert the cables into the screw connection until the connection is established between the cable shield and the contact spring. Method 3 Expose (partially strip) around 10 mm of the braided shield and feed the cable through the screw connection until the connection is established between the cable shield and the contact spring. |
| Product type | Cable screw gland |
| No. of conductors | 1 |
| Shielded | yes |
| Conductor sealing range | 7.50 mm ... 16.50 mm (Cable shield diameter) |

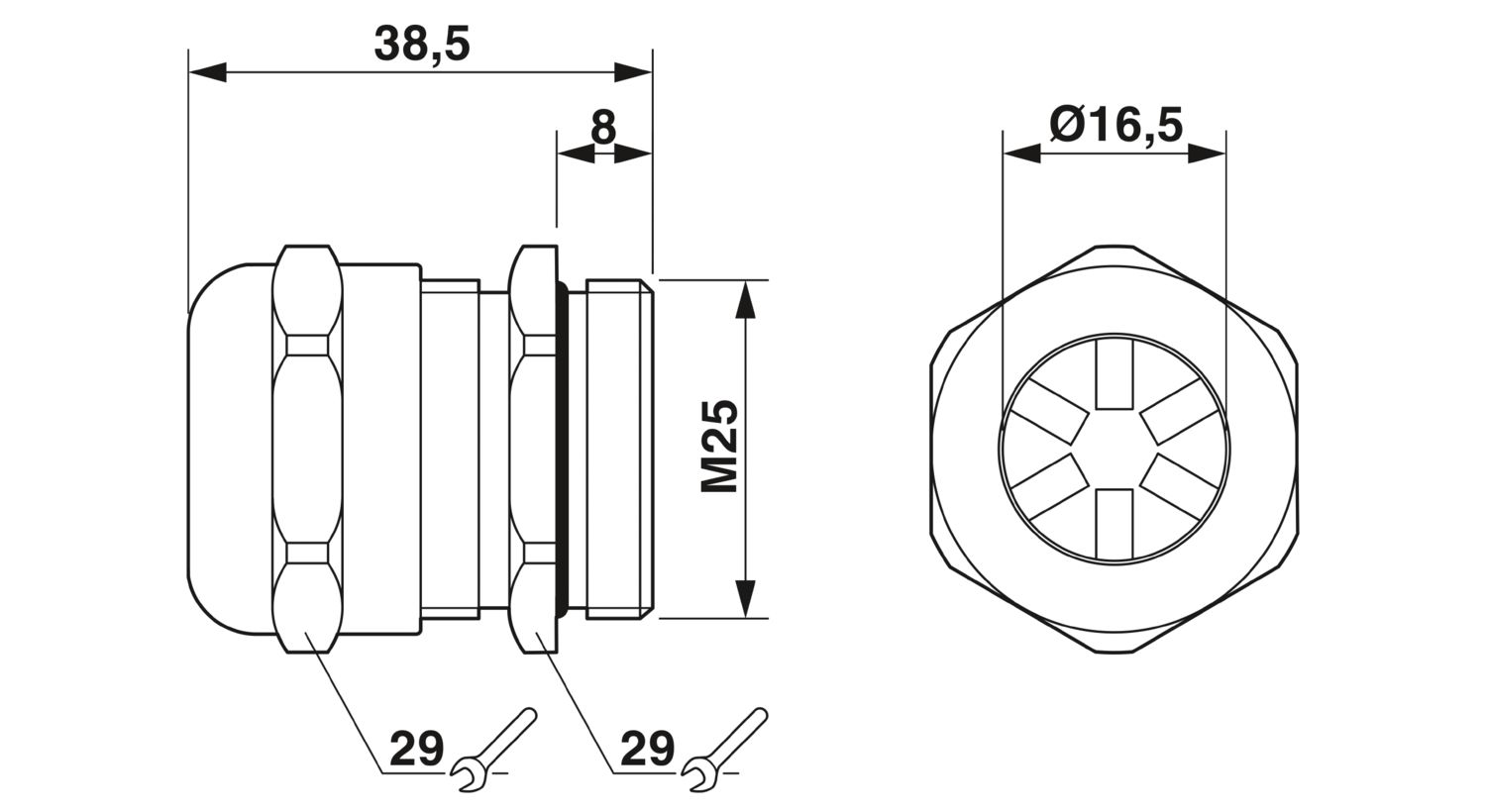

| Dimensional drawing |
|
| Length | 38.5 mm |
| Length of the connecting thread | 8 mm |
| Wrench size, union nut | 29 mm |
| Wrench size, support | 29 mm |
| Hexagon angular dimension | 31.9 mm |
| Thread type connection side | M25 |
| Tightening torque | 12 Nm (Union nut) |
| 12 Nm |
| Color | brass color |
| Material Compression ring | PA |
| Seal material O-ring | NBR |
| Seal material Cable seal | Neoprene |
| Material for screw connection | Brass, nickel-plated |
| External cable diameter Cable 1 | 9 mm ... 16.5 mm |
| Ambient conditions | |
| Degree of protection | IP68 (up to 5 bar) |
| Ambient temperature (operation) | -20 °C ... 100 °C |
