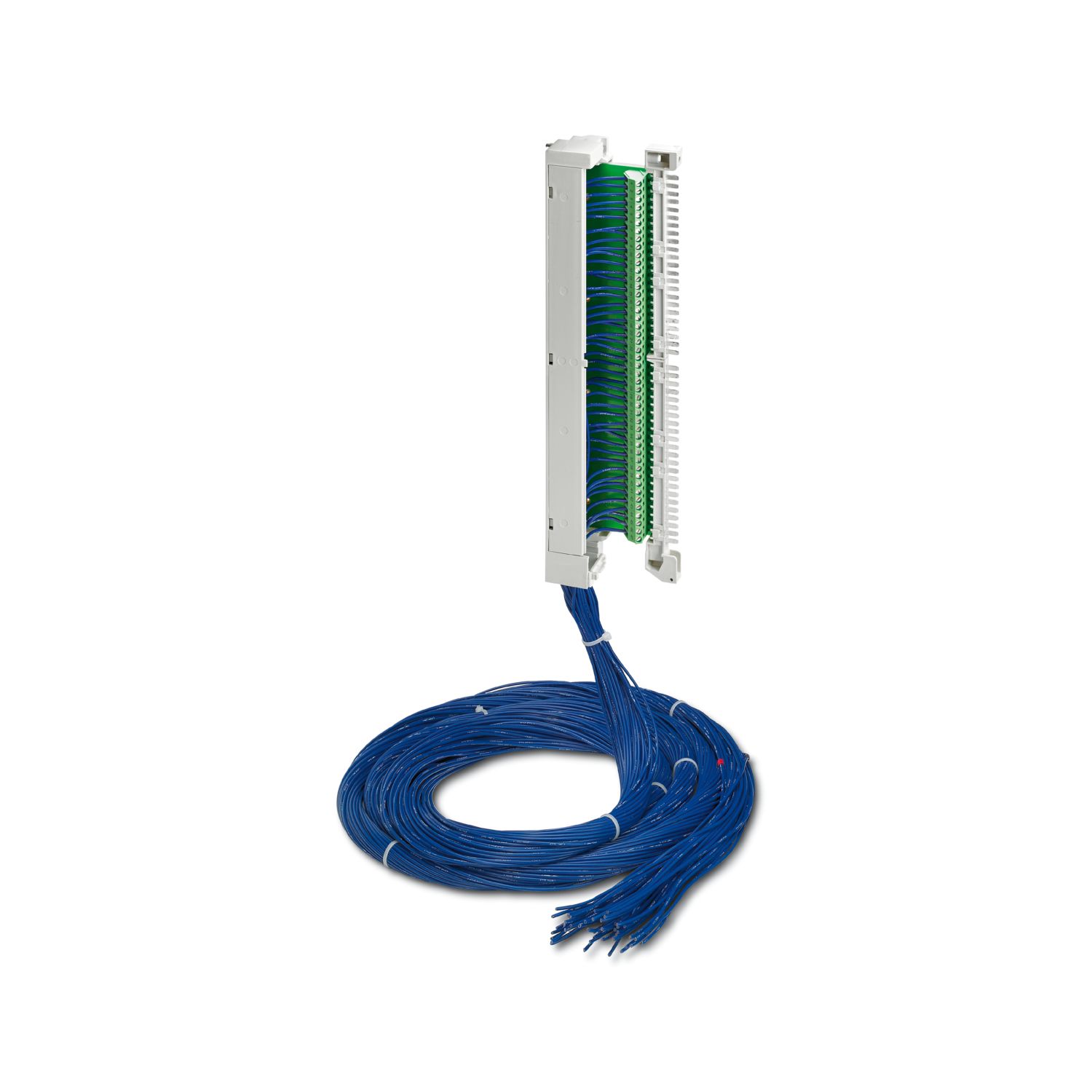

FLKM S115/47X0,75/5,0M/OE
-
Front adapter
2314998

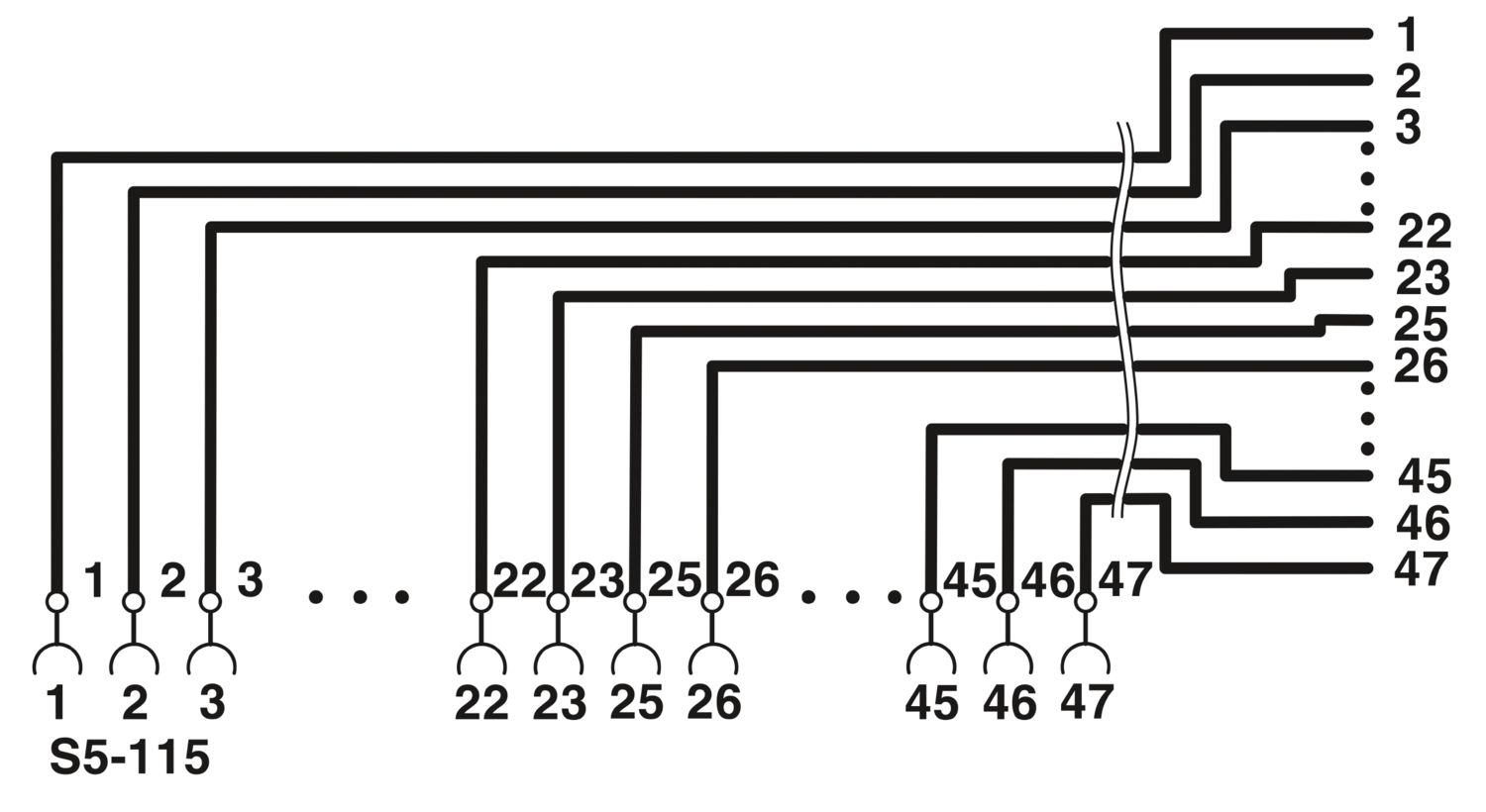

Startup adapter for extending the existing S5-115 field wiring. Establishing all S5-115 connections (1 to 23, 25 to 47, 46-pos.) to open cable end.
Product details
| Product type | Front adapter |
| Insulation characteristics | |
| Overvoltage category | II |
| Pollution degree | 2 |
| Operating voltage (AC/DC) | ≤ 250 V AC/DC |
| Current (Per path) | ≤ 6 A |
| Rated insulation voltage | 260 V |
| Rated surge voltage | 2.3 kV (Functional insulation) |
| Supported controller SIEMENS S5-115 U | |
| Suitable I/O card | 6ES5 ... |
| Controller level | |
| Connection method | SIEMENS S5-115 U pin strip |
| Field level | |
| Connection method | Single wires |
| Number of connections | 47 |
| Number of positions | 1 |
| Number of positions | 46 |
| Shielded | no |
| Conductor type | Round cable set |
| AWG signal line | 21 |
| Conductor cross section | 46x 0.75 mm² |
| Outer sheath, material | Semi-rigid PVC |
| Conductor material | Bare Cu litz wires |
| Halogen-free | no |
| Ambient conditions | |
| Degree of protection | IP00 |
| Ambient temperature (operation) | -20 °C ... 50 °C |
| Ambient temperature (storage/transport) | -20 °C ... 80 °C |
| Standards/regulations | DIN EN 50178 |
| IEC 60664 |
| Mounting position | any |
| Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
| Item number | 2314998 |
| Packing unit | 1 pc |
| Note | Made to order (non-returnable) |
| Sales key | C421 |
| Product key | DK233S |
| Catalog page | Page 543 (C-5-2019) |
| GTIN | 4046356292931 |
| Weight per piece (including packing) | 2,763 g |
| Weight per piece (excluding packing) | 2,688 g |
| Customs tariff number | 85444290 |
| Country of origin | DE |
ECLASS
| ECLASS-13.0 | 27242292 |
UNSPSC
| UNSPSC 21.0 | 32151601 |
| China RoHS | |
| Environment friendly use period (EFUP) |
EFUP-50
An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
|
| EU REACH SVHC | |
| REACH candidate substance (CAS No.) | No substance above 0.1 wt% |
