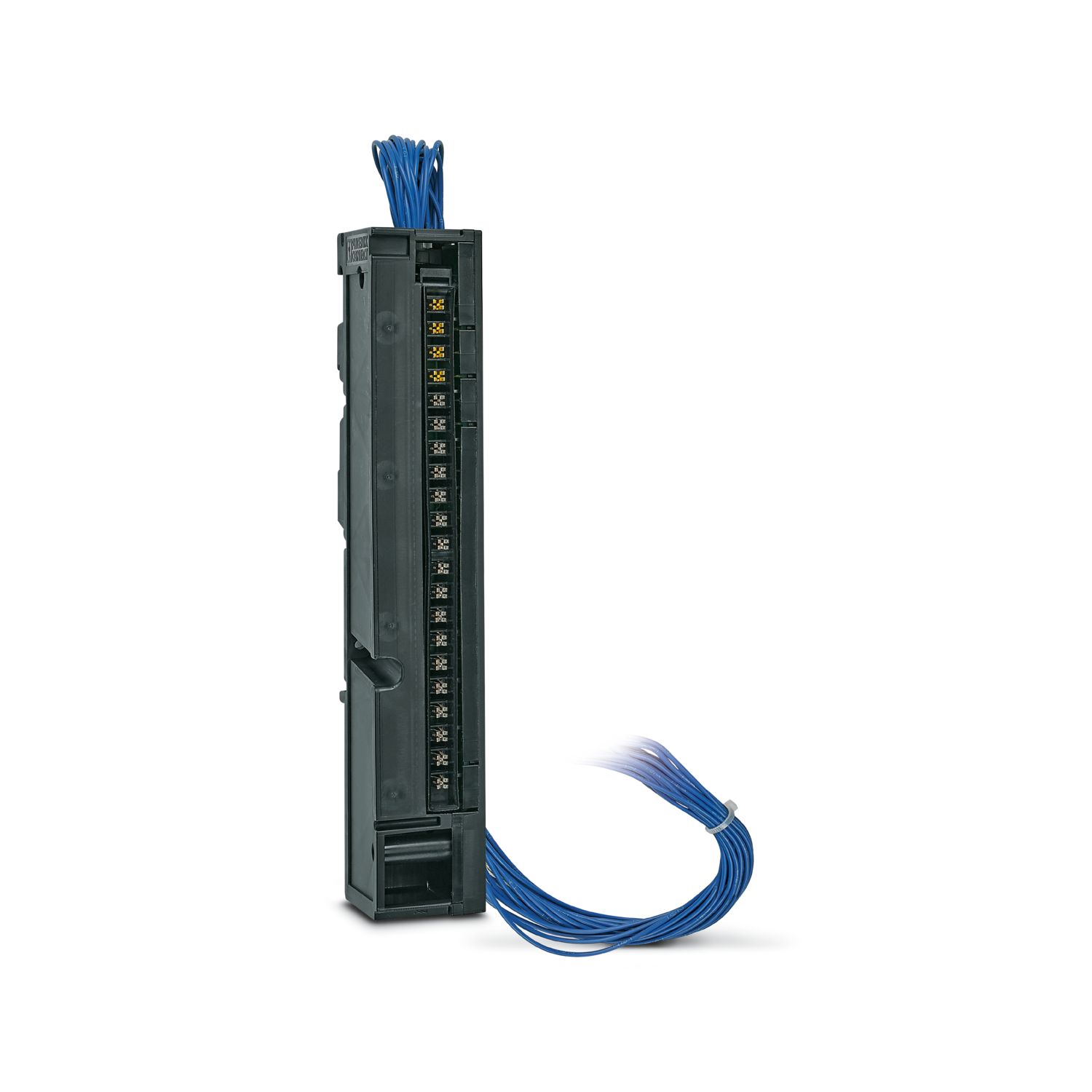

FLKM-1771-WH/OE/21X0,5/0,7M
-
Adapter
2910099
Migration adapter for converting Allen Bradley PLC-5 (1771-WH) to single wires
Product details
| Product type | Front adapter |
| Insulation characteristics | |
| Insulation | Basic insulation |
| Overvoltage category | III |
| Pollution degree | 2 |
| Max. permissible operating voltage | 264 V AC/DC |
| Max. permissible current | 2 A (per path) |
| Max. permissible total current | 42 A |
| Nominal operating mode | 100% operating factor |
| Mains frequency | 50/60 Hz |
| Rated insulation voltage | 280 V |
| Rated surge voltage | 4 kV |
| Allen-Bradley PLC-5® | |
| Connection method | Plug-in connection |
| Connection method | Single wires |
| Number of positions | 21 |
| Note | Wire marking: white number printing |
| Item dimensions | |
| Width | 35 mm |
| Height | 242 mm |
| Depth | 60 mm |
| Cable | |
| Length | 0.7 m |
| Number of positions | 21 |
| Shielded | no |
| Conductor type | Round cable set |
| AWG signal line | 21 |
| Conductor cross section | 21x 0.5 mm² |
| Outer sheath, material | PVC |
| External sheath, color | blue |
| Conductor material | Bare Cu litz wires |
| Halogen-free | no |
| Flame resistance | UL VW-1 |
| Ambient conditions | |
| Degree of protection | IP20 |
| Degree of protection (Installation location) | ≥ IP54 (Installation location) |
| Ambient temperature (operation) | -20 °C ... 60 °C |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Altitude | ≤ 2000 m (Above sea level) |
| Permissible humidity (operation) | 95 % (non-condensing) |
| CE | |
| Certificate | CE-compliant |
| UL, USA/Canada | |
| Identification | UL Listed UL 61010-2-201 |
| Standards/regulations | DIN EN 50178 |
| Mounting position | any |
| Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
| Item number | 2910099 |
| Packing unit | 1 pc |
| Note | Made to order (non-returnable) |
| Sales key | C421 |
| Product key | DK233R |
| Catalog page | Page 547 (C-5-2019) |
| GTIN | 4055626426709 |
| Weight per piece (including packing) | 461 g |
| Weight per piece (excluding packing) | 461 g |
| Customs tariff number | 85444290 |
| Country of origin | DE |
ECLASS
| ECLASS-13.0 | 27242292 |
ETIM
| ETIM 8.0 | EC002584 |
UNSPSC
| UNSPSC 21.0 | 32151600 |
| EU RoHS | |
| Fulfills EU RoHS substance requirements | Yes |
| Exemption | 6(c) |
| China RoHS | |
| Environment friendly use period (EFUP) |
EFUP-50
An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
|
| EU REACH SVHC | |
| REACH candidate substance (CAS No.) | Lead (CAS: 7439-92-1) |
| SCIP | f6f7147d-51ae-480c-809c-a4d3848122f9 |
