A-INL-NPT1-P-BK
-
Counter nut
1411239
Counter nut, for threads 1"-NPT, color: jet black RAL 9005
Product details
| Product type | Flat nut |
| Thread type | 1"-NPT |

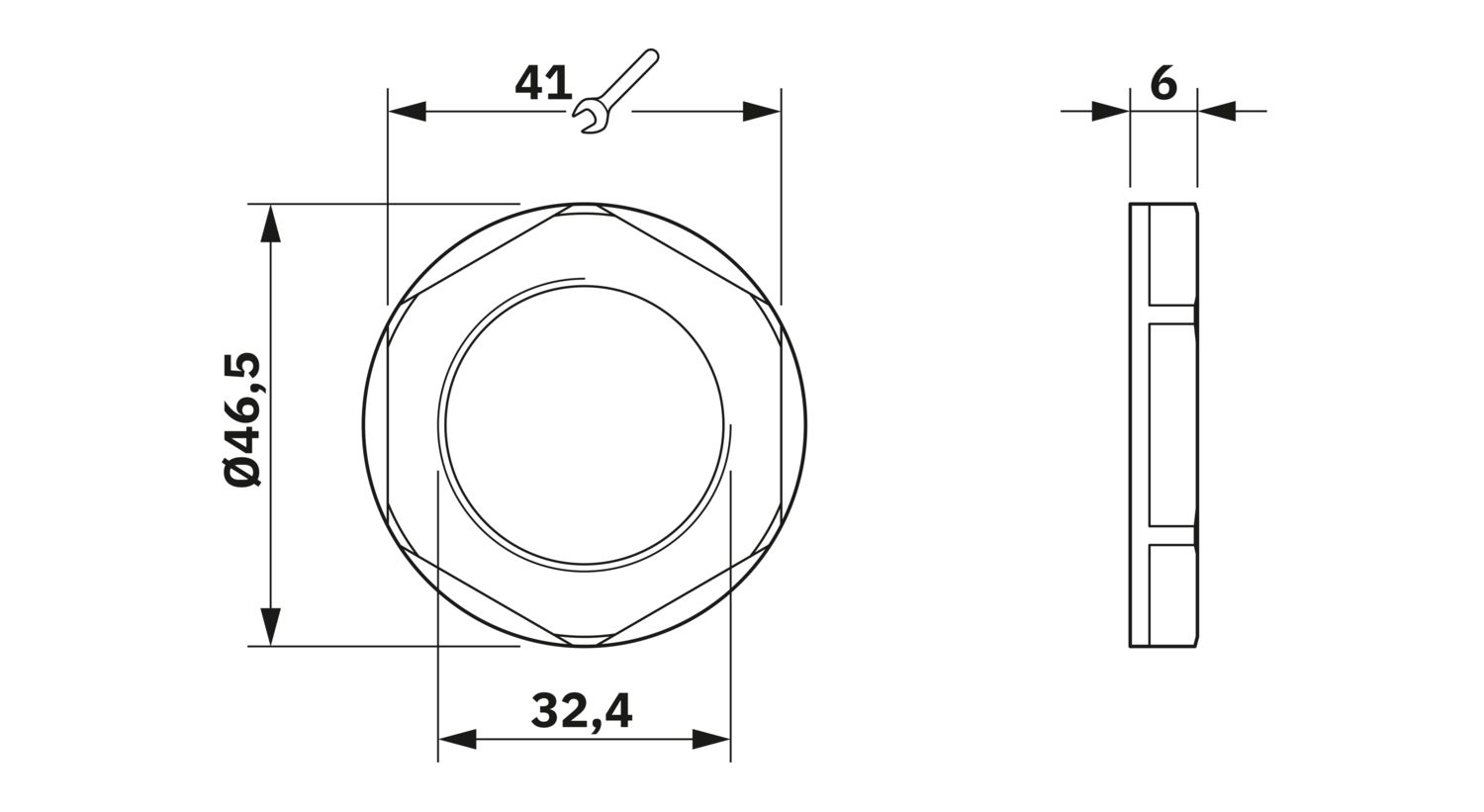

| Dimensional drawing |
|
| Length | 6 mm |
| Diameter | 32.4 mm |
| Connecting thread diameter | 32.4 mm |
| Wrench size, counter nut | 41 mm |
| Hexagon angular dimension | 46.5 mm |
| Thread type connection side | 1"-NPT |
| Material | PA |
| Flammability rating according to UL 94 | V2 |
| Halogen-free | yes |
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 100 °C |
