A-INL-M50-P-GY
-
Counter nut
1411211
Product details
| Product type | Flat nut |
| Thread type | M50 |

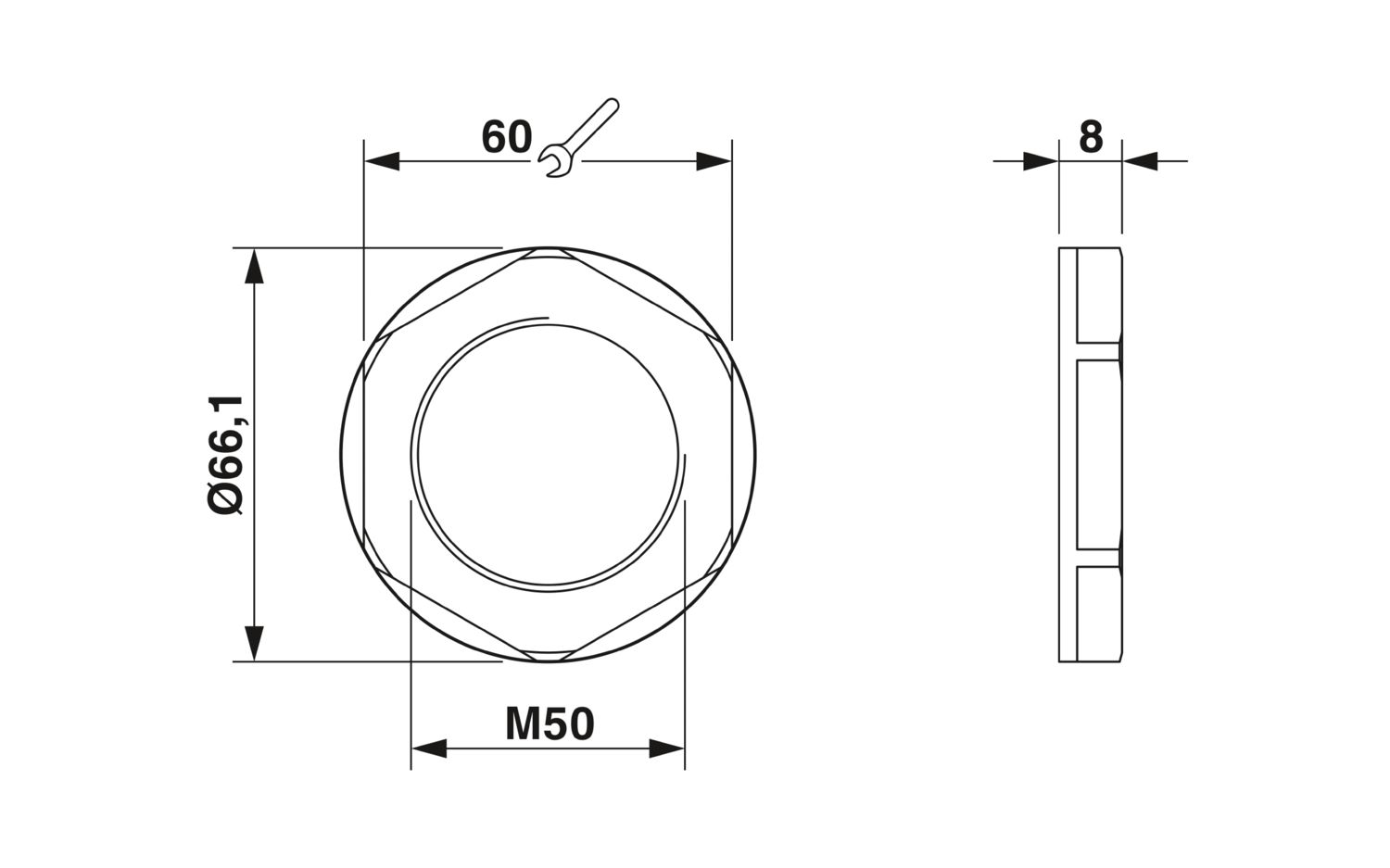

| Dimensional drawing |
|
| Length | 8 mm |
| Diameter | 50 mm |
| Connecting thread diameter | 50 mm |
| Wrench size, counter nut | 60 mm |
| Hexagon angular dimension | 66.1 mm |
| Thread type connection side | M50 x 1.5 |
| Thread pitch | 1.5 mm |
| Color | silver grey (RAL 7001) |
| Material | PA |
| Flammability rating according to UL 94 | V2 |
| Halogen-free | yes |
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 100 °C |
