AI120 -27 BU
-
Ferrule
3201822

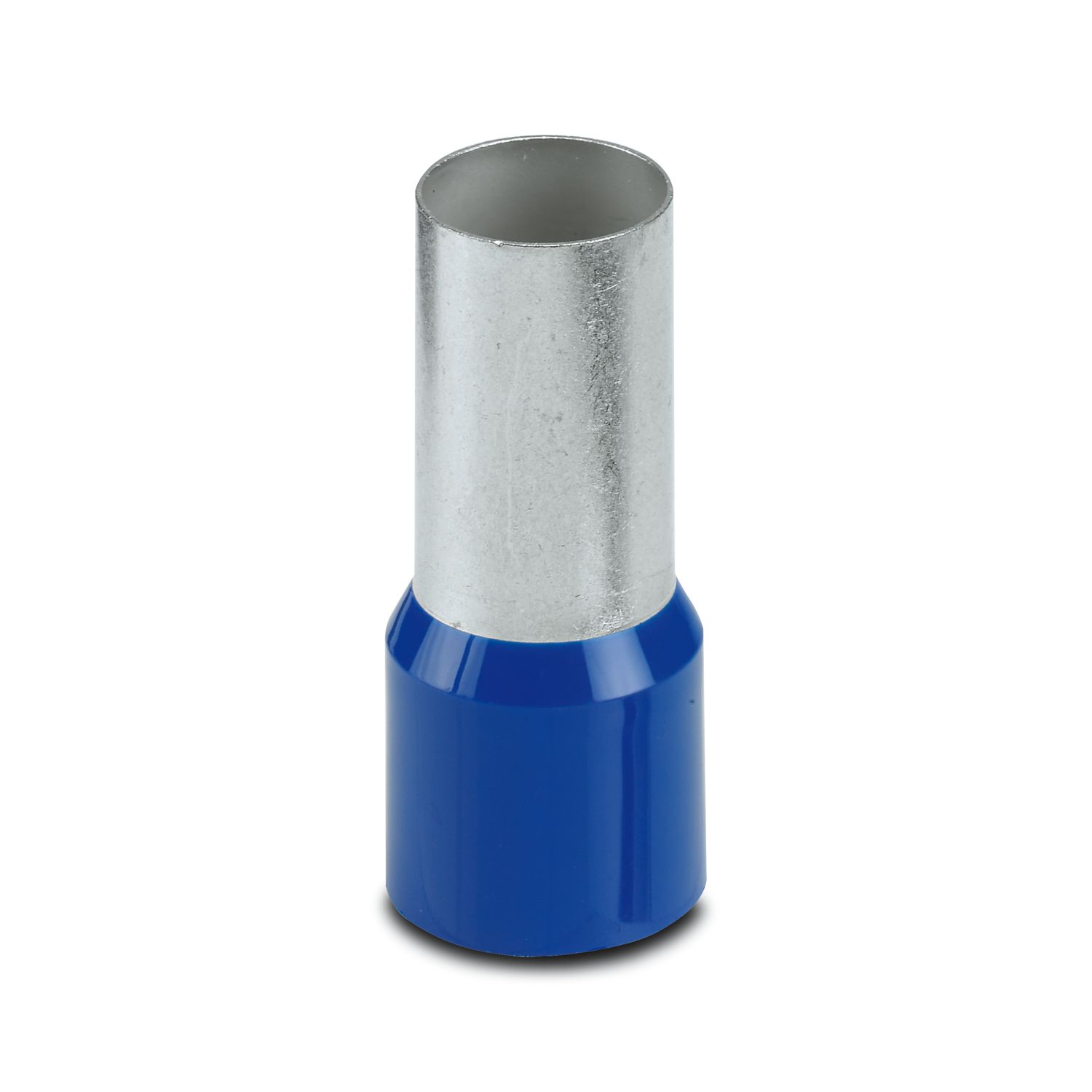

Ferrule, Length contact range: 27 mm, sleeve length: 48 mm, color: blue
Product details
| General | Ferrules are not included in DIN 46228-4:1990-09 |
| Product type | Cable end sleeve |
| Product property | Made from soft tin-plated electrolytic copper |
| Correspond to the requirements of DIN 46228-1 and UL 486F in terms of size | |
| Plastic collar made of polypropylene | |
| Halogen-free | |
| Long/short-term temperature: +105°C/+120°C |
| Conductor connection | |
| Conductor cross section flexible max. | 120 mm² |
| Conductor cross section AWG max. | 250 MCM |
| Stripping length | 32 mm |
| Dimensional drawing |
|
| Sleeve length | 48 mm |
| Length contact range | 27 mm |
| Maximum stripping length | 32 mm |
| Ferrule diameter | 16.7 mm |
| Sleeve wall thickness | 0.45 mm |
| Insulating collar thickness | 0.7 mm |
| Inner dimensions of the insulating collar | 21 mm |
| Color | blue (RAL 5015) |
| Material | E-CU |
| Flammability rating according to UL 94 | HB |
| Coating | galvanically tin-plated |
| Surface characteristics | Tin-plated |
| Components | free from silicone and halogen |
| Technical data | |
| Sleeve length | 48 mm |
| Ambient conditions | |
| Permanent temperature | 105 °C (-40 °C no load / 0 °C dynamic load) |
| Short-term temperature | 120 °C |
| Design according to standard | Special color |
Your advantages
The ferrules with plastic sleeve are made from soft tin-plated electrolytic copper
The insulation reliability of close connections is increased and the splicing of wires is prevented
