AI-WM 0,75-8 GY
-
Ferrule
3240543

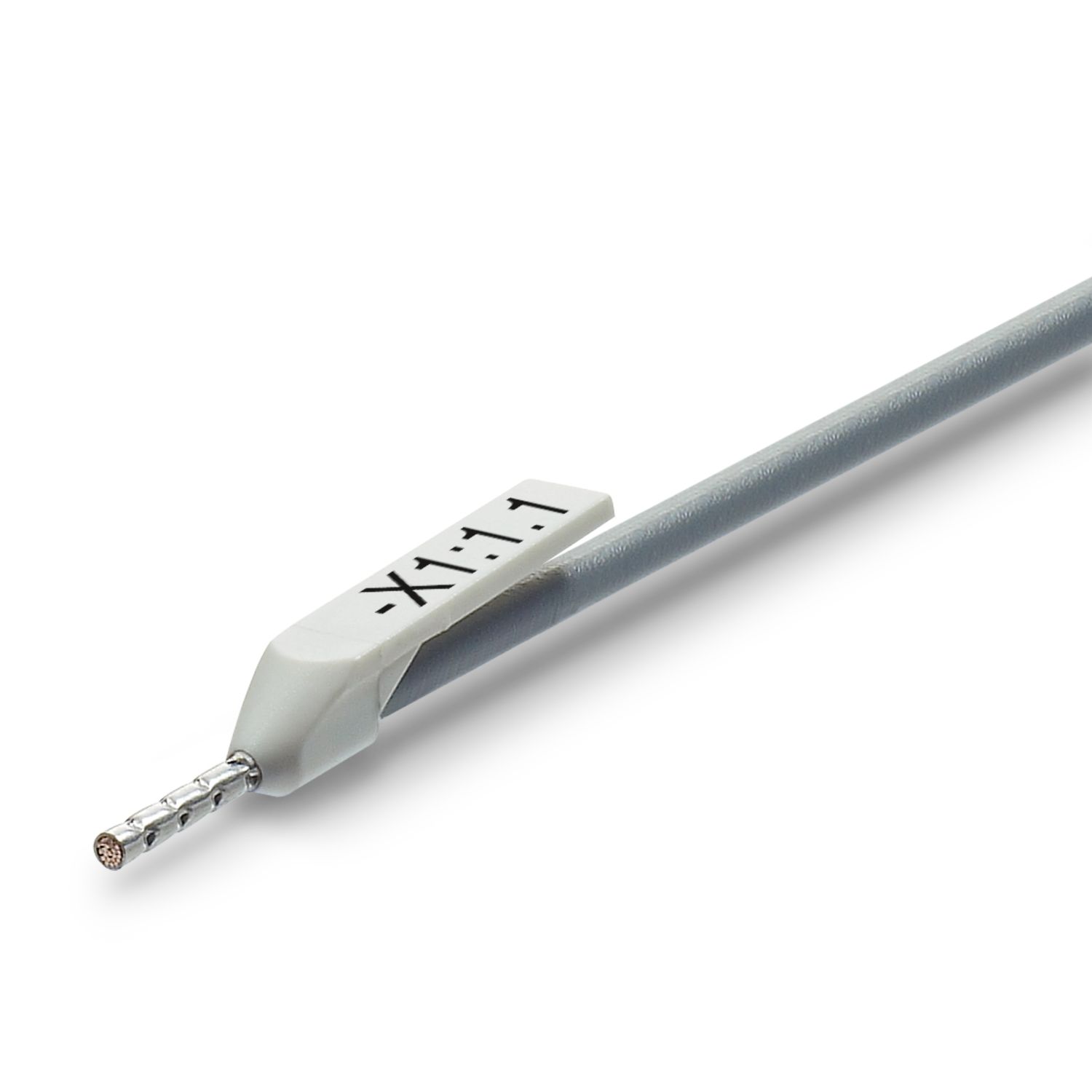

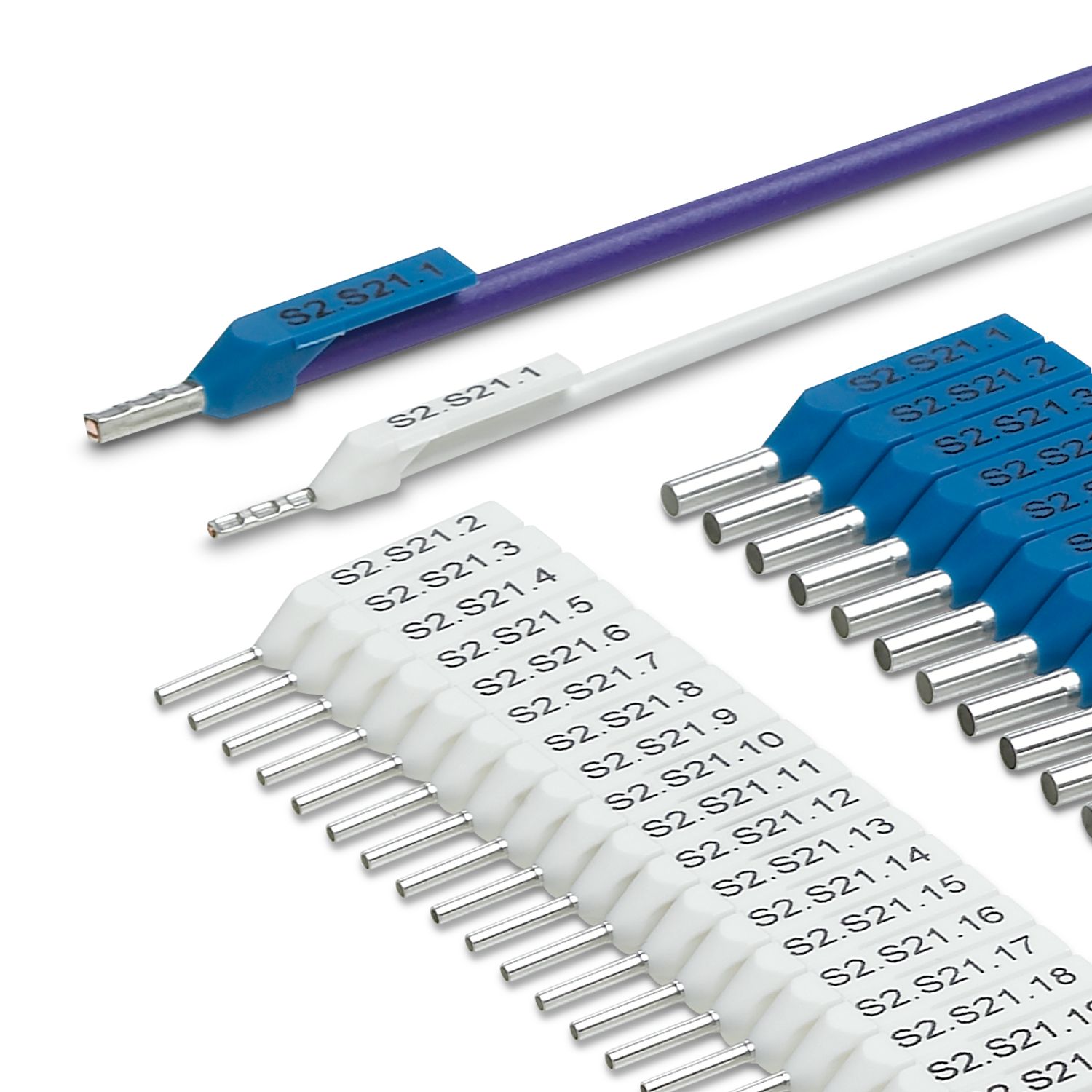

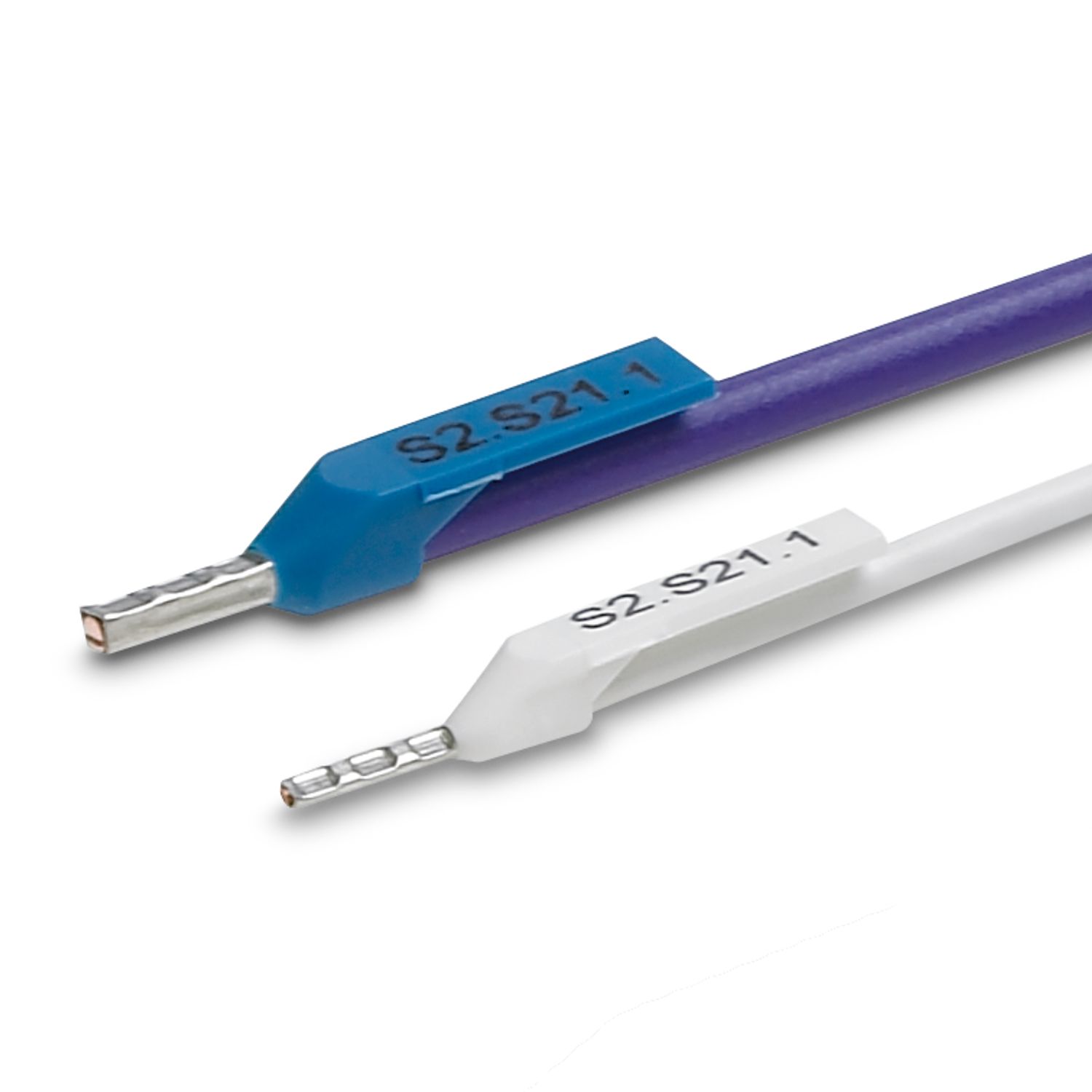

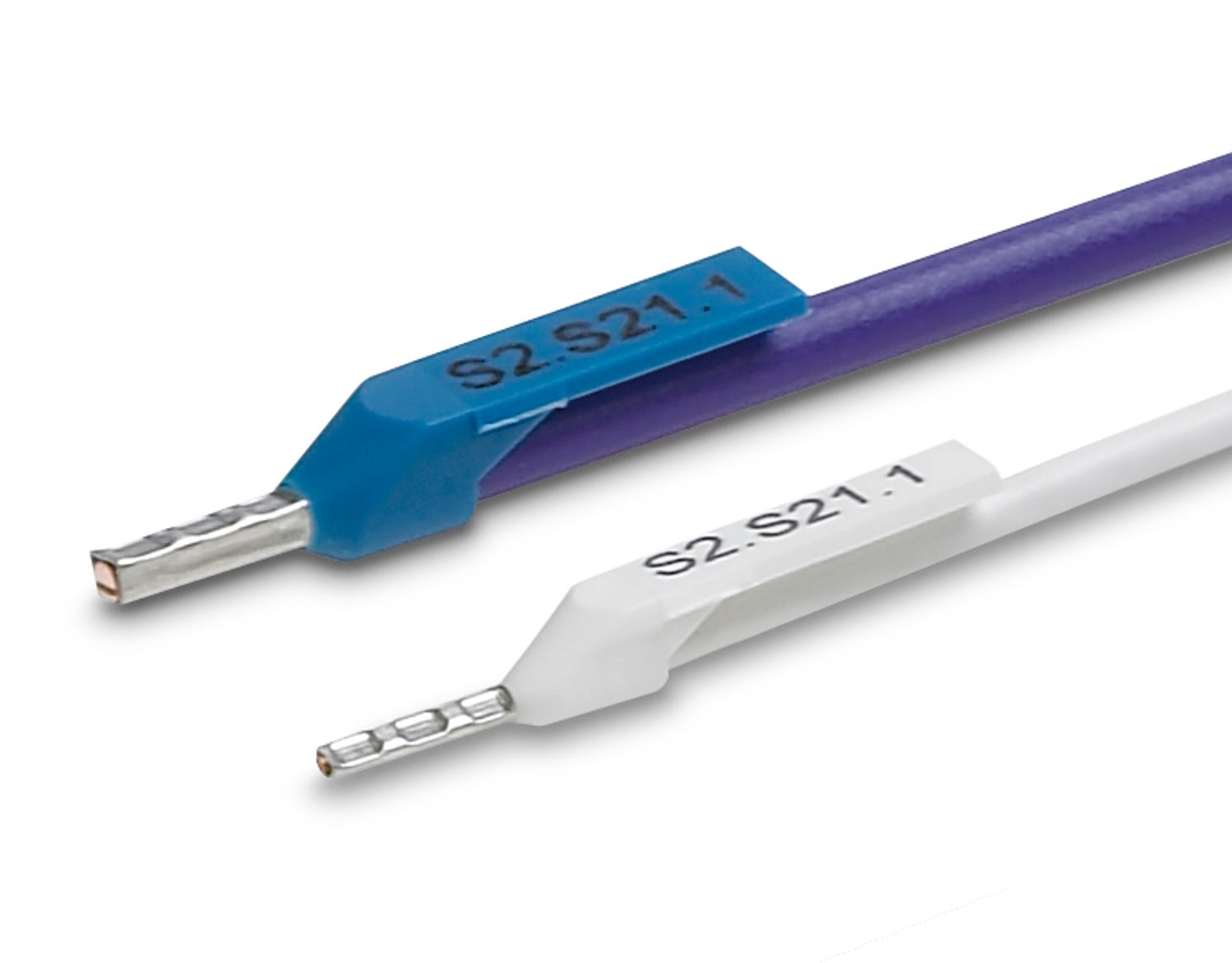

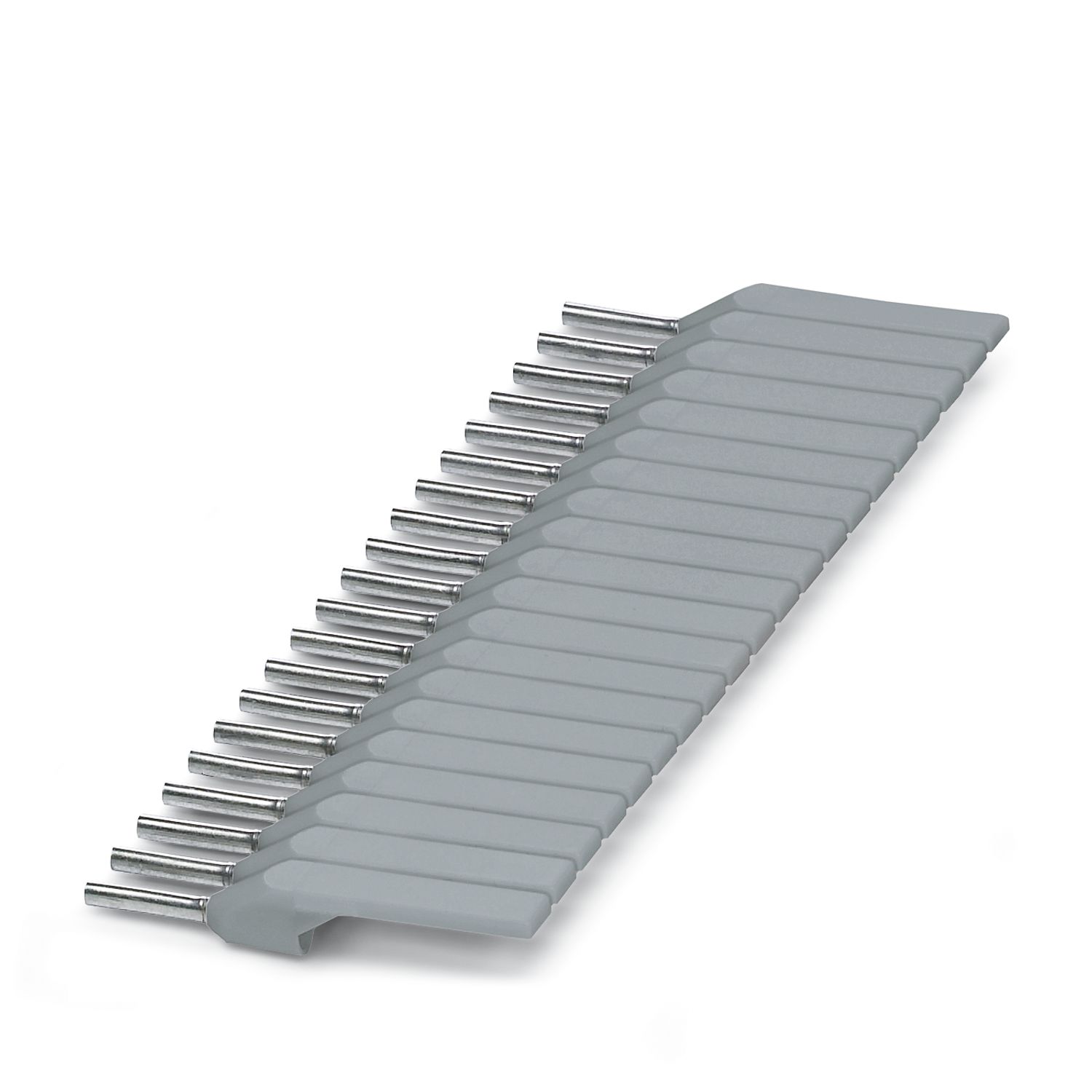

Ferrule with insulating collar that can be labeled. When using the magazine, the ferrules can be labeled with BLUEMARK.
Product details
| Product type | Cable end sleeve |

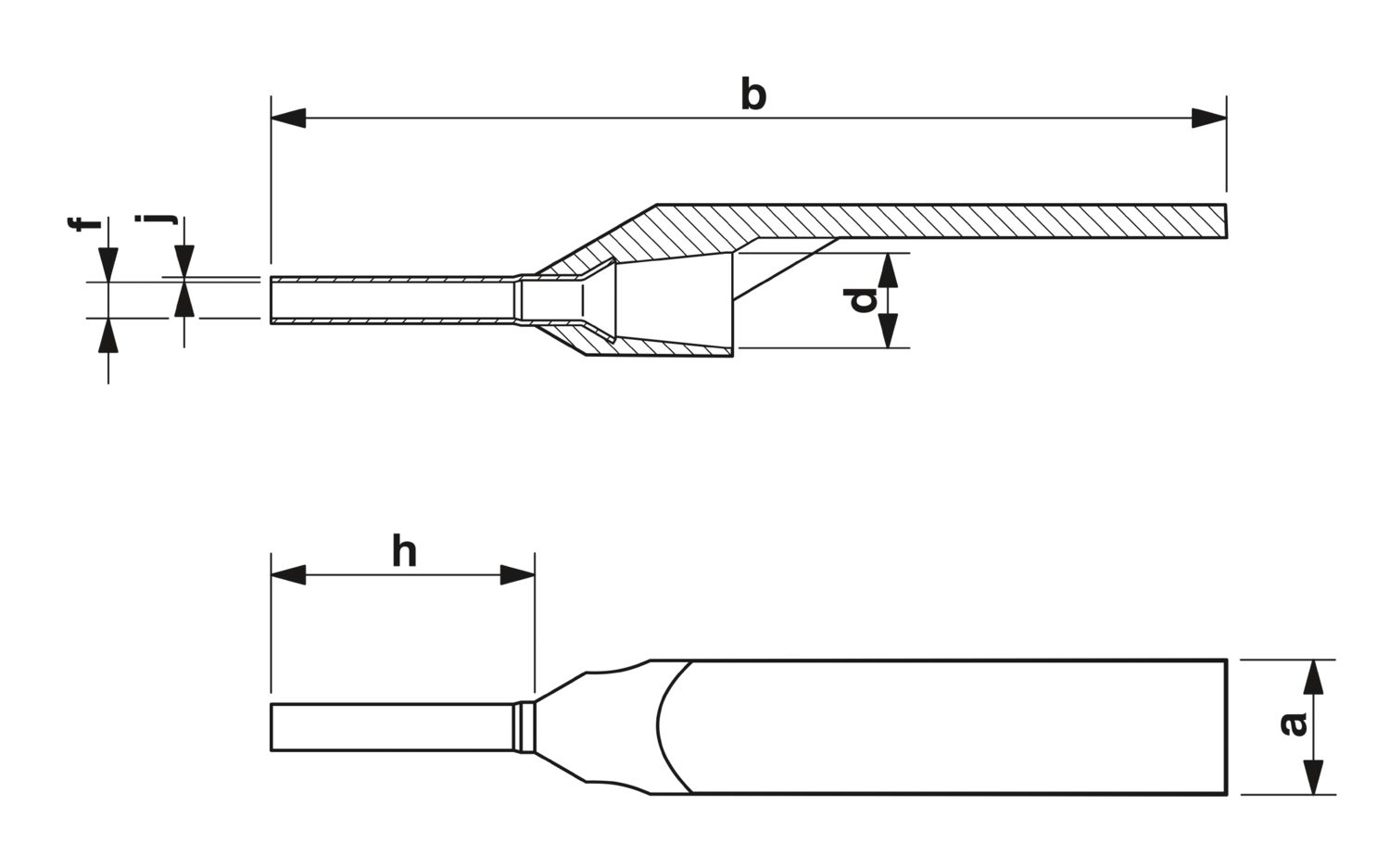

| Dimensional drawing |
|
| Width | 4.6 mm |
| Sleeve length | 8 mm |
| Ferrule diameter | 1.6 mm |
| Sleeve wall thickness | 0.15 mm |
| Inner dimensions of the insulating collar | 2.9 mm |
| Internal dimensions | |
| Internal diameter | 1.3 mm |
| Color | gray (RAL 7042) |
| Material | E-CU |
| Flammability rating according to UL 94 | HB |
| Coating | galvanically tin-plated |
| Surface characteristics | Tin-plated |
| Components | free from silicone and halogen |
| External cable diameter | = 1.00 mm |
| Technical data | |
| Sleeve length | 8 mm |
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 120 °C |
| Permanent temperature | 105 °C (-40 °C no load / 0 °C dynamic load) |
| Short-term temperature | 120 °C |
Your advantages
Electrogalvanized
Ferrules made from electrolytic copper
Highly resistant and optimum printing quality thanks to modern UV printing technology
Crimping and marking in one step
Ferrules can be labeled with BLUEMARK
