AI 0,34-10 TQ-25000
-
Ferrule
2100142

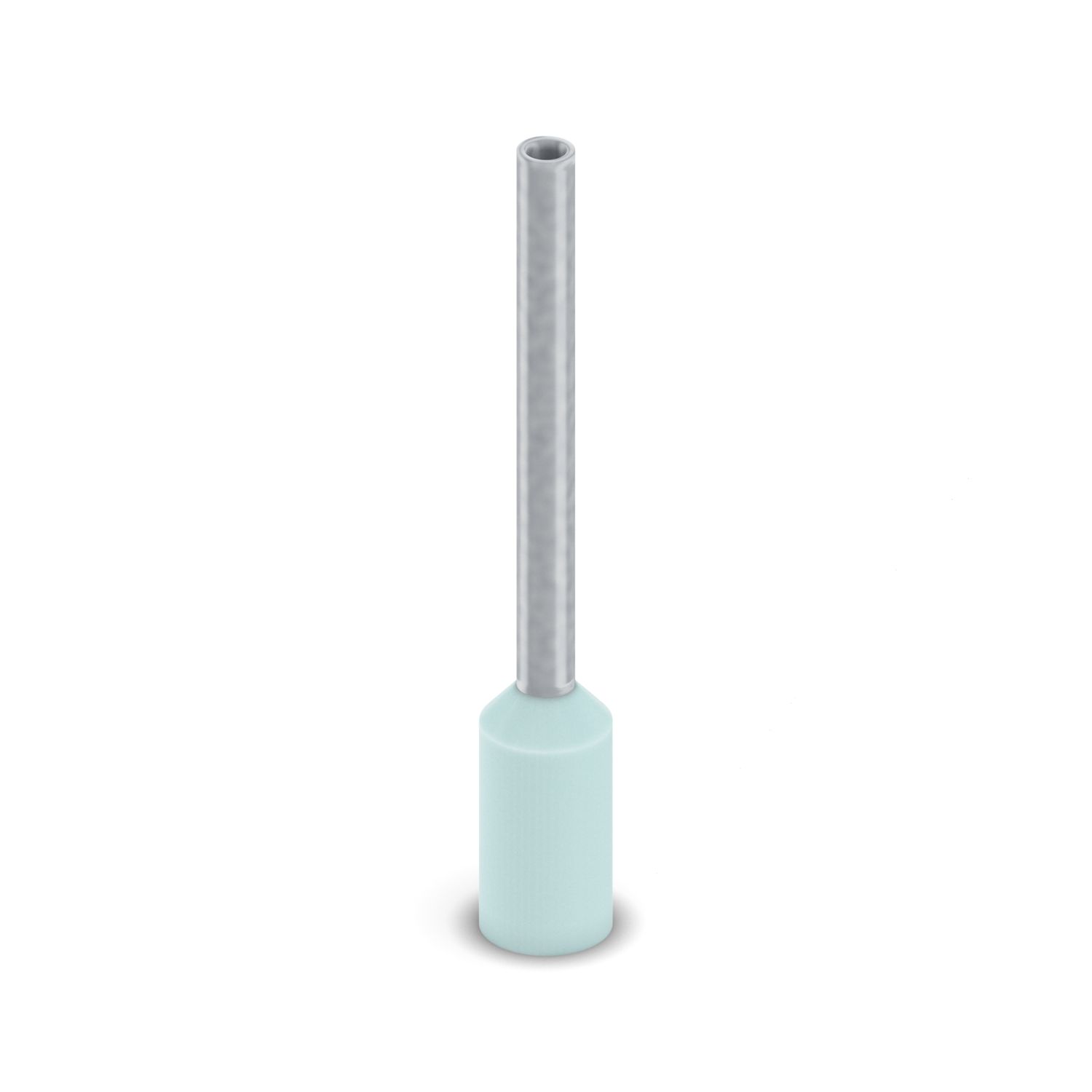

Ferrule, Length contact range: 10 mm, sleeve length: 14.5 mm, color: turquoise
Product details
| Product type | Cable end sleeve |
| Conductor category | stranded conductors, class 2, 5, 6 / B, C, K, M |
| Product property | UL certified |
| Made from soft tin-plated electrolytic copper | |
| Correspond to the requirements of DIN 46228-1 and UL 486F in terms of size | |
| Plastic collar made of polypropylene | |
| Halogen-free | |
| Long/short-term temperature: +105°C/+120°C |
| Conductor connection | |
| Conductor cross section flexible max. | 0.34 mm² |
| Conductor cross section AWG max. | 22 |
| Stripping length | 12 mm |
| Dimensional drawing |
|
| Sleeve length | 14.5 mm |
| Length contact range | 10 mm |
| Maximum stripping length | 12 mm |
| Ferrule diameter | 0.8 mm |
| Sleeve wall thickness | 0.15 mm |
| Insulating collar thickness | 0.25 mm |
| Inner dimensions of the insulating collar | 2 mm |
| Color | pastel turquoise (RAL 6034) |
| Material | CU-DHP |
| Flammability rating according to UL 94 | HB |
| Coating | galvanically tin-plated |
| Surface characteristics | Tin-plated |
| Components | free from silicone and halogen |
| Technical data | |
| Sleeve length | 14.5 mm |
| Design according to standard | Special color |
Your advantages
The ferrules with plastic sleeve are made from soft tin-plated electrolytic copper
