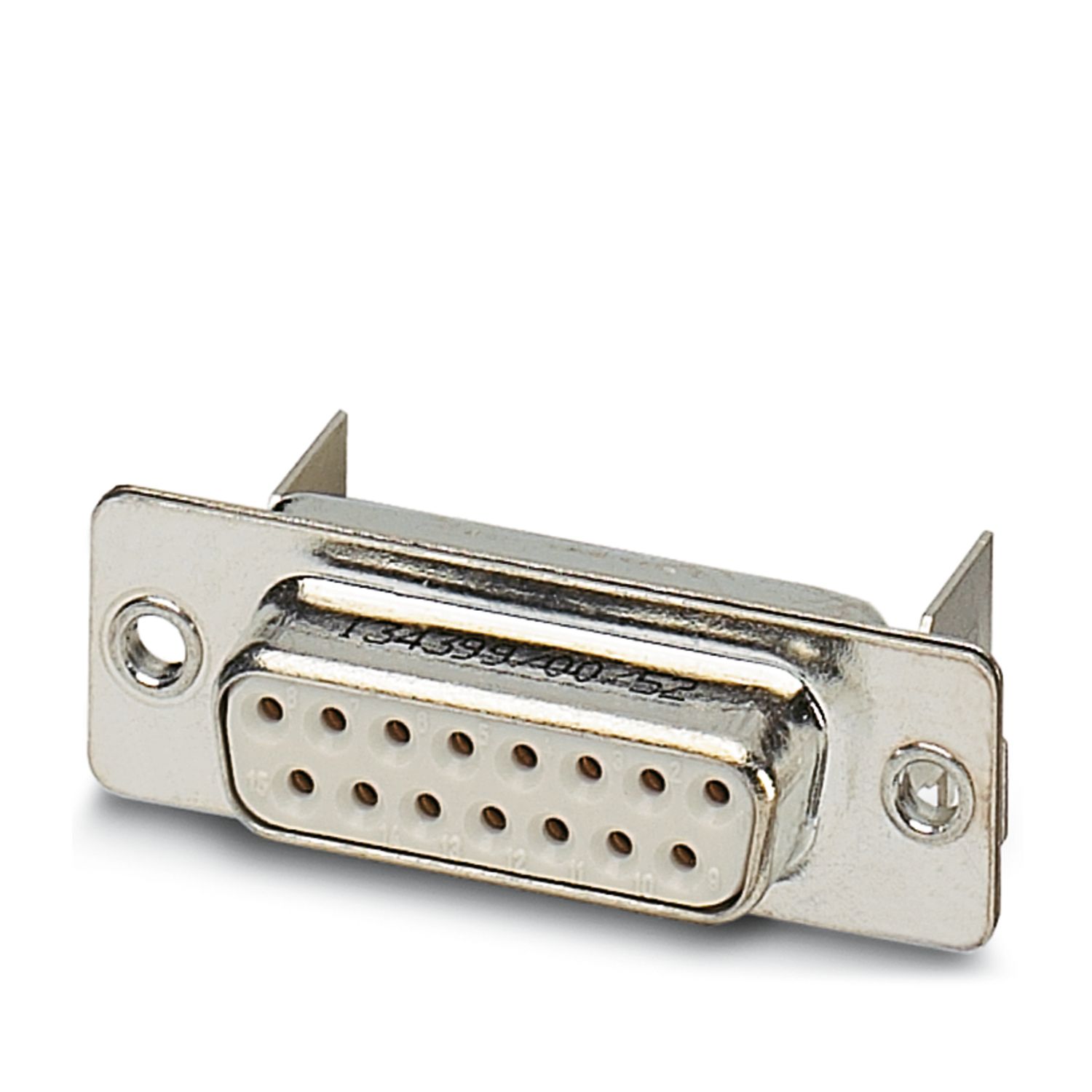

VS-15-BU-DSUB-LH-B - D-SUB contact insert

1654811

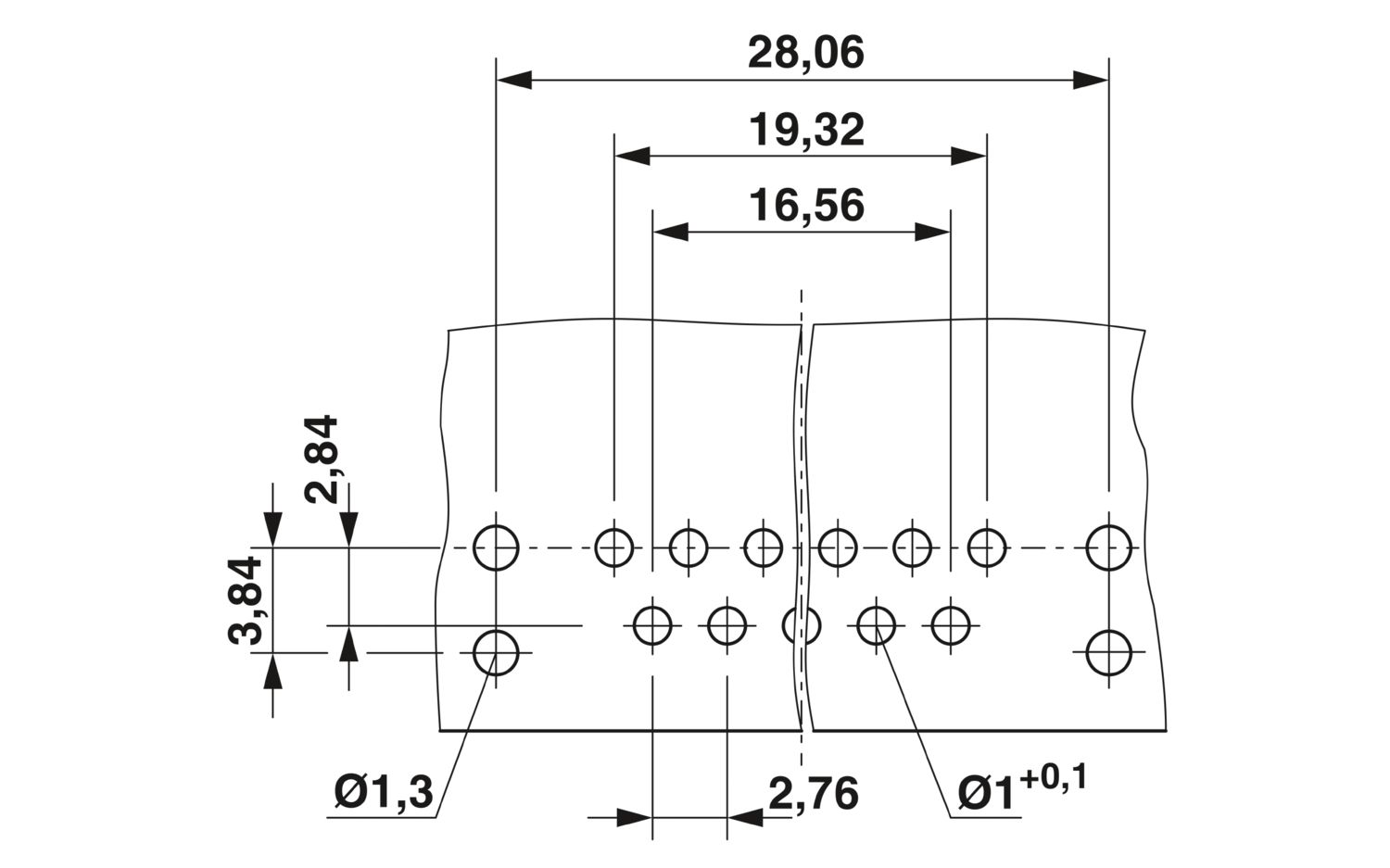

D-SUB contact insert, shell size 2, with 15 signal contacts, type of contact socket, for PCB assembly, angled, fixing with a 2.5 mm hole and solder metal plate, for panel mounting frame VS-15-...

Product type	Contact insert
Type	D-SUB
Number of positions	15
Connection profile	D-SUB
Number of slots	1
Type	Socket
Shielded	yes
Insulation characteristics
Overvoltage category	III
Degree of pollution	2

Rated voltage in acc. with IEC 61076-2-101	400 V
Rated voltage (III/3)	125 V
Rated surge voltage	1 kV
Rated current	5 A (at 20 °C)
Test voltage	1200 V
Transmission medium	Copper
Power transmission	Power

Connection method	Wave soldering contacts

Width	20.2 mm
Height	12.93 mm
Length	39.52 mm

Flammability rating according to UL 94	V0
Housing material	Metal
Housing surface material	metal-plated
Contact material	Copper alloy
Contact surface material	Gold
Contact carrier material	PBT-GF

Mechanical data
Insertion/withdrawal cycles	≥ 200
Insertion force per signal contact	≤ 3.40 N

Ambient conditions
Degree of protection	IP20
Ambient temperature (operation)	-55 °C ... 125 °C

Mounting type	PCB mounting

Item number	1654811
Packing unit	50 pc
Minimum order quantity	1 pc
Sales key	AB19
Product key	ABNCAB
Catalog page	Page 211 (C-2-2013)
GTIN	4017918989200
Weight per piece (including packing)	13.08 g
Weight per piece (excluding packing)	13.08 g
Customs tariff number	85369010
Country of origin	DE

Compatible products

Accessories

Your advantages

D-SUB 15 connection

Easy assembly

Direct PCB connection

Compatible with IP67 panel-mount frame

EU RoHS
Fulfills EU RoHS substance requirements	Yes
Exemption	6(c)
China RoHS
Environment friendly use period (EFUP)	EFUP-50 An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
EU REACH SVHC
REACH candidate substance (CAS No.)	Lead (CAS: 7439-92-1)
SCIP	6ea2d9bf-28de-4ed5-a6dc-d7fb596e2057

Automate

Connect

Mark, assemble, and install

Supply, charge, and protect

Switch, Measure and Monitor

VS-15-BU-DSUB-LH-B - D-SUB contact insert

1654811

Product details

ECLASS

ETIM

UNSPSC

UL Recognized

Compatible products

Your advantages

Automate

Connect

Mark, assemble, and install

Supply, charge, and protect

Switch, Measure and Monitor

VS-15-BU-DSUB-LH-B - D-SUB contact insert 1654811

Product details

ECLASS

ETIM

UNSPSC

Compatible products

CUC-DST-GPME-S/DSSC15 - D-SUB sleeve housings 1419710

CUC-DST-GPME-A/DSSC15 - D-SUB sleeve housings 1419718

CUC-DST-GZNI-S/DSSC15 - D-SUB sleeve housings 1419724

CUC-DST-GZNI-A/DSSC15 - D-SUB sleeve housings 1419725

VS-15-A - Panel-mount frame 1688036

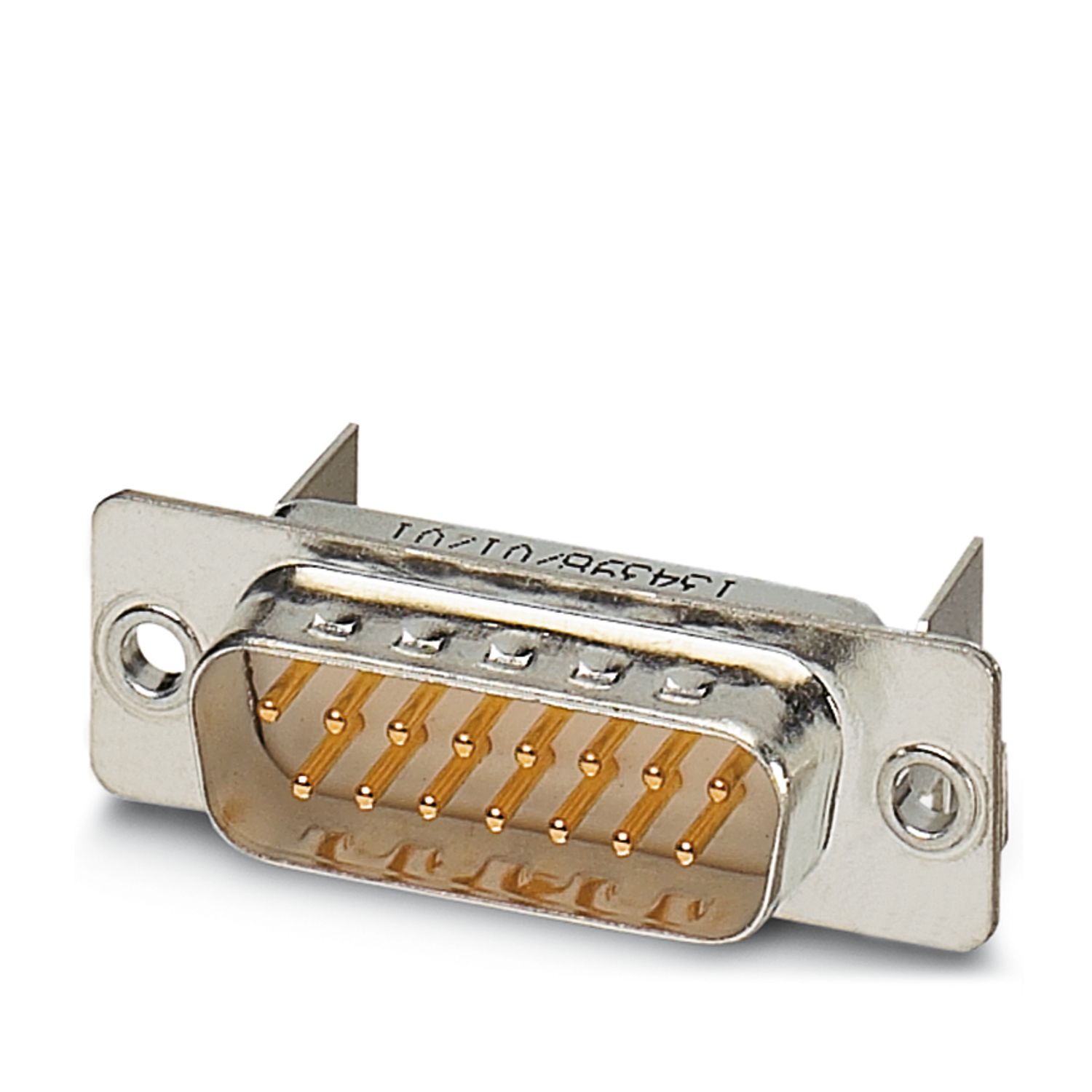

VS-15-ST-DSUB-LH-B - D-SUB contact insert 1654808
