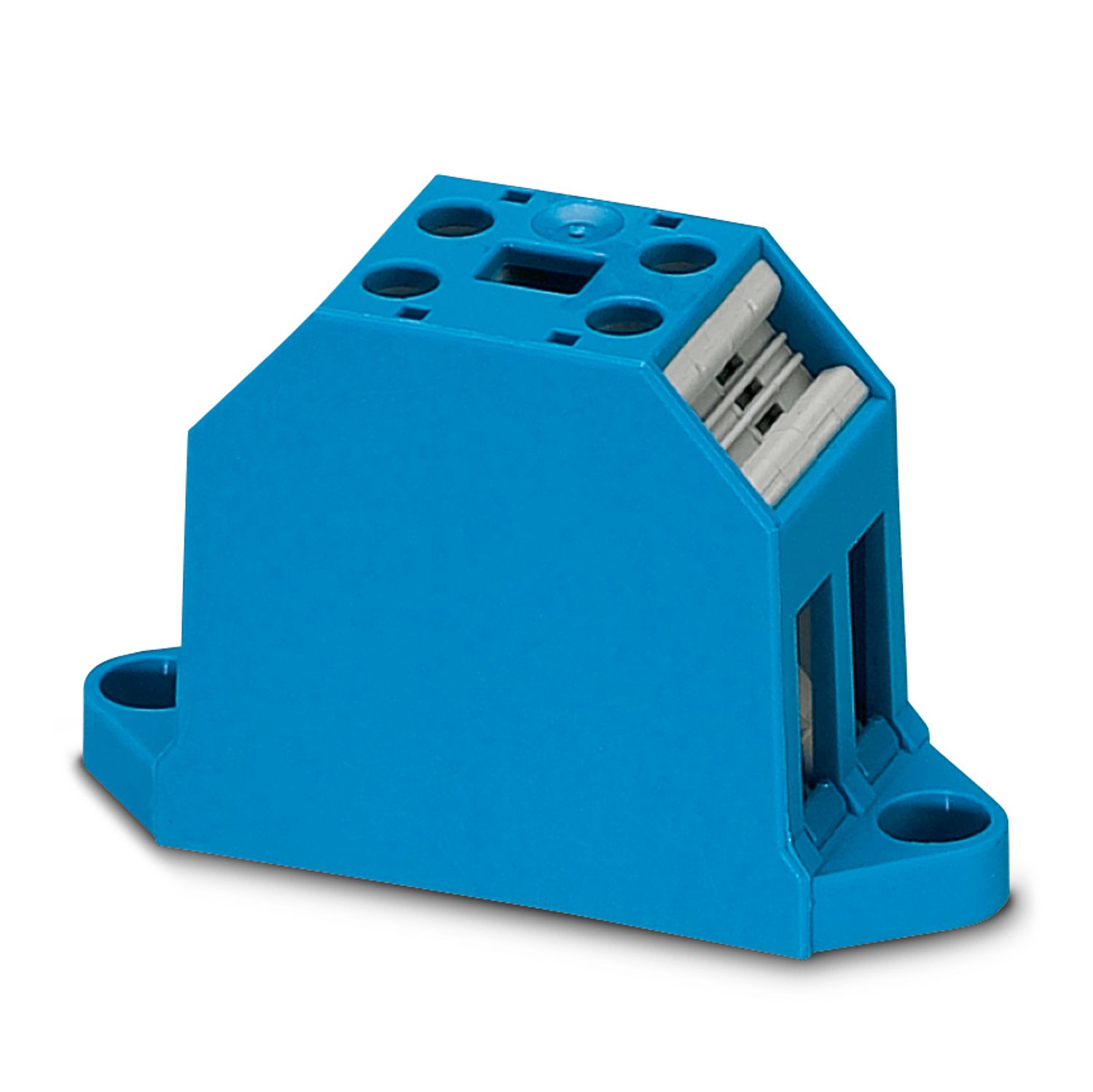

  5. Device terminal block - GE 10/2-BA BU

Device terminal block - GE 10/2-BA BU
2701574

Device terminal block, nom. voltage: 1000 V, nominal current: 57 A, connection method: Screw connection, Rated cross section: 10 mm2, cross section: 0.5 mm2 - 16 mm2, mounting type: direct screw connection, color: blue

Product Details

Product type Feed-through terminal block
Number of positions 1
Number of connections 4
Number of rows 1
Potentials 1
Insulation characteristics
Overvoltage category III
Degree of pollution 3
Rated surge voltage 8 kV
Maximum power dissipation for nominal condition 1.82 W
Number of connections per level 4
Nominal cross section 10 mm²
Level 1 above 1 below 1
Screw thread M4
Tightening torque 1.5 ... 1.8 Nm
Stripping length 10 mm
Conductor cross section solid 0.5 mm² ... 16 mm²
Cross section AWG 20 ... 6
Conductor cross section flexible 0.5 mm² ... 10 mm²
Conductor cross section, flexible [AWG] 20 ... 8
Flexible conductor cross section flexible (ferrule, w/o plastic sleeve) 0.5 mm² ... 10 mm²
Flexible conductor cross section (ferrule with plastic sleeve) 0.5 mm² ... 6 mm²
2 conductors with same cross section, solid 0.5 mm² ... 4 mm²
2 conductors with same cross section, flexible 0.5 mm² ... 4 mm²
2 conductors with same cross section, flexible, with ferrule without plastic sleeve 0.5 mm² ... 2.5 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve 0.5 mm² ... 6 mm²
Nominal current 57 A
Maximum load current 76 A (with 16 mm² conductor cross section)
Nominal voltage 1000 V
Nominal cross section 10 mm²
Width 71.3 mm
Height 40 mm
Length 24.8 mm
Color blue
Flammability rating according to UL 94 V2
Insulating material group I
Insulating material PA
Mechanical data
Open side panel No
Ambient conditions
Ambient temperature (operation) -60 °C ... 105 °C (max. short-term operating temperature RTI Elec.)
Ambient temperature (storage/transport) -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly) -5 °C ... 70 °C
Ambient temperature (actuation) -5 °C ... 70 °C
Permissible humidity (storage/transport) 30 % ... 70 %
Connection in acc. with standard IEC 60947-7-1
Mounting type direct screw connection
Item number 2701574
Packing unit 15 pc
Minimum order quantity 1 pc
Product Key BE1265
GTIN 4046356182423
Weight per Piece (including packing) 67.32 g
Weight per Piece (excluding packing) 67.32 g
Country of origin PL

ECLASS

ECLASS-9.0 27141120
ECLASS-10.0.1 27141120
ECLASS-11.0 27141106

ETIM

ETIM 8.0 EC001284

UNSPSC

UNSPSC 21.0 39121400

EAC

Approval ID: RU C-DE.BL08.B.00534
China RoHS Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
