EC 25 BK
-
Europe connectors
3240184

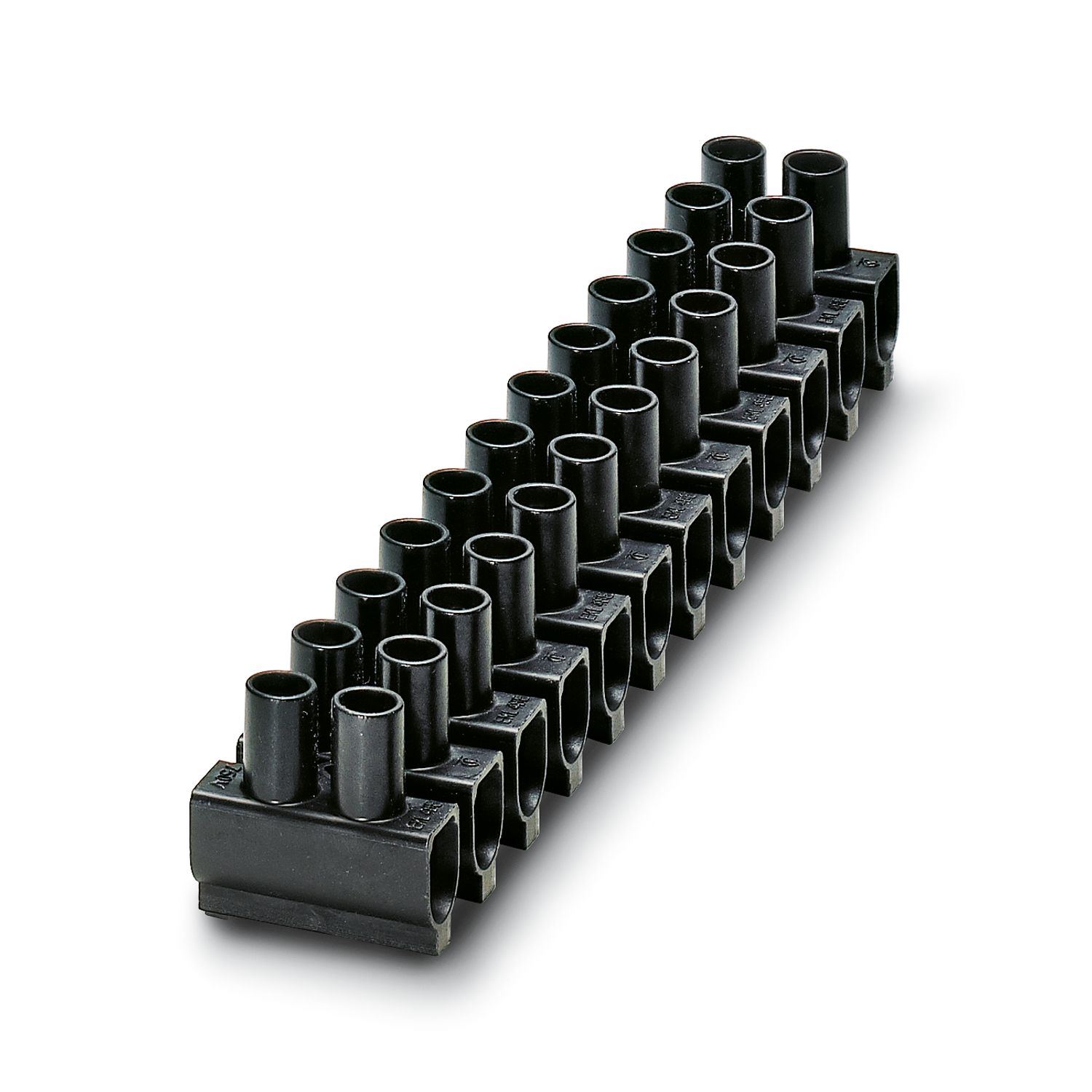

Polypropylene Europe terminal strip, black, for connecting solid conductors and stranded conductors with and without ferrules with a cross section of 10 to 25 mm2
Product details
| Product type | Europe connector |
| Number of positions | 12 |
| Pitch | 16 mm |
| Number of connections | 24 |
| Number of rows | 1 |
| Maximum power dissipation for nominal condition | 3.26 W |
| Nominal cross section | 25 mm² |
| Screw thread | M5 |
| Tightening torque | 2 ... 3 Nm |
| Stripping length | 9 mm |
| Conductor cross section rigid | 10 mm² ... 25 mm² |
| Cross section AWG | 8 ... 4 (converted acc. to IEC) |
| Conductor cross section flexible | 10 mm² ... 25 mm² |
| Conductor cross section, flexible [AWG] | 8 ... 4 (converted acc. to IEC) |
| Conductor cross-section flexible (ferrule without plastic sleeve) | 4 mm² ... 16 mm² |
| Flexible conductor cross section (ferrule with plastic sleeve) | 4 mm² ... 10 mm² |
| 2 conductors with same cross section, solid | 4 mm² ... 6 mm² |
| 2 conductors with same cross section, flexible | 4 mm² ... 6 mm² |
| 2 conductors with same cross section, flexible, with ferrule without plastic sleeve | 2.5 mm² ... 4 mm² |
| 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve | 1.5 mm² ... 6 mm² |
| Nominal current | 101 A (with 25 mm² conductor cross section) |
| Maximum load current | 101 A (with 25 mm² conductor cross section) |
| Nominal voltage | 750 V |
| Nominal cross section | 25 mm² |
| Width | 30 mm |
| Height | 28 mm |
| Depth | 30 mm |
| Drill hole spacing | 16 mm |
| Pitch | 16 mm |
| Color | black |
| Flammability rating according to UL 94 | - |
| Insulating material | PP |
| Mechanical data | |
| Open side panel | No |
| Technical data | |
| Drill hole spacing | 16 mm |
| Mounting type | direct screw connection |
| Item number | 3240184 |
| Packing unit | 1 pc |
| Note | Made to order (non-returnable) |
| Sales key | BE73 |
| Product key | BE7321 |
| Catalog page | Page 559 (C-3-2019) |
| GTIN | 4046356457880 |
| Weight per piece (including packing) | 113.38 g |
| Weight per piece (excluding packing) | 109.86 g |
| Customs tariff number | 85369010 |
| Country of origin | AT |
ETIM
| ETIM 8.0 | EC001284 |
UNSPSC
| UNSPSC 21.0 | 39121400 |
| EU RoHS | |
| Fulfills EU RoHS substance requirements | Yes |
| Exemption | 6(c) |
| China RoHS | |
| Environment friendly use period (EFUP) |
EFUP-50
An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
|
| EU REACH SVHC | |
| REACH candidate substance (CAS No.) | Lead (CAS: 7439-92-1) |
| SCIP | 98c2346f-4b52-40a1-acaf-e175749a068a |
