EEM-MA770 - Measuring instrument

2907945

Multi-functional energy measuring device with integrated Modbus/TCP interface for measuring electrical parameters in low-voltage installations up to 690 V.

Free download available. Downloads

Where Can I Buy This Item?

Product details

Product type	Energy measuring device
Product family	EMpro
Insulation characteristics
Overvoltage category	III (300 V)
Pollution degree	2

Electrical isolation	IEC 61010-1 (Overvoltage category III at 300 V ACOvervoltage category II at 600 V AC)
	IEC 61010-1 (Overvoltage category III at 300 V ACOvervoltage category II at 600 V AC)
	IEC 61010-1 (Measurement category III at 300 V ACMeasurement category II at 600 V AC)
Test voltage	4 kV AC (50 Hz, 60 s)
Maximum power dissipation for nominal condition	10 VA
Mains type	3-phase (3 or 4-conductor), 2-phase (2-conductor), and single-phase (1-conductor)
Supply
Supply voltage range	100 V AC ... 400 V AC (±20 %)
	150 V DC ... 250 V DC (±20 %)
Power consumption	≤ 4 W
Nominal frequency	50 Hz ... 60 Hz (AC sine)

General
Measuring principle	True r.m.s. value measurement (TRMS)
Measured value	AC sine (50/60 Hz)
Acquisition of harmonics	up to 63rd harmonic
Description of the input	Digital input in accordance with IEC/EN 61131-2 (type 3)
Number	1
Voltage input signal	24 V DC
	0 V DC ... 30 V DC
Current input signal	2 mA ... 15 mA
Protection	250 mA (fast-blow)
Measurement: Voltage
Input name	Voltage measuring input V1, V2, V3
Input voltage range direct	35 V AC ... 690 V AC (Phase/Phase)
	20 V AC ... 400 V AC (Phase/neutral conductor)
Input voltage range via external transformers	60 V AC ... 2000000 V AC (primary)
	60 V AC ... 400 V AC (secondary)
Surge voltage capacity	760 V AC (Phase/Phase)
Precision	0.2 %
Power consumption	< 2 VA
Measurement: Current
Input name	Current measurement I1, I2, I3
Input current	1 A (secondary)
	5 A (secondary)
Current measuring range	1 A ... 20000 A (primary)
Overload capacity	6 A (I_max)
Response threshold from measuring range nominal value	10 mA (1 A)
	50 mA (5 A)
Precision	0.2 %
Current overload	50 A for 1 s
Power consumption	< 0.5 VA
Measurement: Power
Precision	0.5 %
Active energy (IEC 62053-22)	Class 0.5 S
Reactive power (IEC 62053-23)	Class 2
ANSI C12.20	Class 0.5 S

Output description	Digital output in accordance with IEC/EN 61131-2 (type 3)
Number	1
Current output signal	≤ 100 mA
Voltage output signal	24 V DC
Protection	250 mA (fast-blow)

Current / voltage / supply

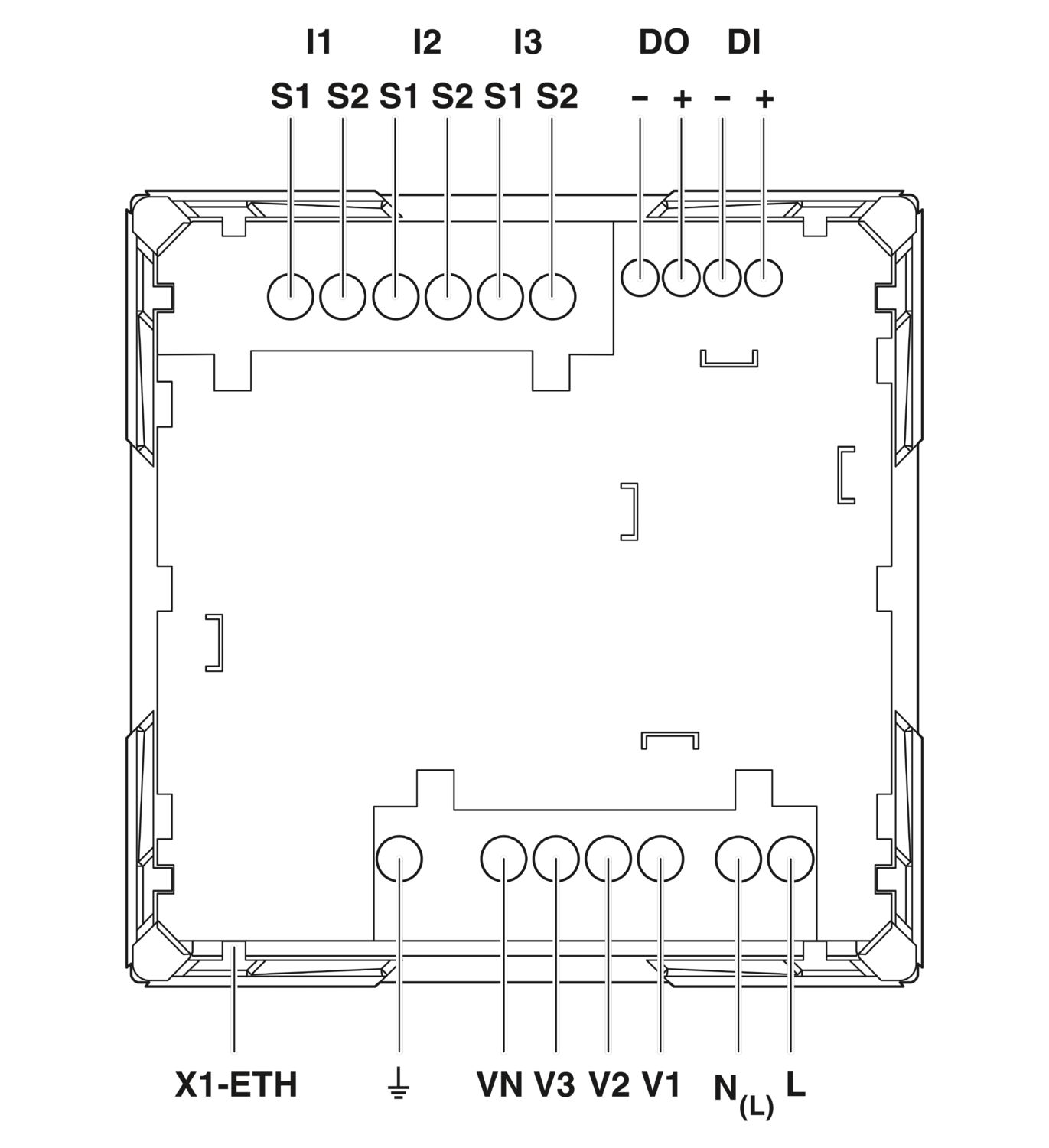

Connection method	Screw connection
Stripping length	8 mm
Screw thread	M3
Conductor cross section rigid	0.2 mm² ... 6 mm²
Conductor cross section flexible	0.2 mm² ... 4 mm²
Conductor cross section AWG	24 ... 10
Tightening torque	0.5 Nm ... 0.6 Nm
Digital I/O / communication
Connection method	Screw connection
Stripping length	7 mm
Screw thread	M3
Conductor cross section rigid	0.14 mm² ... 2.5 mm²
Conductor cross section flexible	0.14 mm² ... 1.5 mm²
Conductor cross section AWG	26 ... 14
Tightening torque	0.5 Nm ... 0.6 Nm

Data: Network interface
Communication protocol	Modbus/TCP
	REST
Connection method	RJ45

Width	96 mm
Height	96 mm
Depth	58 mm

Ambient conditions
Degree of protection (Housing)	IP20 (Housing)
Degree of protection (Display)	IP54 (Display (+ EEM-MA-IP))
Ambient temperature (operation)	-10 °C ... 55 °C
Ambient temperature (storage/transport)	-25 °C ... 70 °C
Altitude	≤ 2000 m
Max. permissible relative humidity (operation)	≤ 95 % (non-condensing)

CE
Certificate	CE-compliant
UKCA
Certificate	UKCA-compliant
UL, USA/Canada
Identification	UL/C-UL Listed UL 61010-1
UL data
Operating mode	Indoor use
UL data
Operating mode	Indoor use

Mounting type	Panel mount
Mounting position	Front panel installation, horizontal

Commercial data

Item number	2907945
Packing unit	1 pc
Minimum order quantity	1 pc
Sales key	C446
Product key	CK4C21
Catalog page	Page 202 (C-5-2019)
GTIN	4055626260389
Weight per piece (including packing)	537.73 g
Weight per piece (excluding packing)	522.3 g
Customs tariff number	90303100
Country of origin	DE

Classifications

Approvals

Environmental product compliance

Compatible products

Accessories

ECLASS-11.0	27142330
ECLASS-12.0	27142330
ECLASS-13.0	27142330


REACh SVHC	Lead 7439-92-1

China RoHS	Environmentally Friendly Use Period = 50 years
		For information on hazardous substances, refer to the manufacturer’s declaration available under “Downloads”
