HC-M-EMV-MOD-ST
-
Contact insert module
1678567

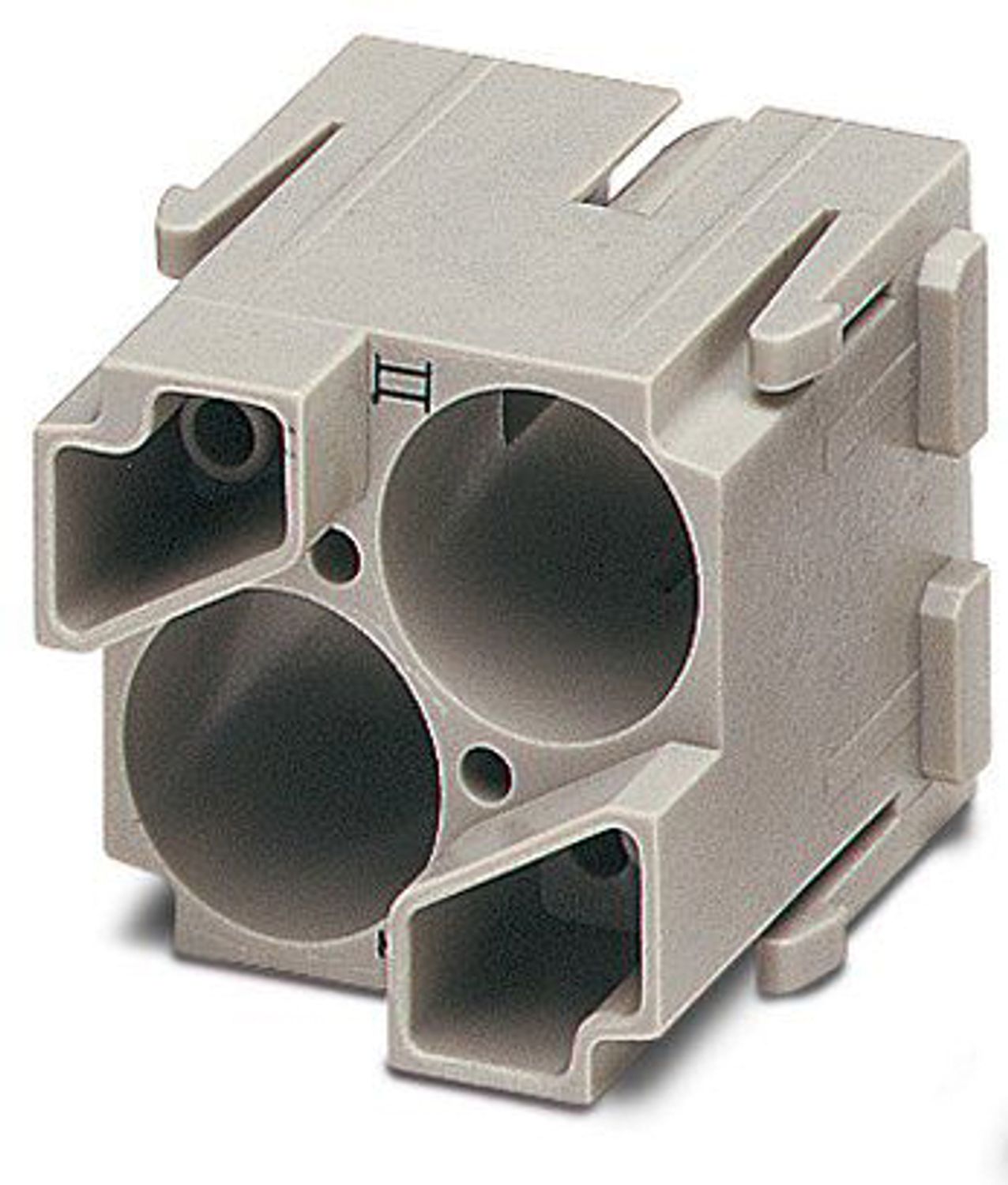

HEAVYCON series M EMC contact insert module, for using two HC-M-EMV-ST/3-9.5 EMC connectors (pin version, each 4-pos.)
Product details
| General | For HEAVYCON housing type B6 to B48, HC-M-MHR... hinged retaining frame required |
| Series | HC-M-EMV |
| Application | Data/signal |
| Connection profile | 2 |
| Number of module slots | 2 |
| Number of slots | 2 |

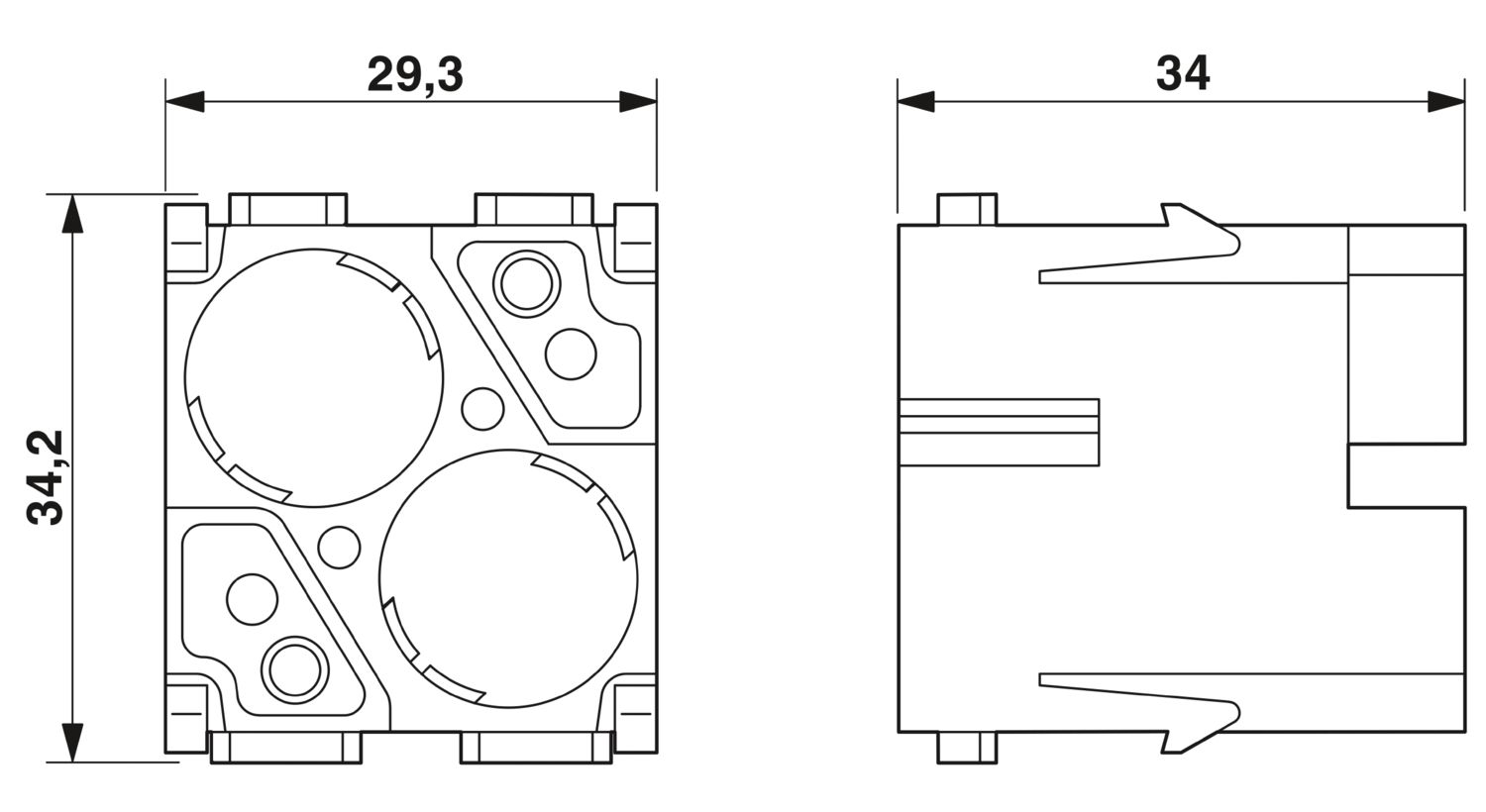

| Dimensional drawing |
|
| Width | 34.2 mm |
| Height | 34 mm |
| Length | 29.4 mm |
| Flammability rating according to UL 94 | V0 |
| Contact carrier material | PC |
| Mechanical data | |
| Insertion/withdrawal cycles | ≥ 500 |
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 125 °C |
| Assembly note | Housing height ≥ 72 mm. Plug-in connections may only be operated only when there is no load/voltage. |
| Plastic module for the HC-M-EMV-ST/3-9.5 EMC connector |
