ECS-SKT-122X169-S-UV-9005
-
Electronics housing
1457013

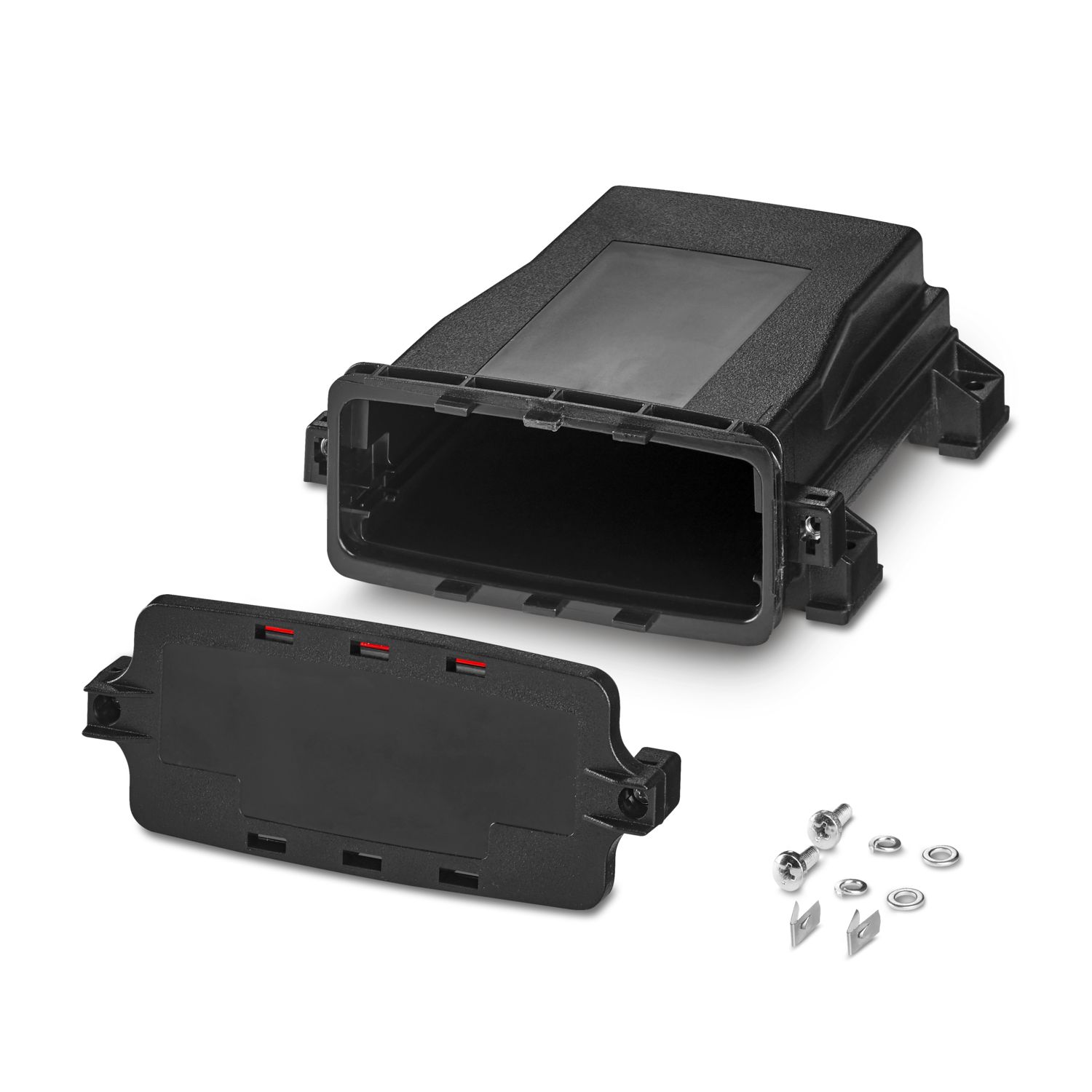

Empty enclosure for wall or mast mounting, black (9005), modular electronics housing with front plate, for outdoor applications, degree of protection: IP66/IP67/IP68/IP69, width: 164 mm, height: 180 mm, depth: 64 mm, PCB surface: 13160 mm2
Product details
| Assembly note | Please observe the application note in the download area. |
| Degree of protection | The specification for IP protection applies to the item combination ECS-B-... in conjunction with an unaltered ECS-P...-B front panel. |
| Recommendation | Further information and detailed dimensions are available in the download area. |
| Product type | Stackable housing set |
| Housing type | Outdoor housing |
| Housing series | ECS |
| Product family | ECS..122X..S.. |
| Type | Screw locking mechanism |
| Ventilation openings present | no |
| Battery compartment | no |
| Ventilation | integrated pressure compensation membrane |
| Dimensional drawing |
|
| Width | 163.8 mm |
| Height | 179.8 mm |
| Depth | 62.1 mm |
| PCB design | |
| PCB thickness | 1.57 mm ... 2.36 mm |
| Color (Housing) | black (RAL 9005) |
| Material (Housing) | PC |
| Flammability rating according to UL 94 | V0 |
| Power dissipation single housing for 20 °C | |
| Ambient temperature | 20 °C |
| Reduction factor | 1 |
| Mounting position | vertical |
| Power dissipation | 19 W |
| Ambient conditions | |
| Degree of protection | IP66/IP67/IP68/IP69 |
| Max. IP code to attain | IP69 |
| Max. NEMA code to attain | 6 |
| Impact strength | IK08 |
| Ambient temperature (operation) | -40 °C ... 100 °C |
| Ambient temperature (storage/transport) | -40 °C ... 100 °C |
| Number of PCB holders | 1 |
| Type of PCB mount | Bolt mounting |
| Thickness of the PCB | 1.57 mm ... 2.36 mm |
| Mounting type | Wall or panel mount. Pole mount with accessory. |
| Type of packaging | packed in cardboard |
| Outer packaging type | Carton |
Your advantages
Housing design supports the installation of a range of PCB thicknesses for high application diversity
Integrated pressure compensation membrane for fluctuating ambient pressures
Optional accessories for wall and mast mounting
Proven PCB connection technology
Integrated tamper protection
Effective protection of electronics against thermal and mechanical influences
Suitable for outdoor/indoor applications
