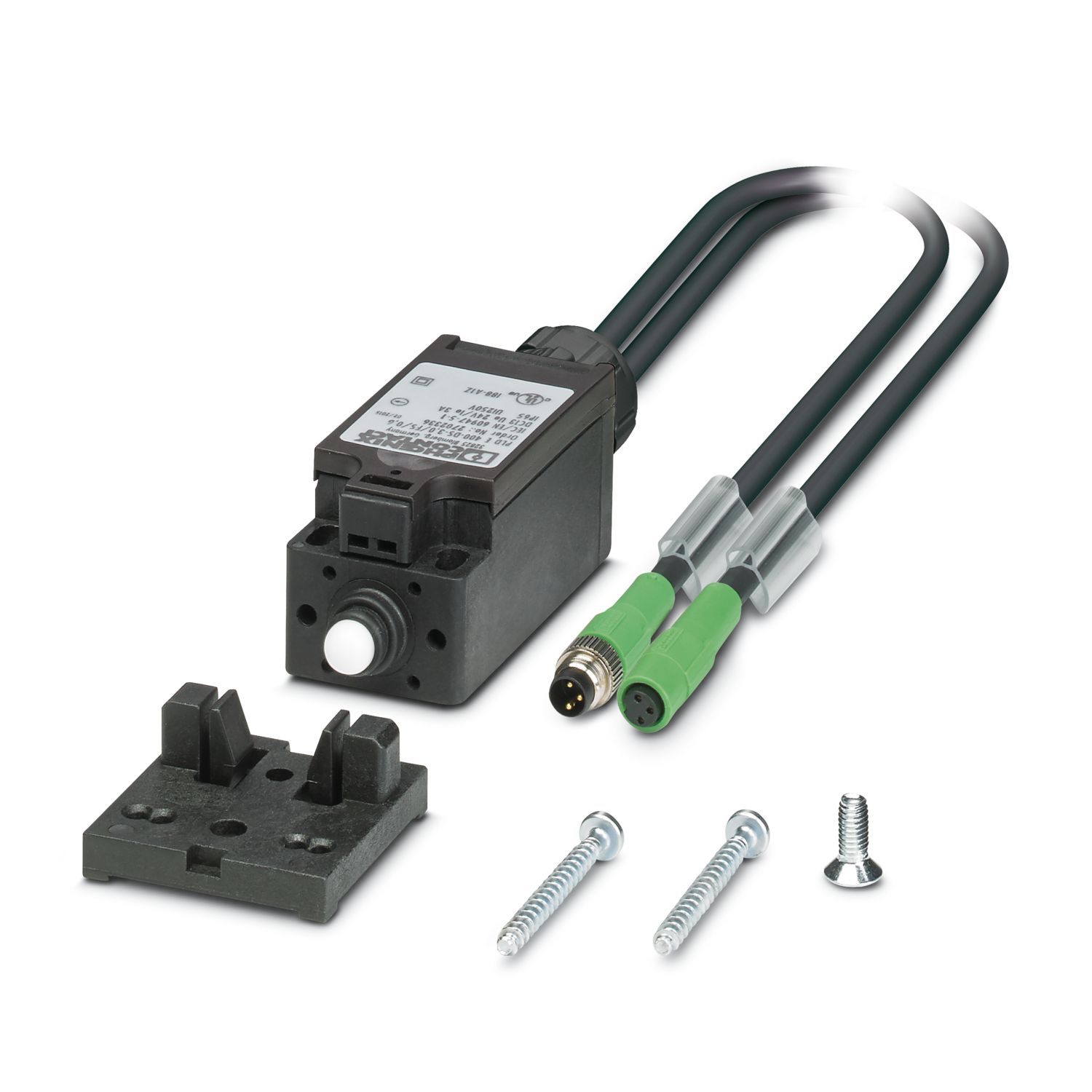

Door position switch with 1 m cable with M8 plug and 0.6 m cable with M8 socket (Snap-in), including mounting accessories
This door position switch is used to automatically switch the class 400 PLD enclosure lights on or off when opening or closing the control cabinet door. If the enclosure lights are connected in series, this door position switch is only to be used from the second light onward.
| Product type | Door position switch |
| Mounting position | any |
| Mechanical service life | 10x 106 cycles |
| Rated voltage | 24 V DC |
| Rated current | 3 A |
| Dimensional drawing |
|
| Width | 31 mm |
| Height | 30.5 mm |
| Depth | 98.3 mm |
| Note on dimensions | Without connected cables |
| Color | black |
| Material | Thermoplastic, fiber-reinforced |
| PUR |
| Ambient conditions | |
| Degree of protection | IP54 |
| Ambient temperature (operation) | -30 °C ... 80 °C |
| Protection class | II |
| Mounting position | any |
