SACB-8/ 8-L-M23 P12
-
Distributor box
1491744

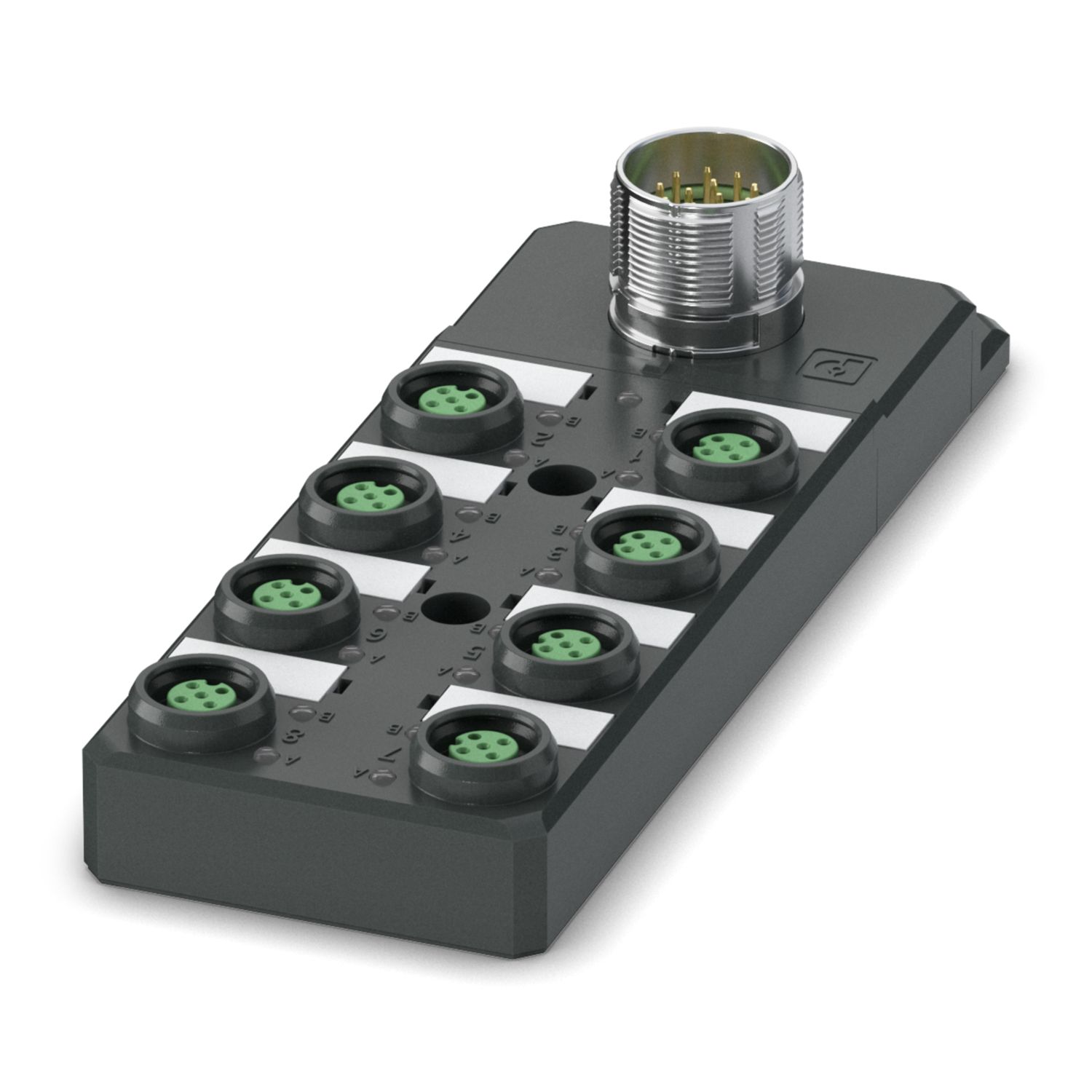

Distributor box, application: Standard, connection method: M12 socket / M12 PUSH-PULL female connector, number of slots: 8, number of positions: 4, coding: A, slot assignment: single, status display: yes, PNP; master cable connection: M23 plug-in connection (for standard and ONECLICK fast-locking system) 90°, shielding: no
Product details
| Assembly note | NOTE: Observe the permissible bending radii when routing cables, since the degree of protection may be at risk if the bending forces are too high. Reduce mechanical loads upstream of the connector, e.g., by using cable ties. |
| Note on application | Unused slots are to be sealed off prior to commissioning. Suitable sealing elements are to be found under "Accessories". |
| Product type | Distributor box |
| Application | Standard |
| Number of positions | 4 |
| Number of slots | 8 |
| Coding | A |
| Max. operating voltage Umax | 30 V DC |
| Nominal voltage UN | 24 V DC |
| Rated current, total | 12 A |
| Max. current carrying capacity per path | 2 A |
| Current carrying capacity per slot | 4 A |
| Conductor connection | |
| Sensor/actuator connection system | M12 socket |
| Pin assignment | |
| Slot/position = Wire color or connection | 1 / 4 (A) = 1 |
| 2 / 4 (A) = 2 | |
| 3 / 4 (A) = 3 | |
| 4 / 4 (A) = 4 | |
| 5 / 4 (A) = 5 | |
| 6 / 4 (A) = 6 | |
| 7 / 4 (A) = 7 | |
| 8 / 4 (A) = 8 | |
| 1-8 / 1 (+ 24 V) = 11 | |
| 1-8 / 3 (0 V) = 9+10 | |
| 1-8 / 5 (PE) = 12 | |
| Status display present | yes |
| Dimensional drawing |
|
| Width | 56 mm |
| Height | 35.2 mm |
| Length | 160 mm |
| Material Housing | PBT |
| Flammability rating according to UL 94 | V0 |
| Seal material | FKM |
| Contact material | CuSn |
| Contact surface material | Ni/Au |
| Contact carrier material | PA |
| Material of contact, master cable side | CU alloy |
| Material of contact surface, master cable side | gold-plated |
| Connection method | M23 plug-in connection (for standard and ONECLICK fast-locking system) |
| Ambient conditions | |
| Degree of protection | IP65 |
| IP67 | |
| Ambient temperature (operation) | -25 °C ... 80 °C |
Your advantages
Safety in the field, thanks to molded housing and high degree of protection
Fast, secure installation of connectors with the push-pull fast-locking system in accordance with IEC 61076-2-010
