Diode module, with 4 diodes, individually wired, diode type 1N 5408
Product details
Product type
Diode module
Insulation characteristics
Pollution degree
2
Diode
Description of the input

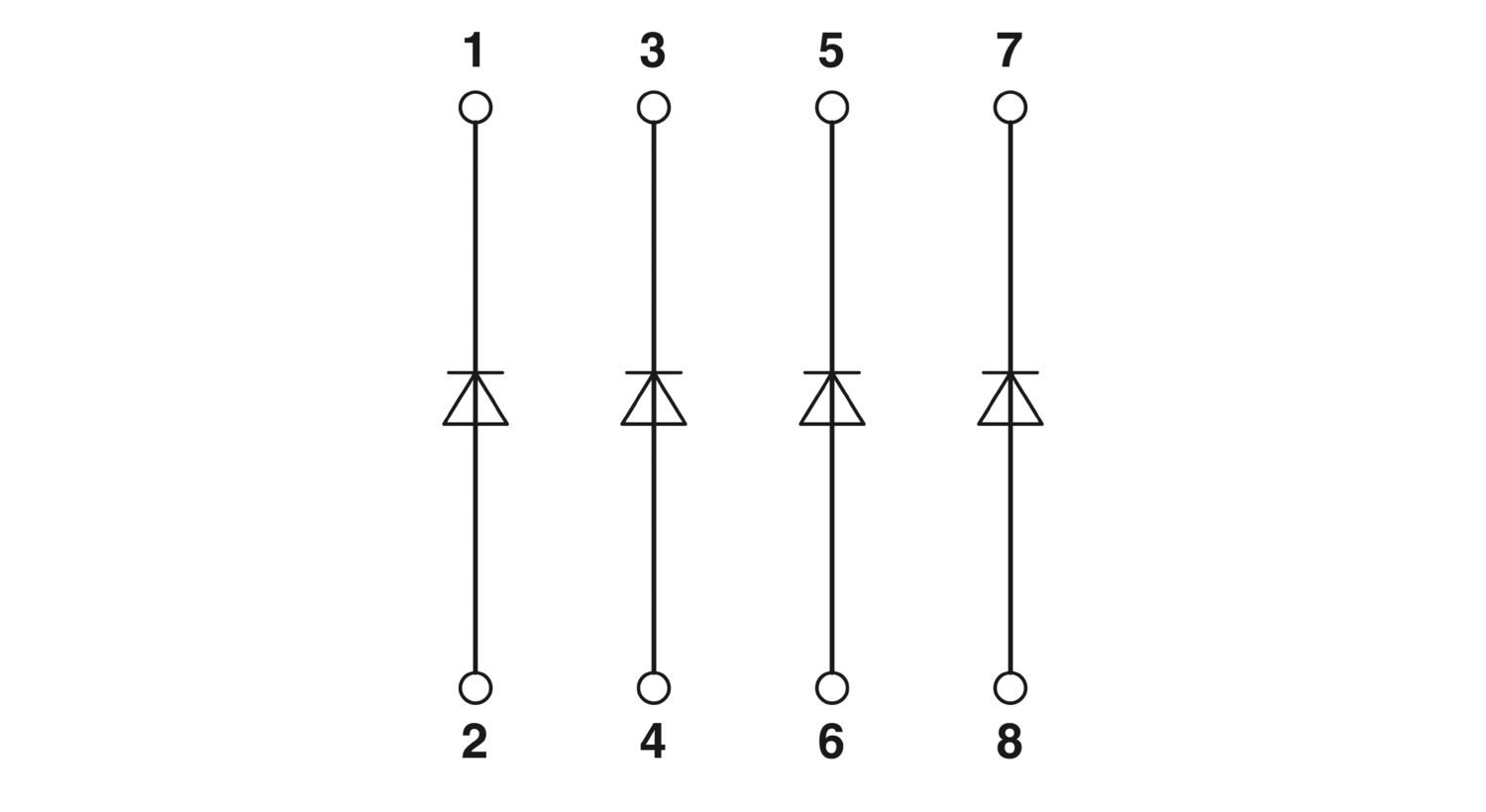

4 diodes, individually connected
Diode type
1 N 5408
Max. operating voltage Umax
250 V AC
Peak reverse voltage per diode
1000 V
Reverse current per diode
10 µA
Conducting state voltage per diode
approx. 0.8 V
Conducting state current per diode
1.5 A (with single load)
1 A (with simultaneous loads)
Connection method
Screw connection
Stripping length
8 mm
Screw thread
M3
Conductor cross section rigid
0.2 mm² ... 4 mm²
Conductor cross section flexible
0.2 mm² ... 2.5 mm²
Conductor cross section AWG
24 ... 12
Width
22.5 mm
Height
75 mm
Depth
55 mm
Color
green (RAL 6021)
Ambient conditions
Ambient temperature (operation)
-20 °C ... 50 °C
Ambient temperature (storage/transport)
-40 °C ... 70 °C
CE
Certificate
CE-compliant
Note
and EN 61326
Standards/regulations
DIN EN 50178
Mounting type
DIN rail mounting
Assembly note
in rows with zero spacing
Mounting position
any
Item number
2952790
Packing unit
10 pc
Minimum order quantity
1 pc
Sales key
C440
Product key
DK66M1
Catalog page
Page 266 (C-5-2019)
GTIN
4017918084486
Weight per piece (including packing)
47.25 g
Weight per piece (excluding packing)
47.25 g
Customs tariff number
85411000
Country of origin
DE
ECLASS
ECLASS-11.0
27371010
ECLASS-12.0
27371010
ECLASS-13.0
27371010
ETIM
ETIM 9.0
EC000683
UNSPSC
UNSPSC 21.0
32151500
EAC
Approval ID: RU*DE*08.B.01841/19
EU RoHS
Fulfills EU RoHS substance requirements
Yes
Exemption
6(c), 7(a)
China RoHS
Environment friendly use period (EFUP)
EFUP-50
An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
