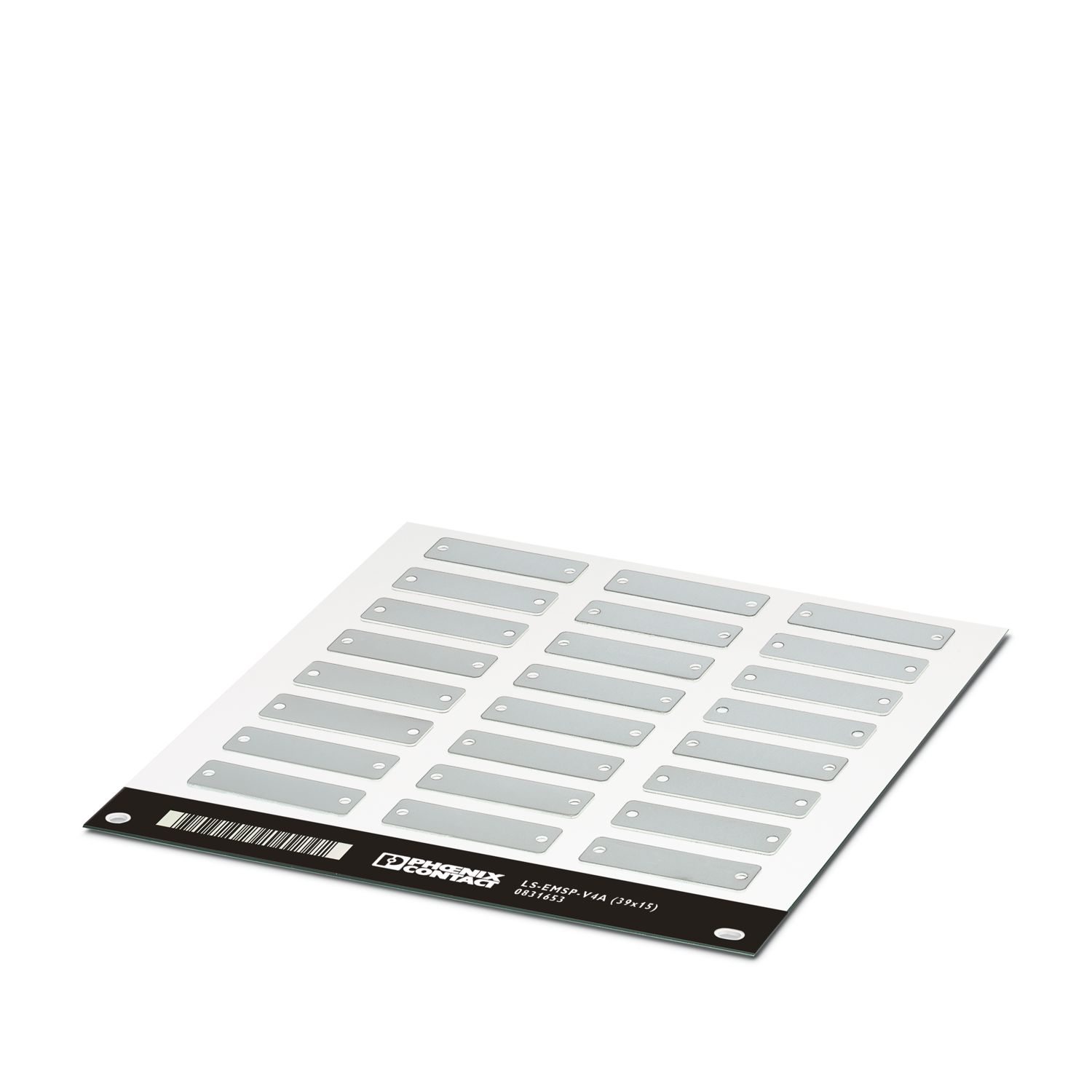

LS-EMSP-V4A (39X15) - Device marker - 0831653

Product properties

Product type	Gerätemarker
Marking
Number of individual labels	24
Identification technology	Direct laser marking

Dimensions

Width	48.70 mm
Height	14.80 mm
Depth	0.50 mm

Material specifications

RoHS compliant	yes
Color	silver-colored
Material	V4A (1.4404; AISI 316L)
Components	free from silicone, halogen, and cadmium

Environmental and real-life conditions

Test for substances that would hinder coating with paint or varnish
Result	Test passed
Specification	DIN EN ISO 1518-1:2019-10 (following)
Tesafilm test
Specification	DIN EN ISO 2409:2013 (following)
Result	Test passed
UV resistance
Specification	ISO 4892-2:2013-03 (following)
Result	Test passed
Test duration	96 h
Procedure	Artificial irradiation.
Specification	IEC 60068-2-2:2007-07
Result	Test passed
Procedure	Test Bb
Duration	240 h
Temperature for testing	350 °C
Temperature resistance
Specification	ANSI/UL 969-2018:03 (following)
Test duration	240 h
Rating 225 °C (250 °C)	Test passed
Wipe resistance of inscriptions
Specification	DIN EN 61010-1 (VDE 0411-1):2011-07
Specification		DIN EN 62208 (VDE 0660-511):2012-06 (in parts)
Isopropyl [CAS No. 67-63-0]	Test passed
n-Hexane [CAS No. 110-54-3]	Test passed
Water + Petroleum ether [CAS No. 64742-82-1]	Test passed
Sodium hydroxide 0.1 mol/l [CAS No. 1310-73-2]	Test passed
Ethanol (99 %) [CAS No. 64-17-5]	Test passed
Acetone (99 %) [CAS No. 67-64-1]	Test passed
Specification	ISO 175:2010 (following)
Test duration	168 h
Ethanol (99 %) [CAS No. 64-17-5]	Test passed
Acetone (99 %) [CAS No. 67-64-1]	Test passed
IRM 901	Test passed
IRM 902	Test passed
Testing in a condensation changing climate in the presence of sulfur dioxide
Specification	DIN 50018:2013-05 (following)
Result	Test passed
Climate level	AHT 1.0 S
Cycles	2
Salt spray test
Specification	DIN EN 60068-2-11:2000-02
Result	Test passed
Test duration	96 h
Salt spray test
Specification	ISO 9227:2017-03
Result	Test passed
Test duration	336 h
Ambient conditions
Ambient temperature (operation)	-80 °C ... 350 °C
Recommended storage conditions	23 °C/50 % relative humidity. Storage in a dry and dark place in the original packaging is recommended.
Recommended ambient temperature (storage/transport)	23 °C
Recommended humidity (storage/transport)	50 %
Shelf life	24 months

Standards and regulations

Wipe resistance	DIN EN 61010-1 (VDE 0411-1)

Mounting

Item number	0831653
Packing unit	5 pc
Minimum order quantity	5 pc
Sales key	BG19
Product key	BG241D
GTIN	4046356925914
Weight per piece (including packing)	113.94 g
Weight per piece (excluding packing)	104.28 g
Customs tariff number	73269098
Country of origin	CN

ECLASS-13.0	27281103
ECLASS-15.0	27281103

EU RoHS
Fulfills EU RoHS substance requirements	Yes (No exemptions)
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%
